CRL-U.S. Aluminum Series 400 Clear Anodized Entrance Door, Butt-Hinge
CRL-U.S. Aluminum Series 400 Clear Anodized Entrance Door, Butt-Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE41411
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass (by others) with an option for 1" (25 mm) tempered insulating unit; glass not included
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders

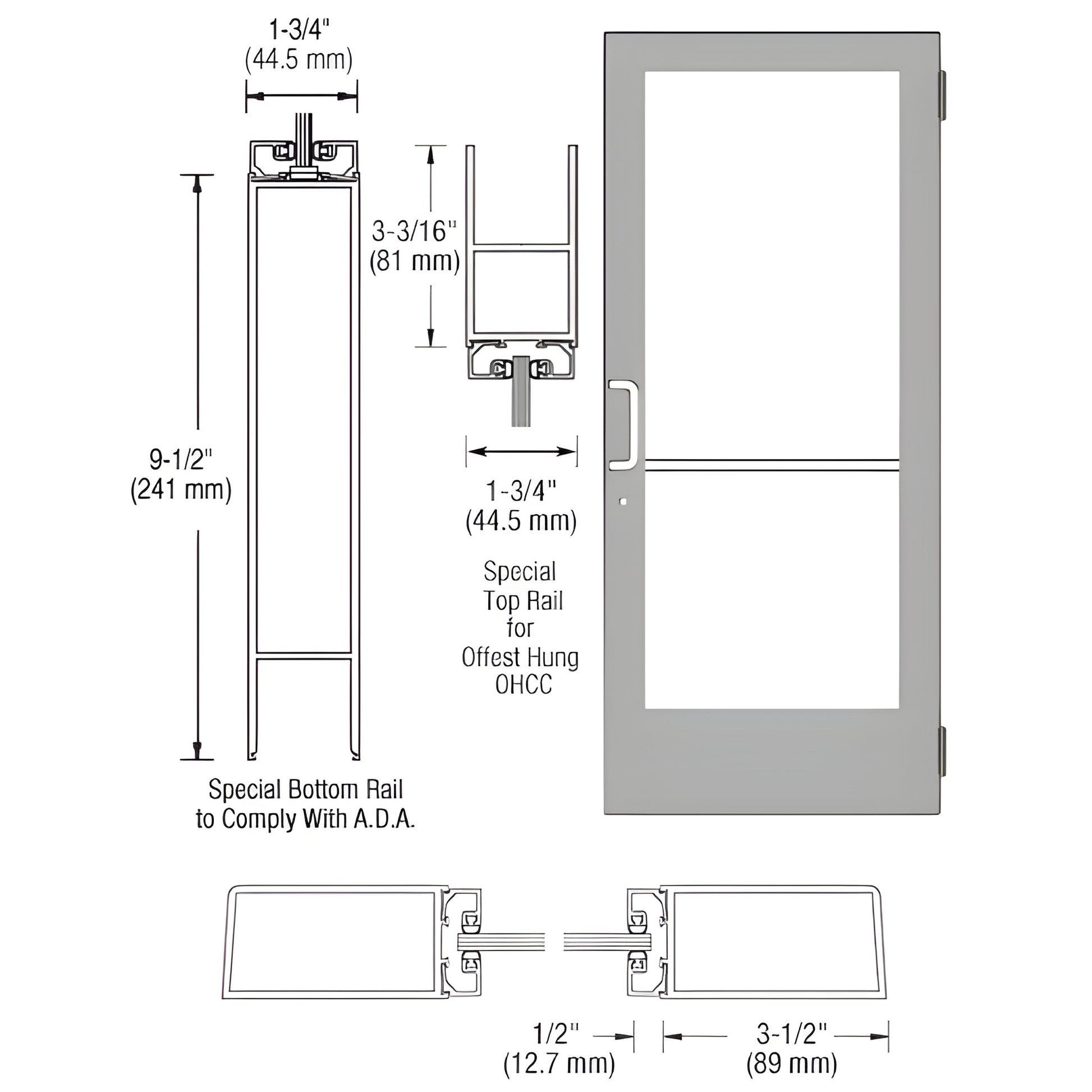

This Custom Medium Stile Entrance Door (SKU DE41411) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed as an ADA-compliant entrance door option, it ships with stiles prepared for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass. The unit is engineered for custom medium stile door applications and is ready for a wide range of optional hardware configurations.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
For custom hardware options or to confirm ADA compliance for your opening, contact CRL Customer Service or order SKU DE41411 today.
Specifications
BIM Objects - rvt
