CRL-U.S. Aluminum Series 400 Clear Anodized Geared Hinge Door Pair
CRL-U.S. Aluminum Series 400 Clear Anodized Geared Hinge Door Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ42811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes active and inactive leaf with all standard concealed vertical rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications

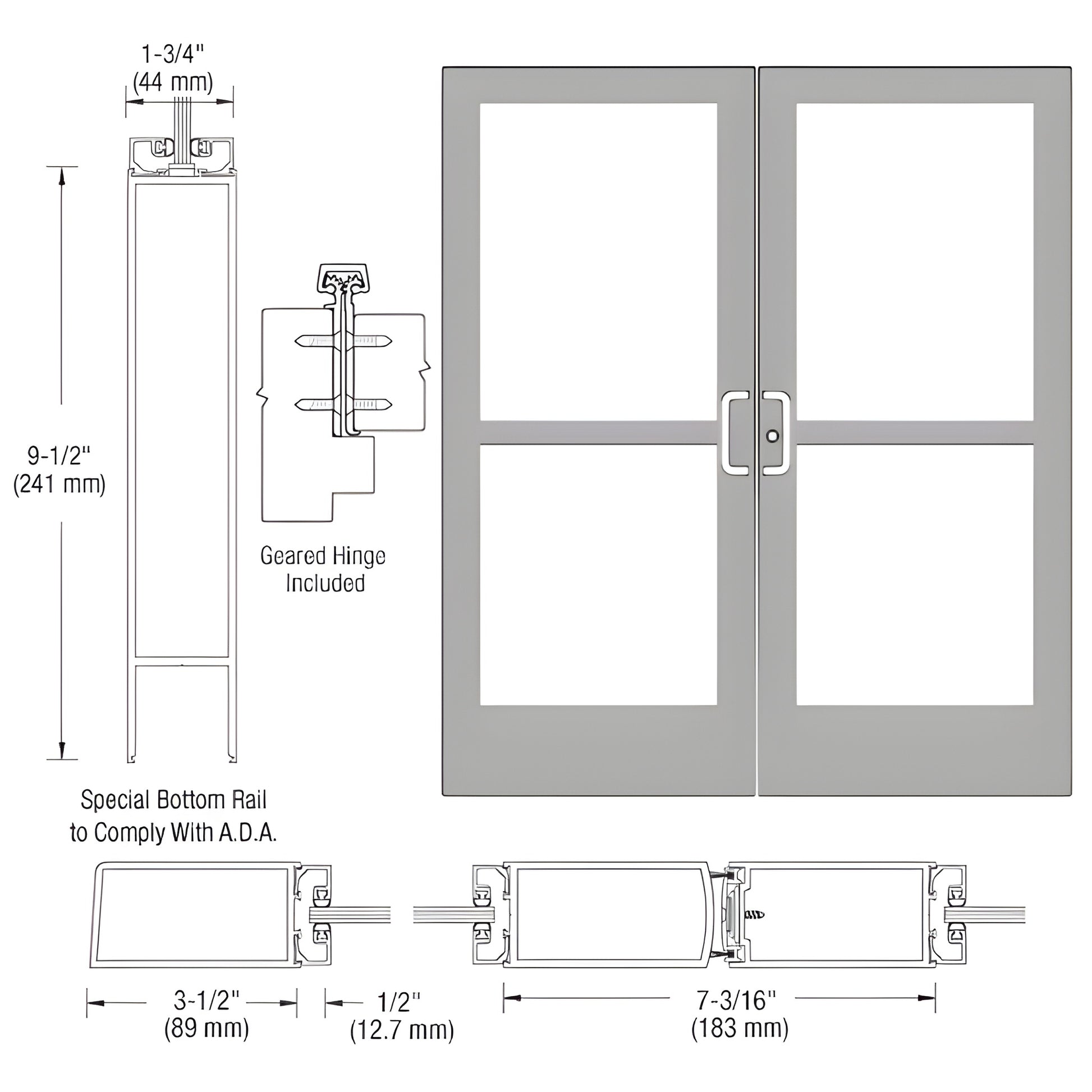

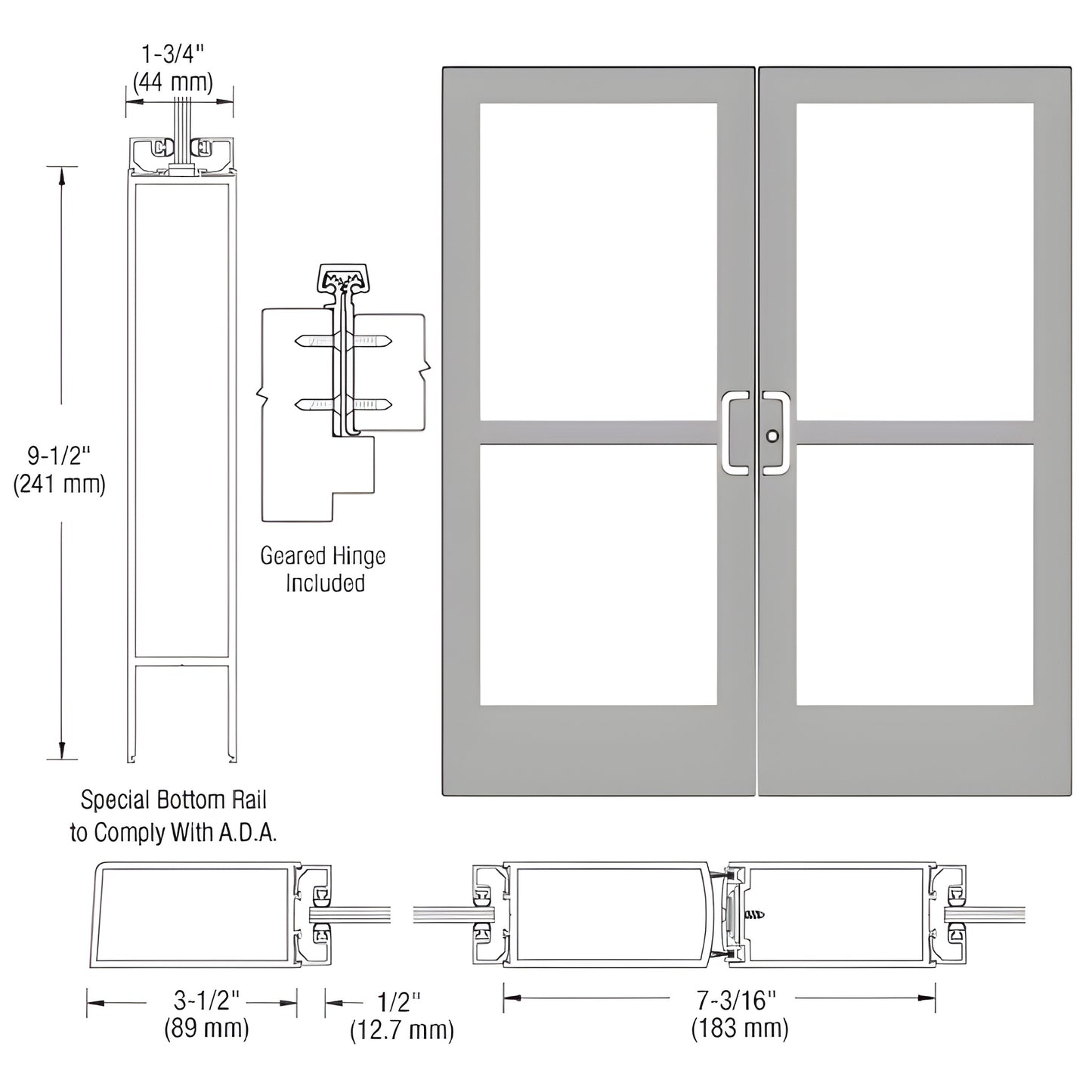

This CRL Custom Medium Stile Entrance Door (SKU CZ42811) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard preparations include stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The door is designed for custom fabrication to accommodate specialty hardware and storefront installations.
Customer installation required for protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage.
For custom storefront and commercial entrance applications, order SKU CZ42811 or contact CRL for a quote and lead time.
Specifications
BIM Objects - rvt
