CRL-U.S. Aluminum Series 400 Clear Anodized Offset Geared Hinge Door

• Includes standard push/pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders
• 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.; door widths under 36" (914 mm) may not pass A.D.A. inspection
• Custom fabricated to accept a wide range of optional hardware applications (gear hinge stiles included)
• Accepts 1/4" (6 mm) tempered glass (by others) with optional 1" (25 mm) tempered insulating unit — glass not included

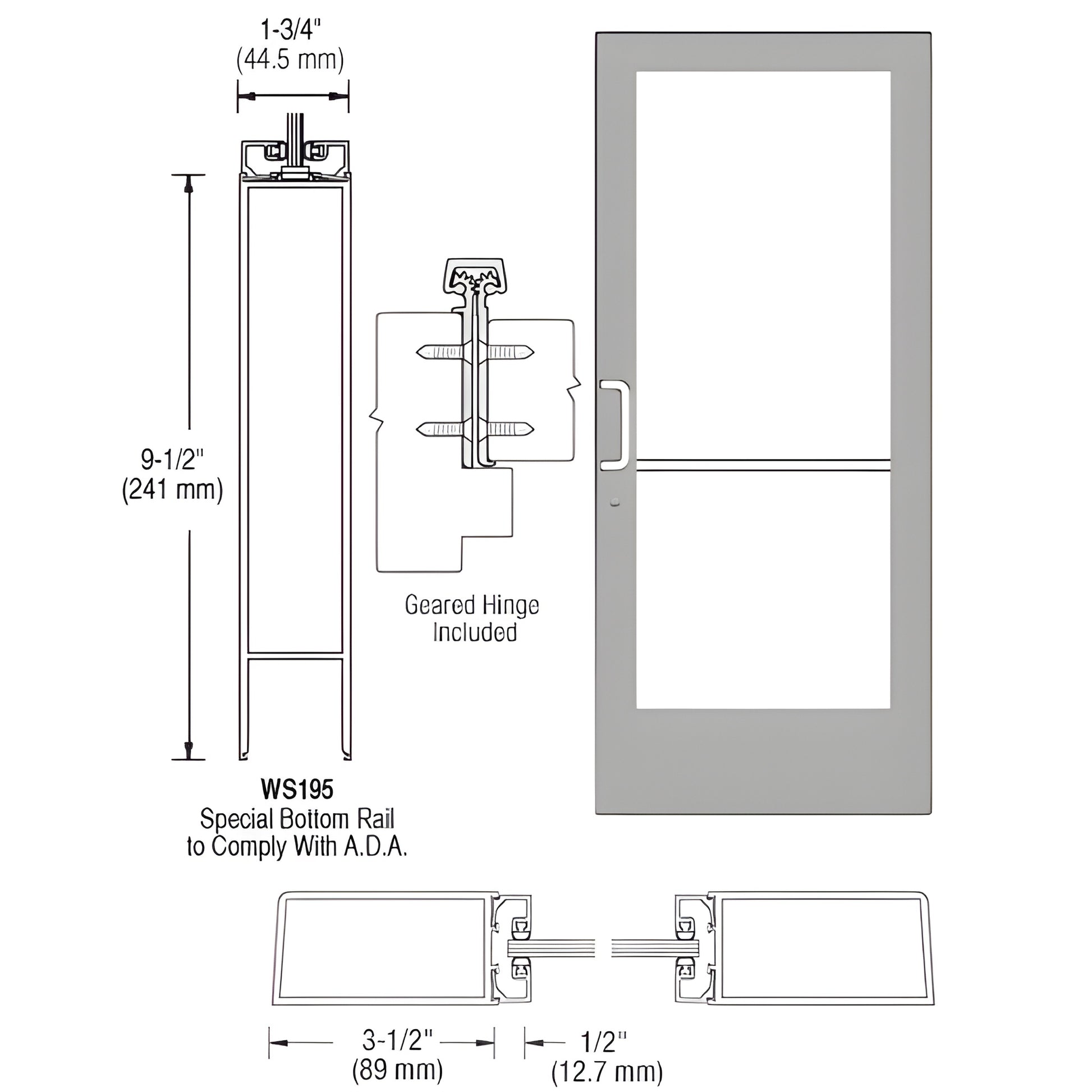

Custom Medium Stile Entrance Door (SKU: DE41811) — Constructed with 3-1/2" (89 mm) stiles, 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for commercial storefront and ADA-conscious applications, this medium stile door ships with protruding hardware boxed separately to prevent transit damage and requires on-site installation of those handles and pivots.

Key differentiators: ready for custom hardware installs, supplied with MS Hookbolt lock and keyed-alike cylinders for simplified master keying, and engineered to accommodate both thin tempered glass and thicker insulated glass units. Ideal for architects, contractors, and facility managers specifying commercial entrance doors that require flexible hardware options and ADA compatibility.

Order DE41811 today or contact us for custom hardware options and ADA guidance.
