CRL-U.S. Aluminum Series 400 Custom Butt Hinged Doors, White Kynar
CRL-U.S. Aluminum Series 400 Custom Butt Hinged Doors, White Kynar
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE42452
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 9-1/2" (241 mm) bottom rail—installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

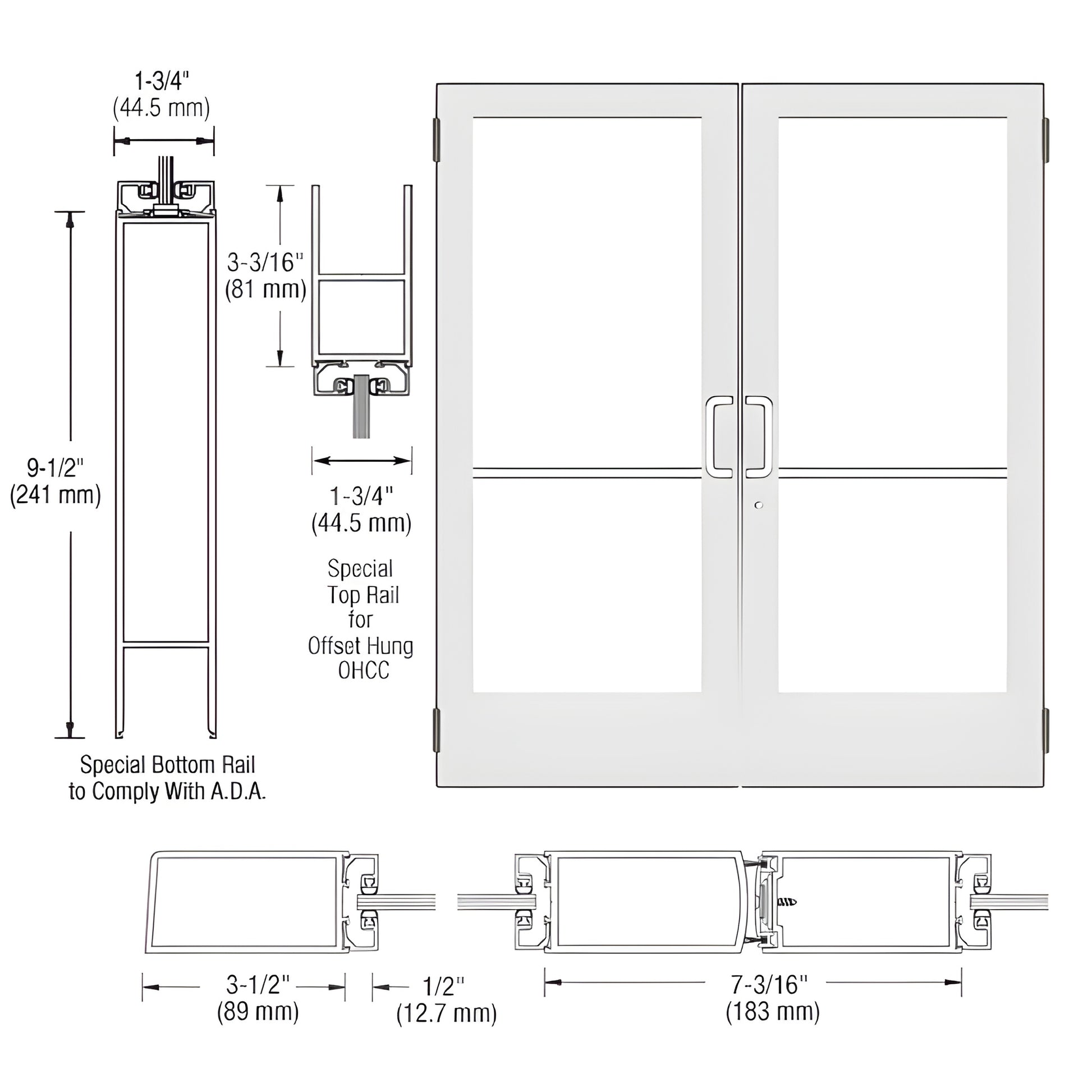

This Custom Medium Stile Entrance Door (SKU DE42452) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial applications, it includes stiles configured for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Factory-ready for custom fabrication to accommodate a wide range of optional hardware—ideal for storefronts, retail entrances, and institutional facilities requiring ADA compliance and tempered glass compatibility.
Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer.
For pricing, lead times, or to request factory customization options for SKU DE42452, contact CRL Customer Service or request a quote today.
Specifications
BIM Objects - rvt
