CRL-U.S. Aluminum Series 400 Custom KYNAR Med Stile Door Geared Hinge
Item# DC41971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be used (glass not included)
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull and hanging hardware, MS hookbolt lock, and two keyed-alike cylinders

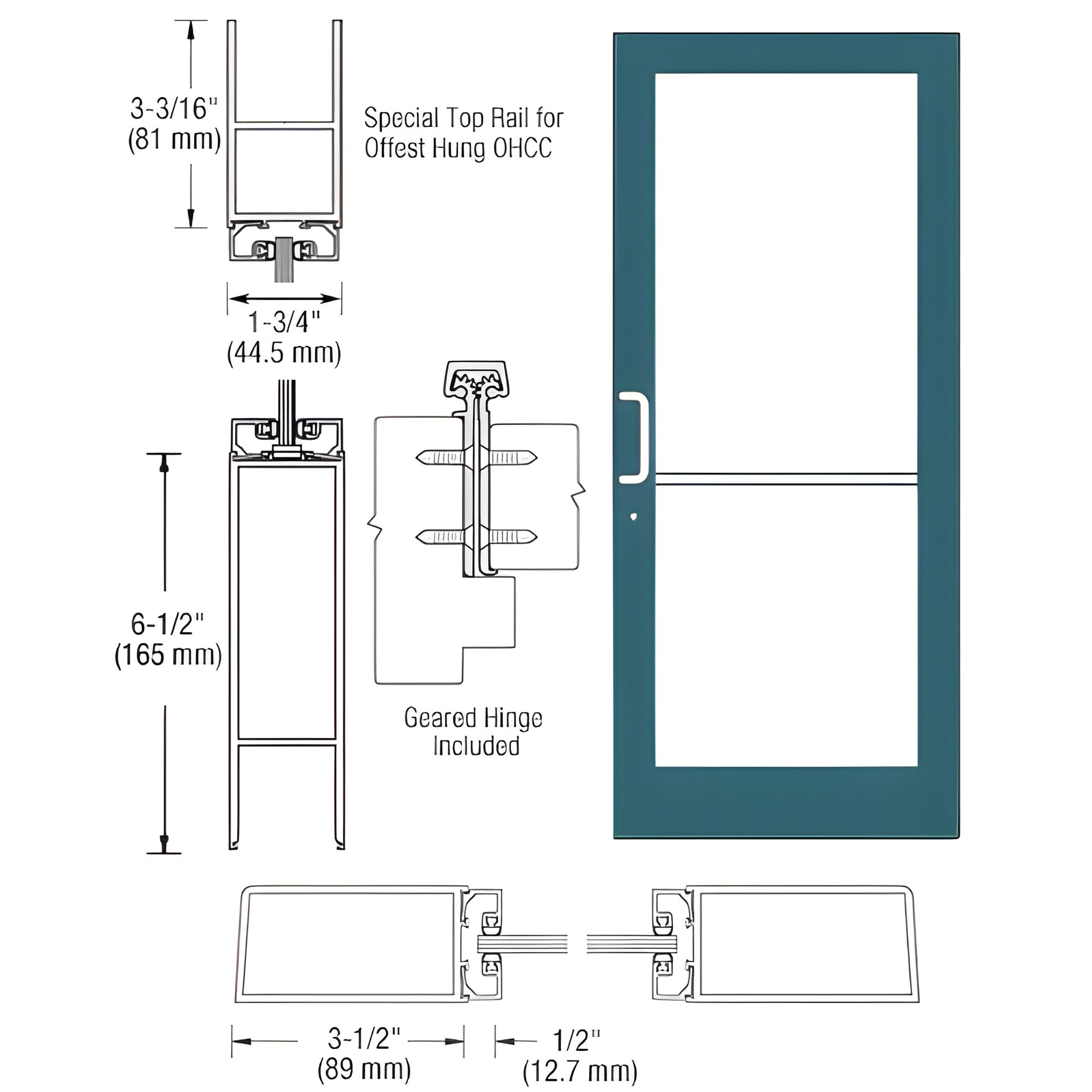

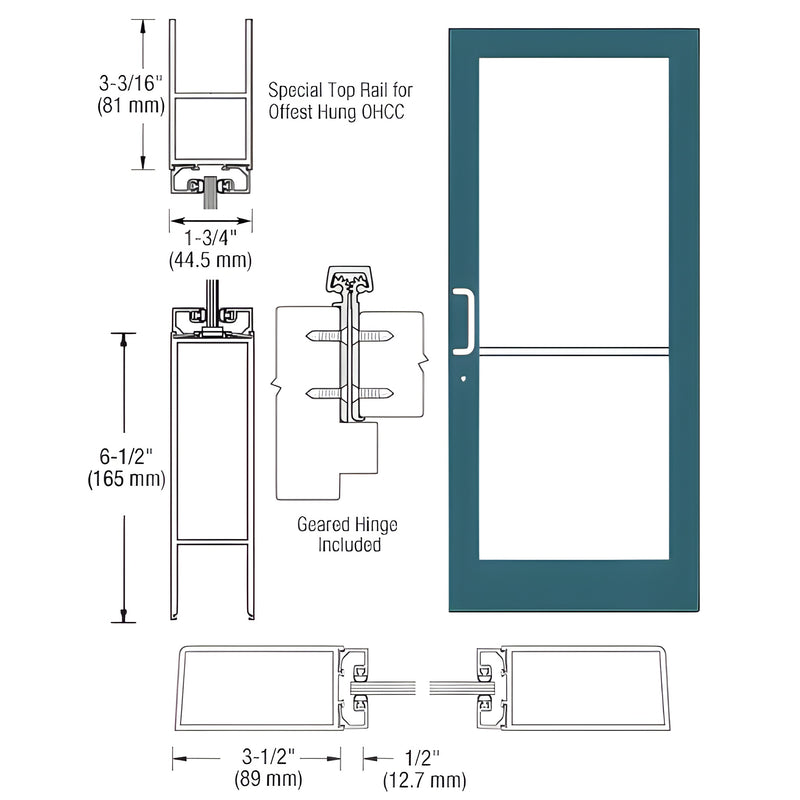

CRL Custom Medium Stile Entrance Door (SKU: DC41971) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for medium stile storefront and commercial aluminum entrance door applications, it ships ready for custom hardware installation and includes glass stops for 1/4" (6 mm) tempered glass (glass supplied by others).
Factory-supplied hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet ADA inspection requirements.
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before ordering. Product images are accurate or close representations; colors may vary based on your monitor.
Order SKU DC41971 today to get a customizable, hardware-ready medium stile entrance door for commercial storefronts.
