CRL-U.S. Aluminum Series 400 Custom Kynar Offset Pivot Entrance Door
Item# DE41171
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders — ideal for commercial storefronts (SKU: DE41171)
- Accepts 1/4” (6 mm) tempered glass with optional 1” (25 mm) tempered insulating unit; glass sold separately
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements
- Custom fabricated to accommodate a wide range of optional hardware applications and offset pivot systems

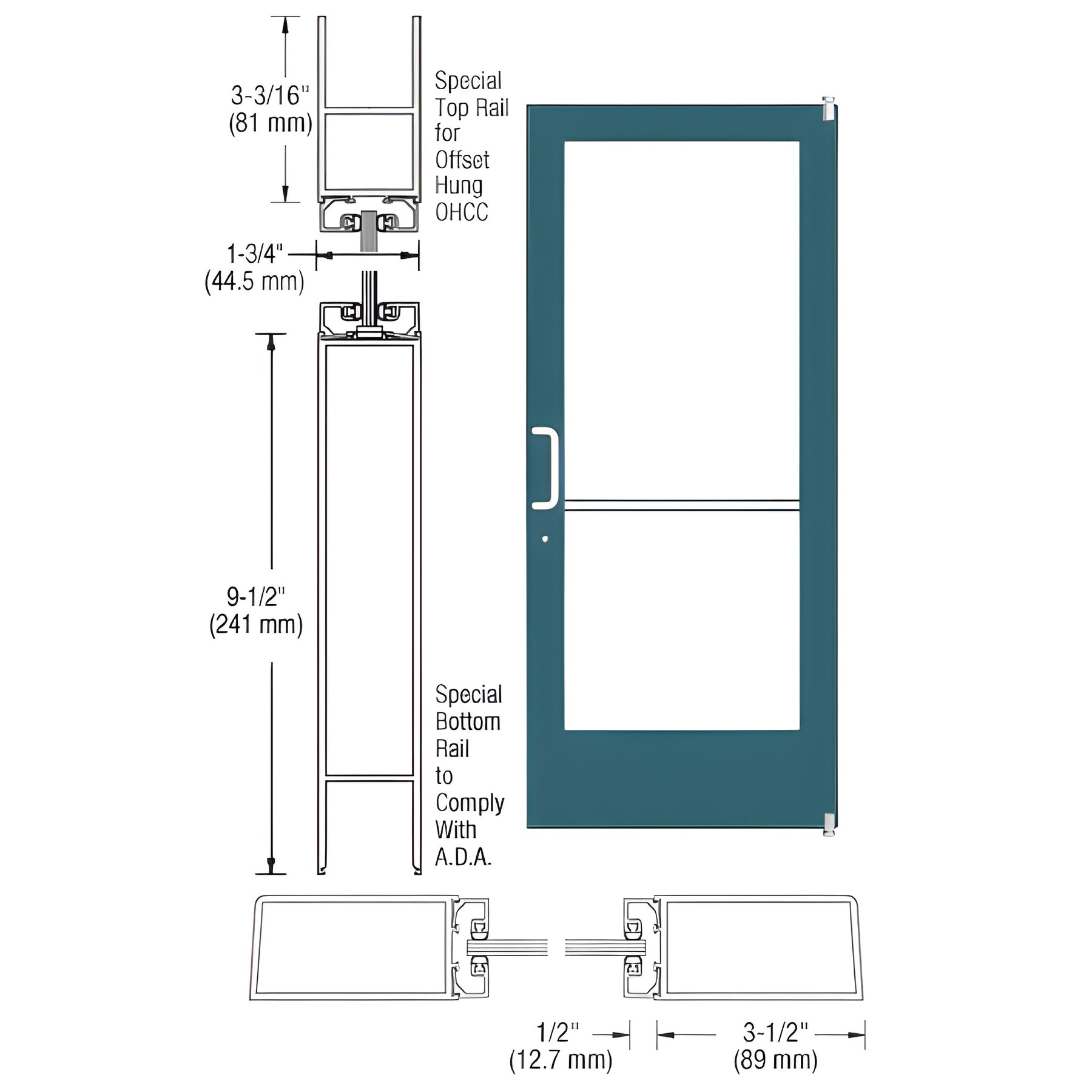

This Custom Medium Stile Entrance Door (SKU: DE41171) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Designed for commercial storefront and glass entrance applications, it includes stiles for offset pivot hardware and glass stops for 1/4” (6 mm) tempered glass (by others). Door is ready for custom fabrication to accept optional locks, closer, and specialty hardware.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Most shipping weights are approximate and may vary. If you need an exact shipping weight to determine costs before ordering, contact CRL Customer Service. Product images are representative; actual colors may vary with monitor settings.
Order SKU DE41171 or contact us for custom hardware options and installation guidance.
BIM Objects - rvt
