CRL-U.S. Aluminum Series 400 Custom KYNAR® Offset Pivot Entrance Door

• 7-1/2" (191 mm) Bottom Rail
• Custom fabricated to accept optional hardware applications
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit capacity (glass not included)
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders

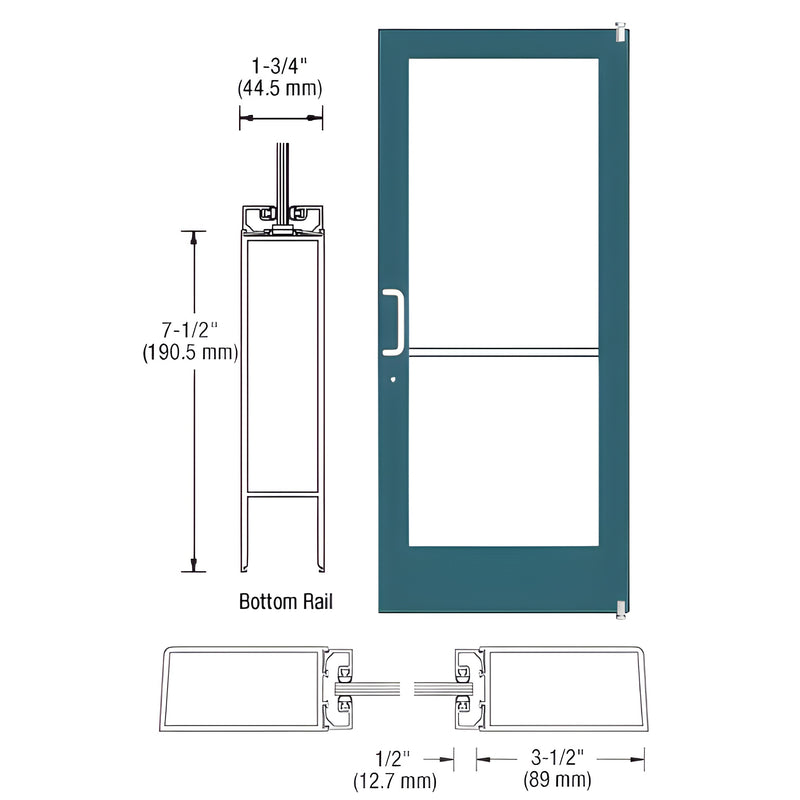

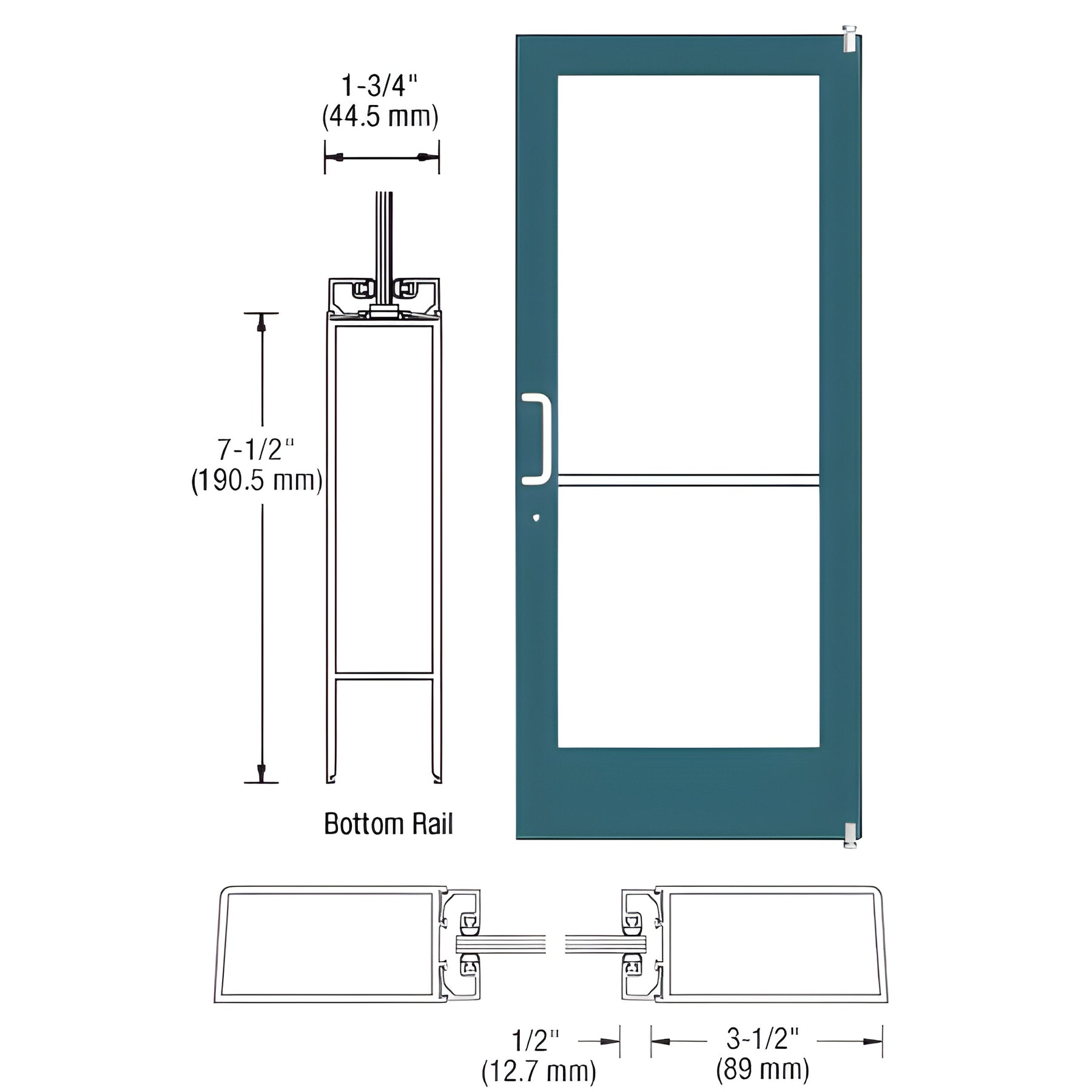

This Custom Medium Stile Entrance Door (SKU: HE41271) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for commercial storefront and entrance applications, it ships with stiles prepped for offset pivot hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). Built for custom hardware installations, this aluminum entrance door is ideal for retail, office, and institutional entries where a durable, customizable storefront door is required.

Note: Included protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not meet ADA inspection requirements.

For configurable commercial entrance solutions and custom hardware options, contact CRL or add SKU HE41271 to your cart to get started.
