CRL-U.S. Aluminum Series 400 Custom Pair Geared-Hinge Entrance Doors
CRL-U.S. Aluminum Series 400 Custom Pair Geared-Hinge Entrance Doors
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ42871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes active and inactive leaf with standard concealed vertical rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications (ready for Gear Hinge hardware)

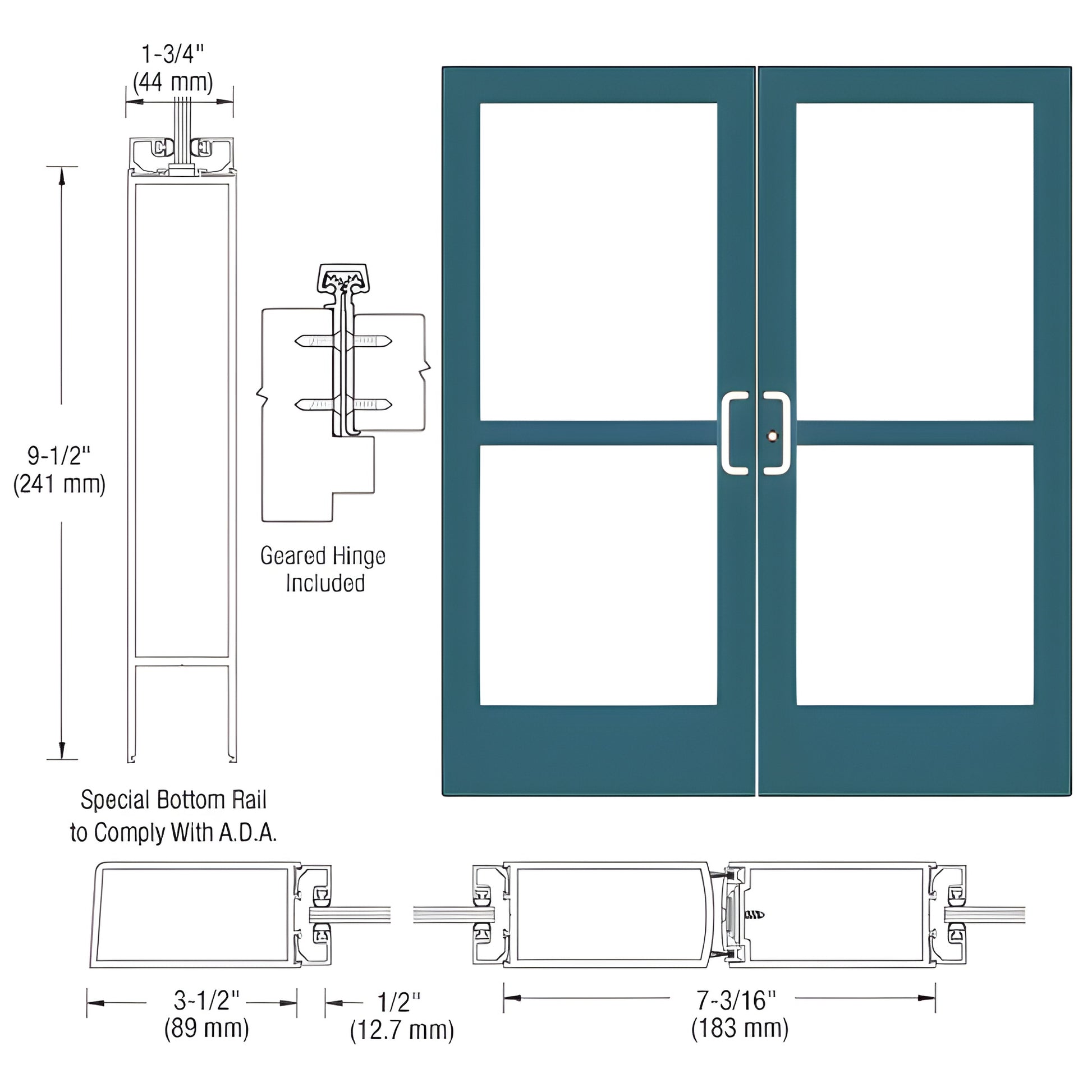

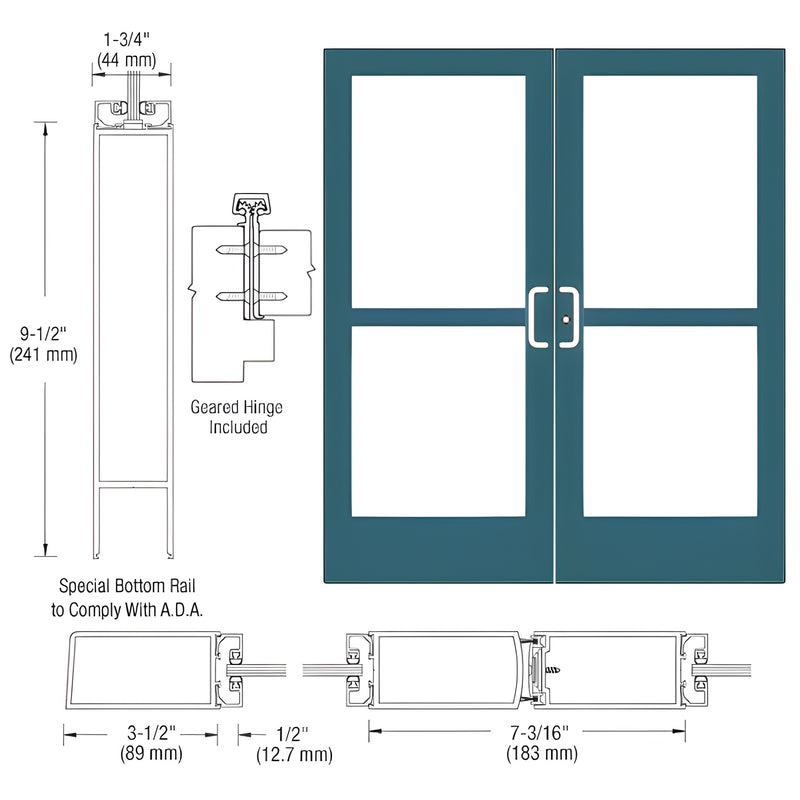

CRL Custom Medium Stile Entrance Door (SKU: CZ42871) – Built with 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard features include stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Engineered for custom fabrication to support a wide range of optional hardware, including concealed vertical rod panic systems and protruding handles.
Note: Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent damage in transit.
Order SKU CZ42871 today — contact CRL for customization options and lead times.
Specifications
BIM Objects - rvt
