CRL-U.S. Aluminum Series 400 Door - Kynar® Finish, Panic Closer
CRL-U.S. Aluminum Series 400 Door - Kynar® Finish, Panic Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DZ41971
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be used (glass not included)
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications
- Selected panic hardware and one cylinder must be ordered and added separately
- Includes standard panic pull and hanging hardware; protruding hardware (handles, pivots, etc.) is boxed separately for transit protection and must be installed by the customer

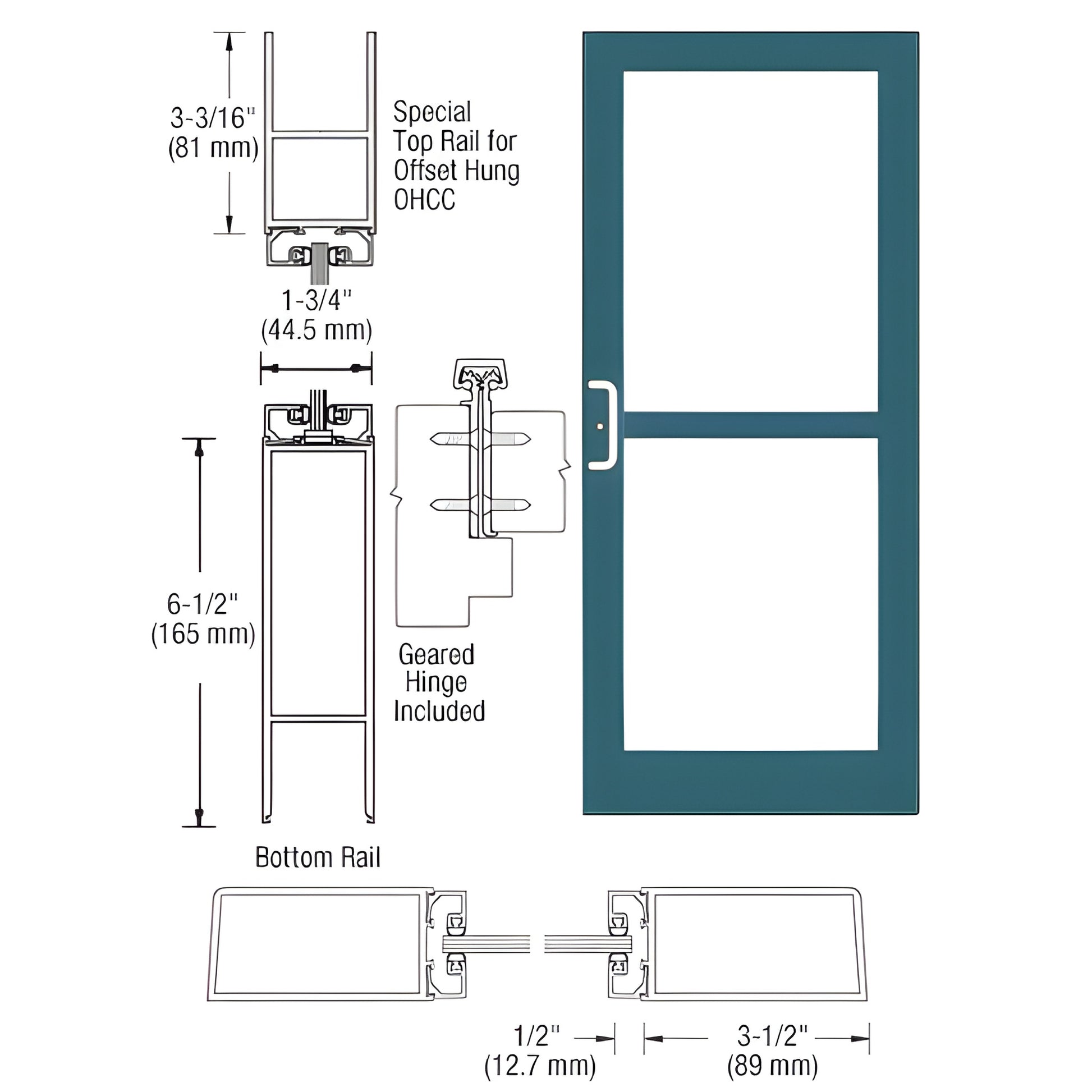

This Custom Medium Stile Entrance Door (SKU: DZ41971) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for commercial applications, it ships ready for gear hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. The door is custom-fabricated to accommodate optional commercial hardware packages and panic devices.
Note: Glass is supplied by others. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Ready to spec this custom commercial entrance door for your project? Contact our sales team to order hardware options or request exact shipping weight.
Specifications
BIM Objects - rvt
