CRL-U.S. Aluminum Series 400 Geared Entry Door Pair KYNAR Closer-Ready
CRL-U.S. Aluminum Series 400 Geared Entry Door Pair KYNAR Closer-Ready
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE42871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be installed (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications

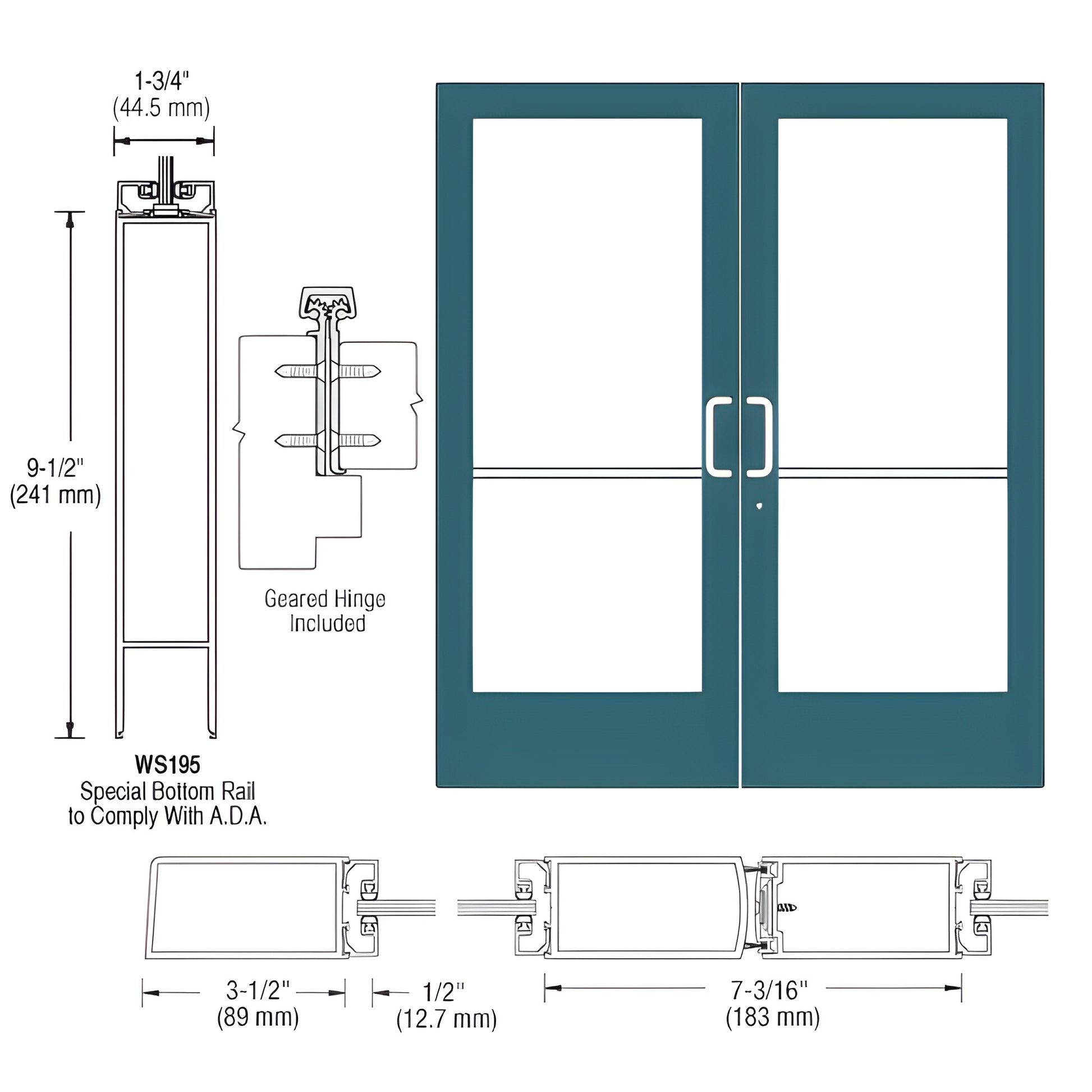

Custom Medium Stile Entrance Door (SKU: DE42871) — built with 3-1/2" (89 mm) stiles, 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard features include stiles sized for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. Designed for commercial storefront and institutional entrances that require custom hardware flexibility and ADA compliance. Glass not included.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent damage in transit and must be installed by the customer or installer.
Order SKU DE42871 or contact us for custom hardware options and installation guidance.
Specifications
BIM Objects - rvt
