CRL-U.S. Aluminum Series 400 Geared-Hinge Entrance Door, Closer-Ready
CRL-U.S. Aluminum Series 400 Geared-Hinge Entrance Door, Closer-Ready
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE42852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit (IGU) compatible — glass not included
- Includes active and inactive leaf with all standard hardware
- 7-1/2" (191 mm) bottom rail
- Custom fabricated to accept optional hardware applications

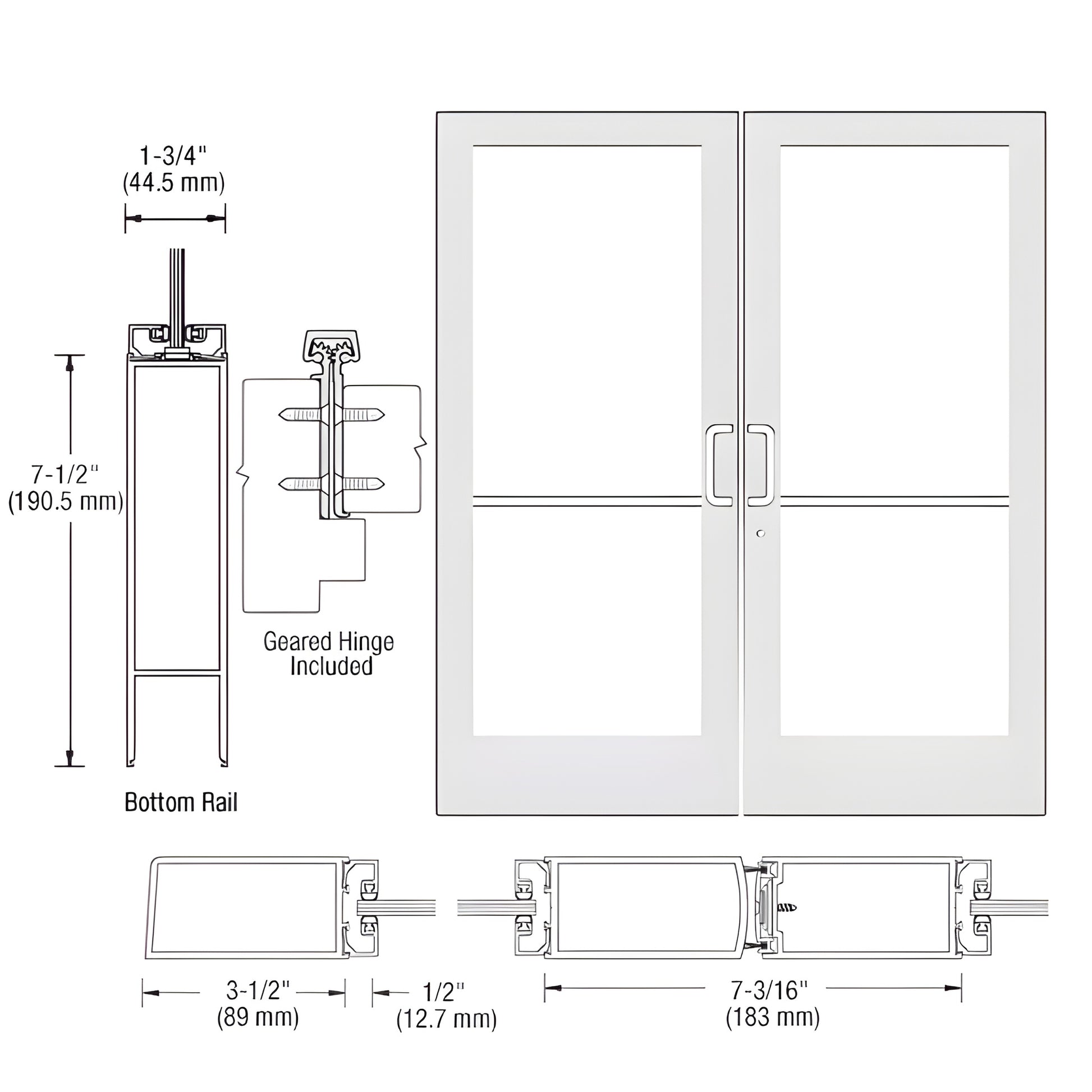

This Custom Medium Stile Entrance Door (SKU HE42852) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for commercial storefronts and entryways, it includes stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The door is ready for custom fabrication to accommodate a wide range of optional hardware and commercial entrance configurations.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer.
Contact CRL Customer Service to order SKU HE42852 or to confirm shipping weight and available hardware options.
Specifications
BIM Objects - rvt
