CRL-U.S. Aluminum Series 400 Geared Hinge Entry Door, Clear Anodized
CRL-U.S. Aluminum Series 400 Geared Hinge Entry Door, Clear Anodized
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HE41911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- 7-1/2" (191 mm) bottom rail
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders

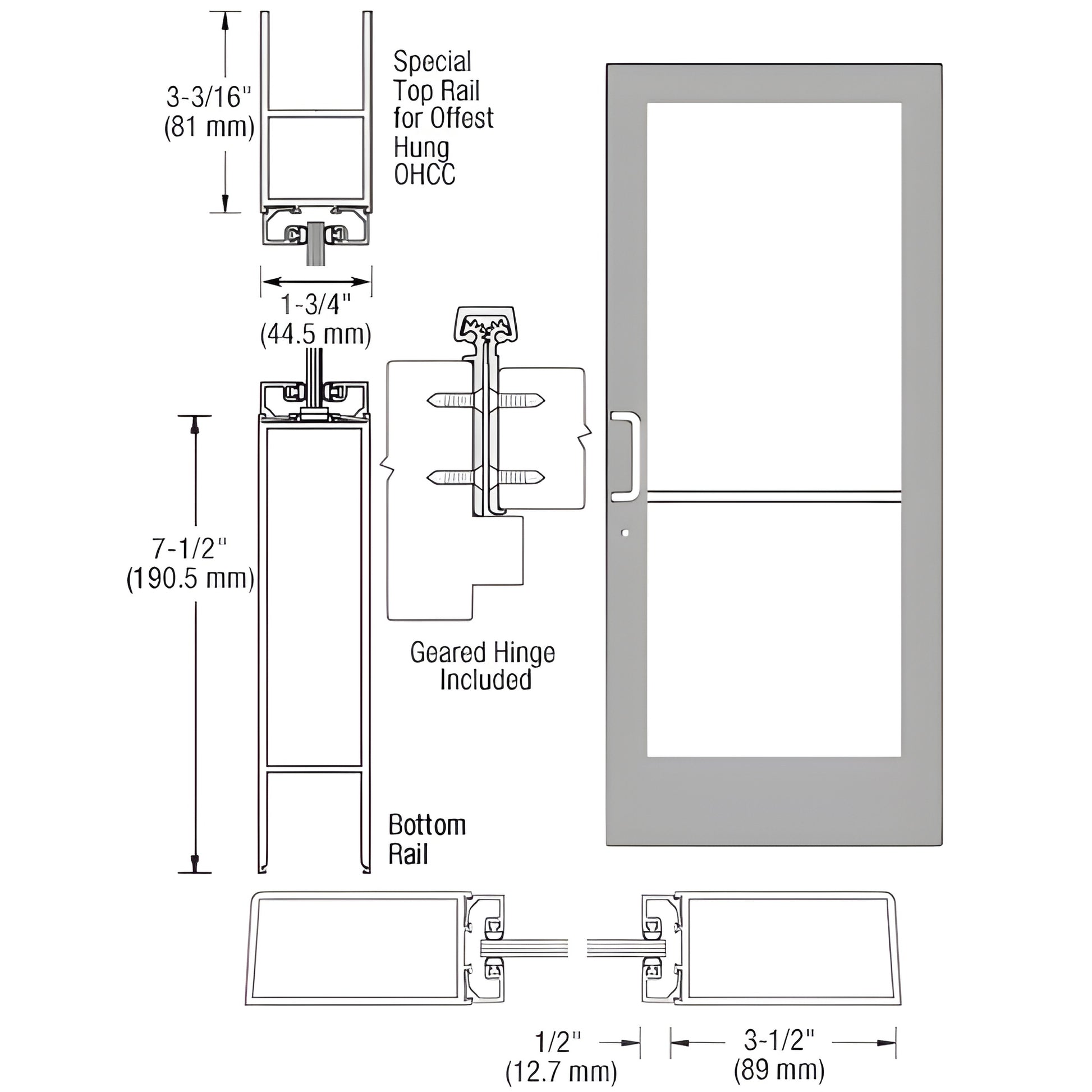

This Custom Medium Stile Entrance Door (SKU: HE41911) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Built for commercial storefront and entrance applications, it ships with stiles prepared for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass. The door is ready for custom fabrication to accommodate a wide range of optional hardware, making it a versatile choice for retrofit and new-construction projects.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order SKU HE41911 today to specify a customizable, commercial-grade entrance door designed for tempered glass and flexible hardware integration.
Specifications
BIM Objects - rvt
