CRL-U.S. Aluminum Series 400 KYNAR® Entrance Door, Butt-Hinged
CRL-U.S. Aluminum Series 400 KYNAR® Entrance Door, Butt-Hinged
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC41471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Includes Standard Push/Pull, hanging hardware, MS Hookbolt Lock, and two keyed‑alike cylinders
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept optional hardware applications and butt hinge installation

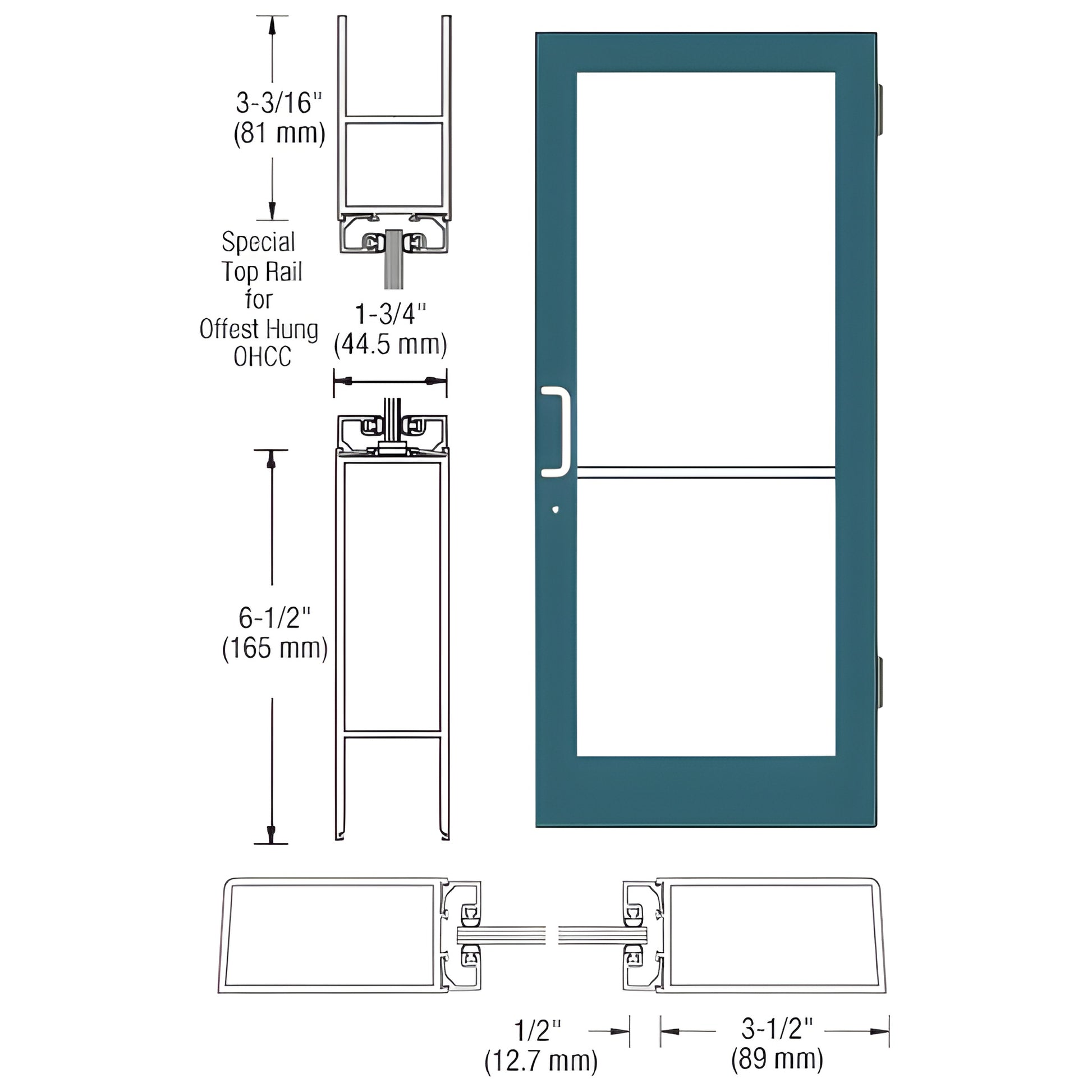

CRL Custom Medium Stile Entrance Door (SKU: DC41471) — commercial medium stile storefront door engineered for 3-1/2" (89 mm) stiles, 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Features glass stops for 1/4" (6 mm) tempered glass and is ready for custom fabrication to accommodate a wide range of hardware applications, including MS Hookbolt Lock and keyed‑alike cylinders. Ideal for commercial entrance, storefront, and glass door frame installations.
Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed on site to prevent transit damage. Door widths under 36" (914 mm) may not comply with A.D.A. inspection requirements.
Order SKU DC41471 or contact CRL Customer Service to confirm options and shipping details.
Specifications
BIM Objects - rvt
