CRL-U.S. Aluminum Series 400 KYNAR Geared-Hinge Entrance Door Pair
CRL-U.S. Aluminum Series 400 KYNAR Geared-Hinge Entrance Door Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ42852
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- Includes active and inactive leaf with all standard concealed vertical rod panic hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accepted (glass not included)
- 9-1/2" (241 mm) ADA-compliant bottom rail
- Custom fabricated to accept a wide range of optional hardware applications

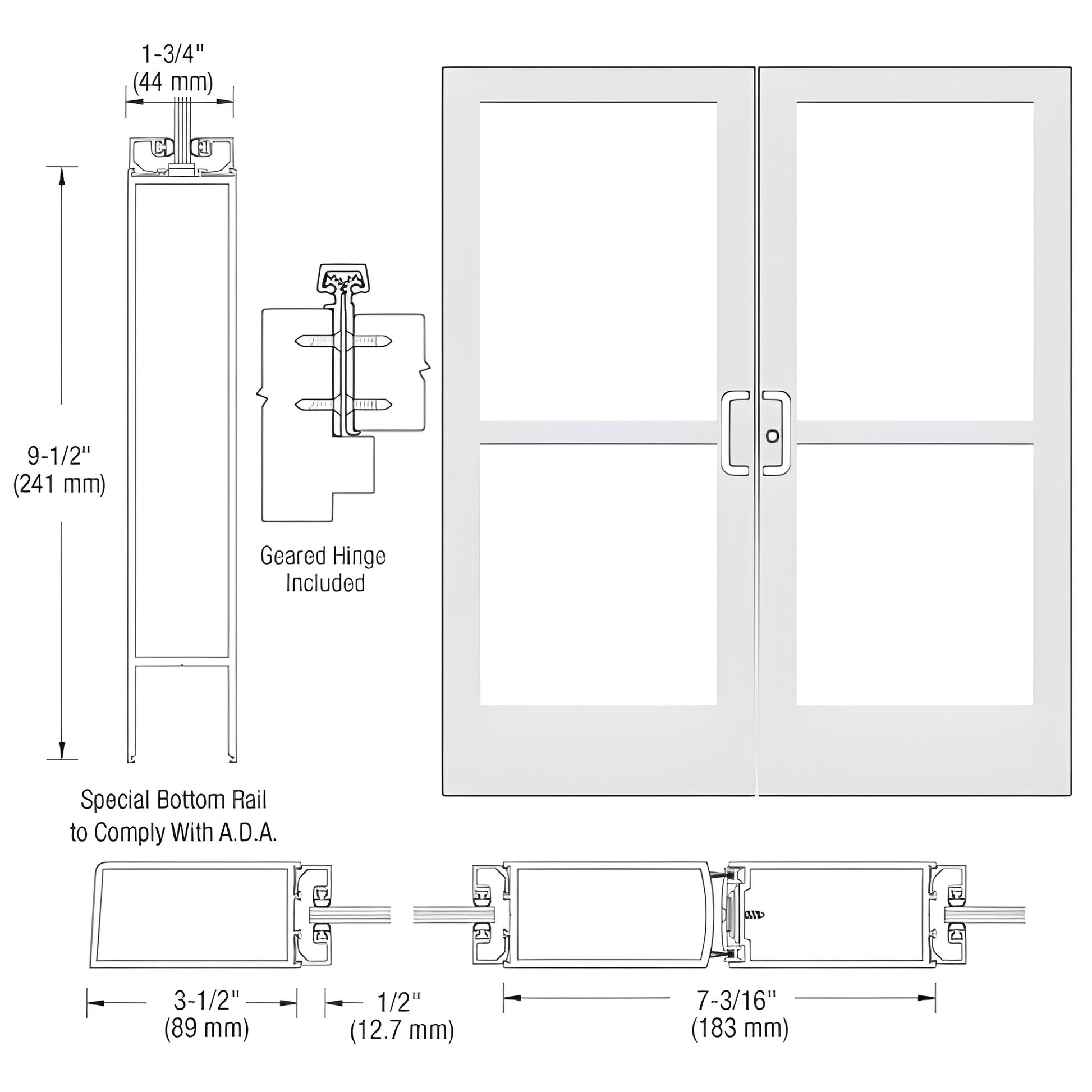

This CRL Custom Medium Stile Entrance Door (SKU: CZ42852) is engineered for commercial glass entrance applications and is built with 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard features include stiles prepped for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. The door is ready for custom fabrication to accommodate optional commercial hardware, making it ideal for storefronts, office entrances, and retrofit projects.
Note: Handles, pivots, and other protruding hardware are boxed separately and must be installed by the customer to avoid transit damage.
Order CZ42852 today to specify a commercial-grade medium stile entrance door tailored to your project.
Specifications
BIM Objects - rvt
