CRL-U.S. Aluminum Series 400 Medium Stile Butt-Hinged Entrance Doors

• 6-1/2" (165 mm) Bottom Rail
• Custom fabricated to accept optional hardware applications
• Accommodates 1/4" (6 mm) tempered glass; option for 1" (25 mm) tempered insulating unit (glass not included)
• Includes active and inactive leaf with standard concealed vertical rod panic hardware

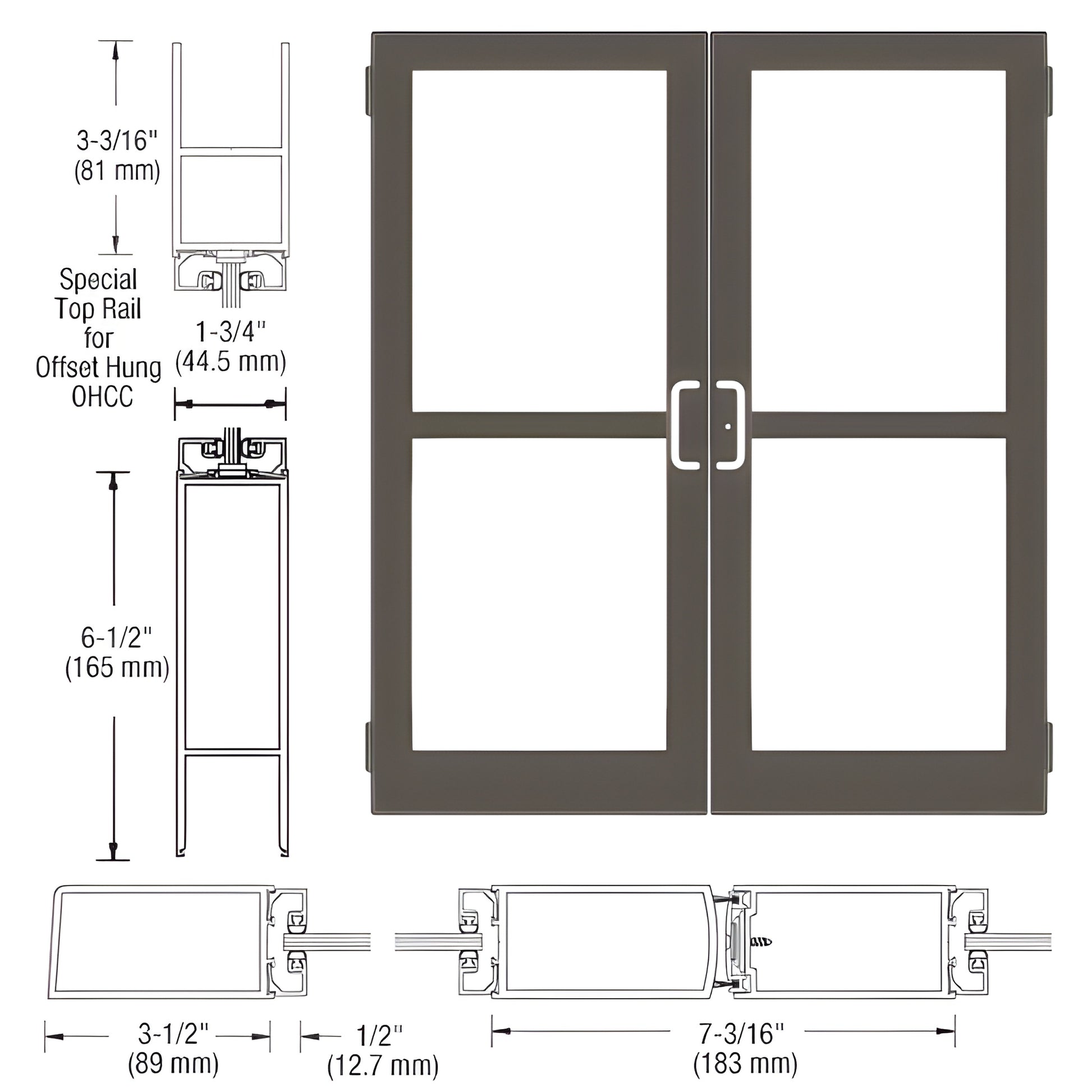

This Custom Medium Stile Entrance Door (SKU: DZ42422) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail and a 6-1/2" (165 mm) bottom rail. Designed for commercial storefronts and high-traffic entryways, it ships with stiles prepped for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Ready for custom fabrication to integrate a wide range of optional hardware—ideal for installations requiring concealed vertical rod panic hardware and other safety-grade door systems.

Hardware components that protrude (handles, pivots, etc.) are boxed separately to prevent transit damage and must be installed by the customer or installer.

Key differentiators: commercial-grade medium stile construction, prepped for concealed vertical rod panic hardware, customizable hardware cuttings, and options for insulated tempered glass units. Order or request a quote for SKU DZ42422 today.
