CRL-U.S. Aluminum Series 400 Medium Stile Entrance Door w/ Geared Hinge
CRL-U.S. Aluminum Series 400 Medium Stile Entrance Door w/ Geared Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ41871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

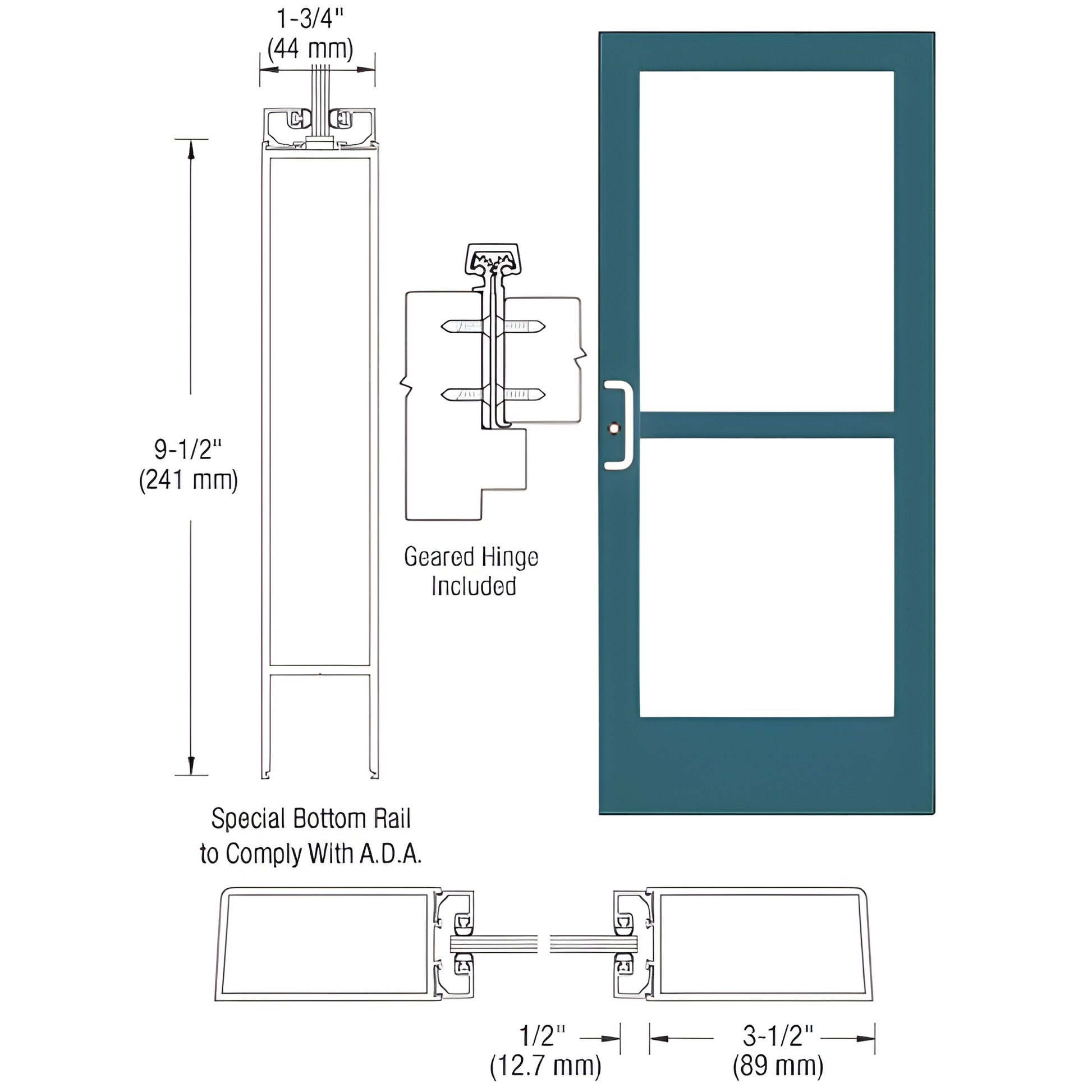

- Fits 1/4" (6 mm) tempered glass; accepts optional 1" (25 mm) tempered insulating unit (glass not included)
- 9-1/2" (241 mm) bottom rail installed for A.D.A. compliance on qualifying widths
- Custom fabricated to accept a wide range of optional commercial hardware applications
- Includes standard panic pull, hanging hardware, concealed vertical-rod panic hardware, and one cylinder
CRL Custom Medium Stile Entrance Door — commercial-grade medium stile entrance door with 3-1/2" (89 mm) stiles, 3-3/16" (81 mm) top rail, and 9-1/2" (241 mm) bottom rail. Designed for 1/4" (6 mm) tempered glass stops and built for custom hardware installations (gear hinge-ready). Ideal for storefront and commercial glass door replacement where tempered or insulating glass units are used.
Note: Protruding hardware (handles, pivots, etc.) ships boxed separately and must be installed on site to prevent transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
SKU: CZ41871 — for pricing, lead times, and hardware compatibility inquiries, contact CRL or add to cart to start your custom order.
Specifications
BIM Objects - rvt
