CRL-U.S. Aluminum Series 400 Medium Stile Offset Geared Hinge for Panic Closers

• Includes Standard Panic Pull and hanging hardware
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
• 6-1/2" (165 mm) bottom rail
• Custom fabricated to accept optional hardware applications
• Selected panic hardware and one cylinder ordered separately

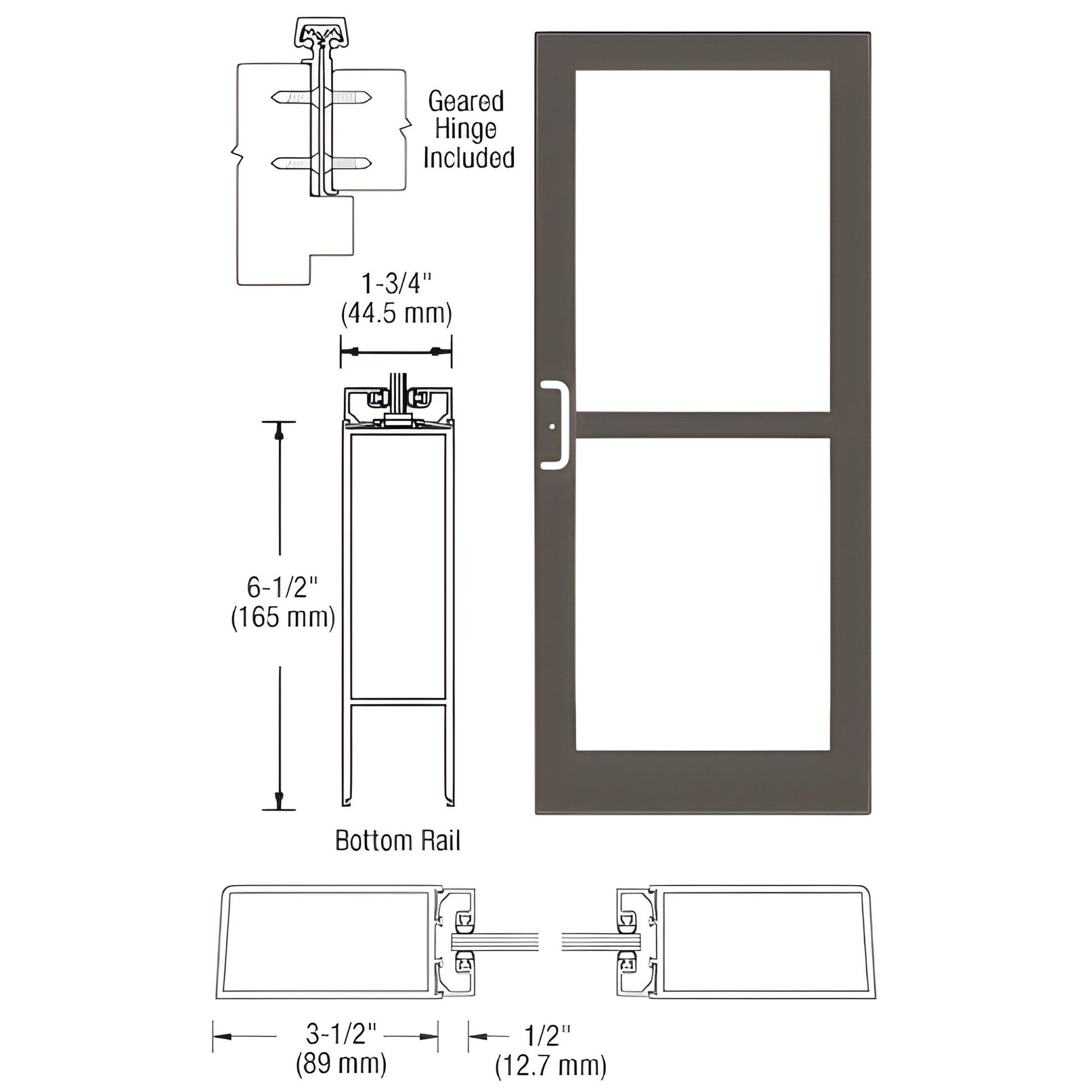

This Custom Medium Stile Entrance Door (SKU DZ41822) is engineered for commercial storefronts and built with 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard features include stiles prepped for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The door is ready for custom fabrication to accommodate a wide range of optional hardware applications and commercial door hardware upgrades.

Protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet ADA inspection requirements.

For pricing, lead times, or to confirm shipping weight and custom hardware options for SKU DZ41822, contact CRL Customer Service or place your order today.
