CRL-U.S. Aluminum Series 400 Offset Geared Hinge for Surface-Mount Closer

• Includes standard push/pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders for simplified key management
• Fits 1/4” (6 mm) tempered glass; optional 1” (25 mm) tempered insulating unit compatible (glass not included)
• 9-1/2" (241 mm) bottom rail installed to meet A.D.A. requirements for accessible commercial entrances
• Custom fabricated to accept a wide range of optional hardware applications and commercial storefront fittings

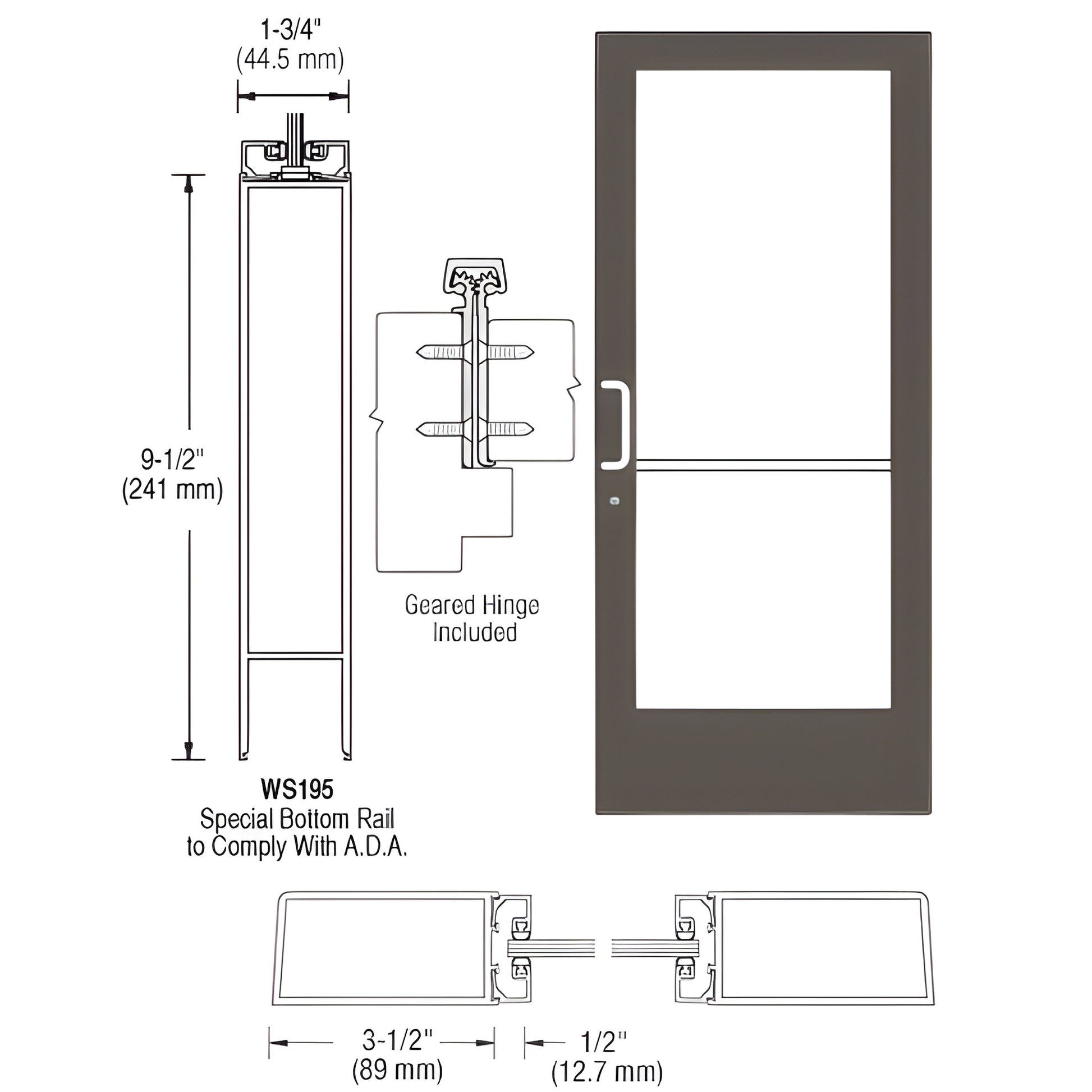

This Custom Medium Stile Entrance Door (SKU: DE41822) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard preparation includes stiles for Gear Hinge hardware and glass stops for 1/4” (6 mm) tempered glass (by others). Built for commercial and storefront use, it’s ready for custom fabrication to accept additional hardware options for secure, ADA-compliant entrances.

Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
