CRL-U.S. Aluminum Series 400 Offset Geared Hinge - Medium Stile Panic
CRL-U.S. Aluminum Series 400 Offset Geared Hinge - Medium Stile Panic
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HZ41871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

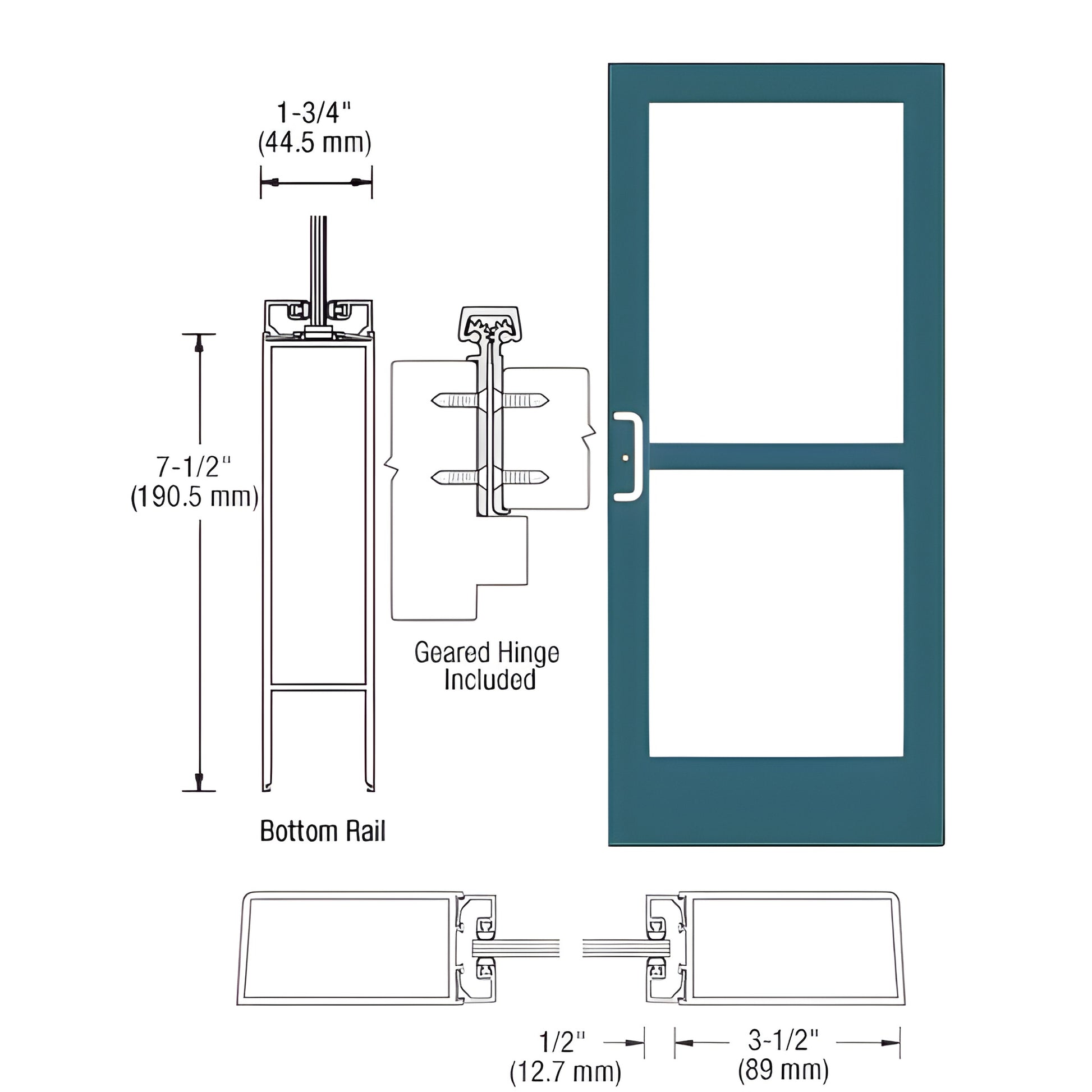

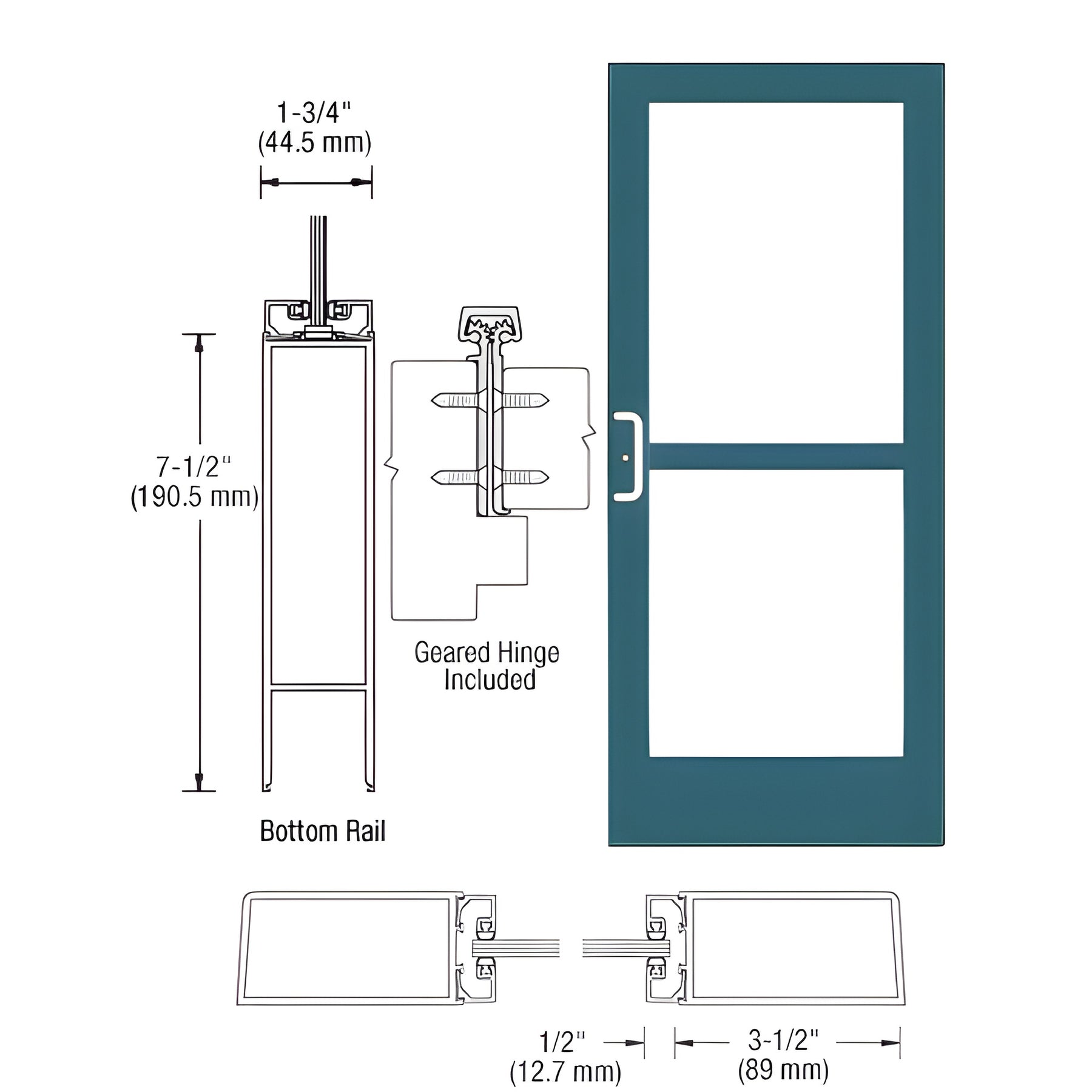

- 7-1/2" (191 mm) Bottom Rail
- Custom fabricated to accept optional hardware applications
- Accommodates 1/4" (6 mm) tempered glass; option for 1" (25 mm) tempered insulating unit (glass not included)
- Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder
Custom Medium Stile Entrance Door (SKU: HZ41871) — built with 3-1/2" (89 mm) stiles, 3-3/16" (81 mm) top rail, and a 7-1/2" (191 mm) bottom rail. Designed for commercial storefront and entry applications, this door ships ready for gear hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Fabricated to accept a wide range of optional hardware, it’s ideal when you need a customizable, heavy‑duty entrance solution.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Doors under 36" (914 mm) width may not meet A.D.A. inspection requirements.
Need a quote or custom hardware layout for this commercial entrance door? Contact us to get started.
Specifications
BIM Objects - rvt
