CRL-U.S. Aluminum Series 400 Offset Pivot Doors - Closer Compatible
CRL-U.S. Aluminum Series 400 Offset Pivot Doors - Closer Compatible
Regular price
$2,201.63 CAD
Regular price
Sale price
$2,201.63 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC42211
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 6-1/2" (165 mm) Bottom Rail
- Custom fabricated to accept optional hardware applications (offset pivot, hanging hardware)
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders
- Accommodates 1/4" (6 mm) tempered glass; option for 1" (25 mm) tempered insulating unit (glass not included)

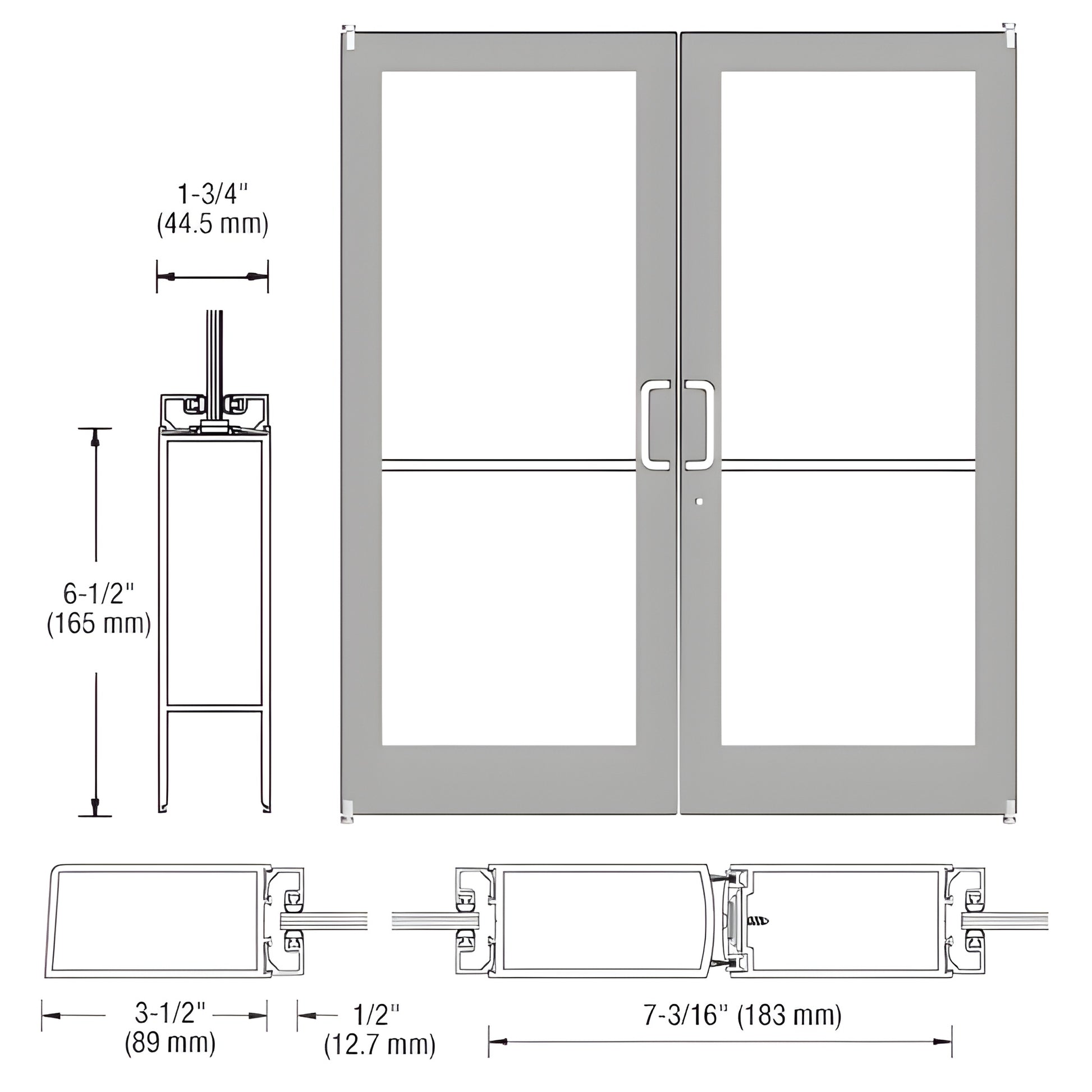

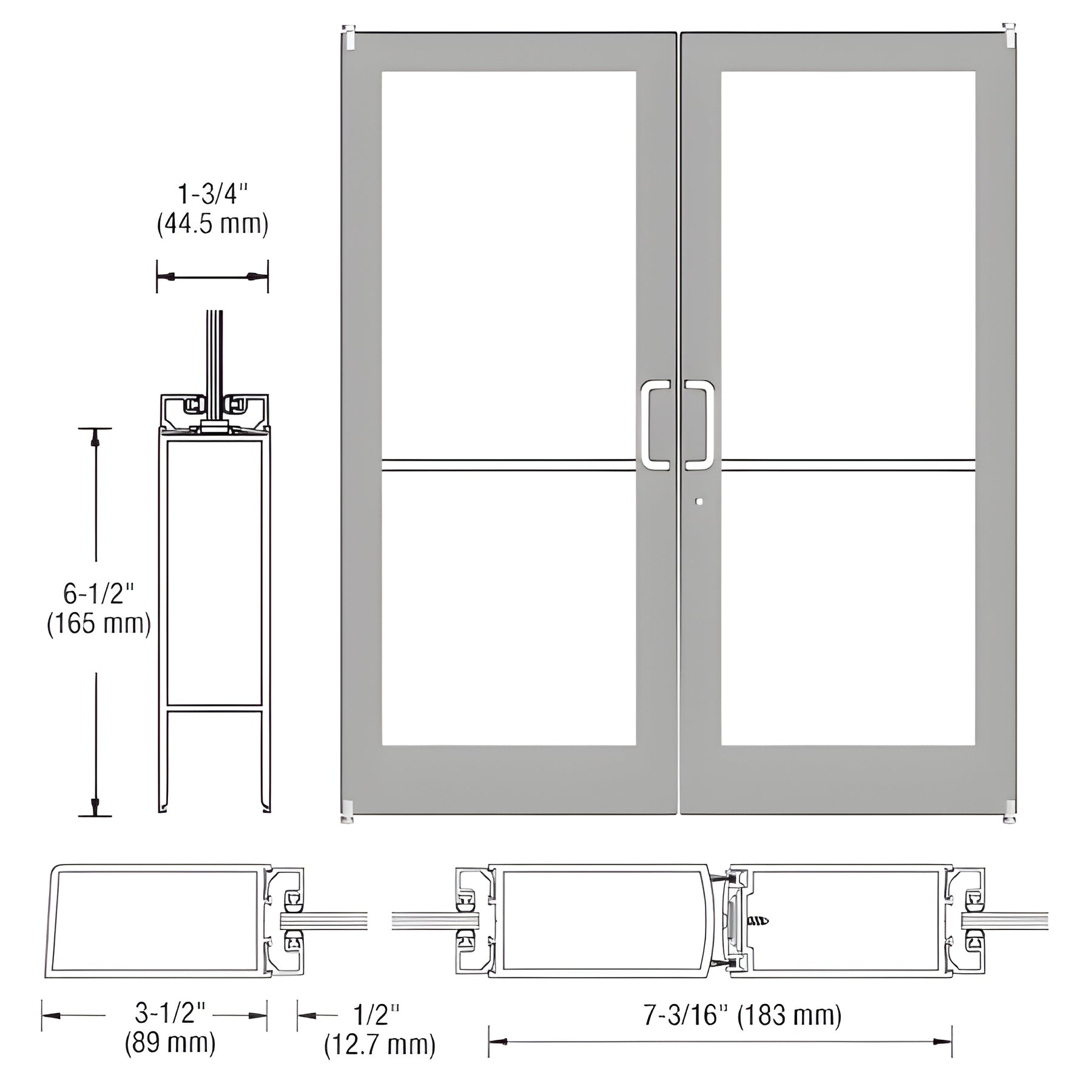

This Custom Medium Stile Entrance Door (SKU: DC42211) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Built for commercial and storefront applications, it ships ready for offset pivot hardware and includes glass stops for 1/4" (6 mm) tempered glass (by others). The profile is specially designed for custom hardware integration and optional insulating glass units for improved thermal performance.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to avoid transit damage.
Order DC42211 today — contact us for pricing and available hardware options.
Specifications
BIM Objects - rvt
