CRL-U.S. Aluminum Series 400 Offset Pivot Entrance Doors KYNAR Paint
Item# DC42271
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Custom Kynar
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be used (glass not included)
- Includes standard push/pull set, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders for simplified master-keying
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications, including offset pivot hardware

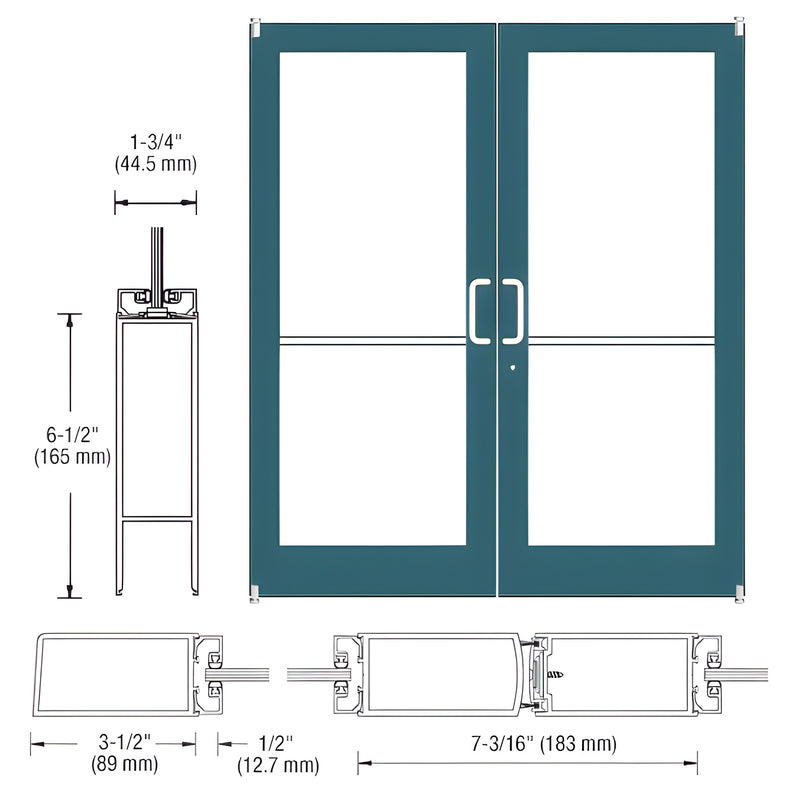

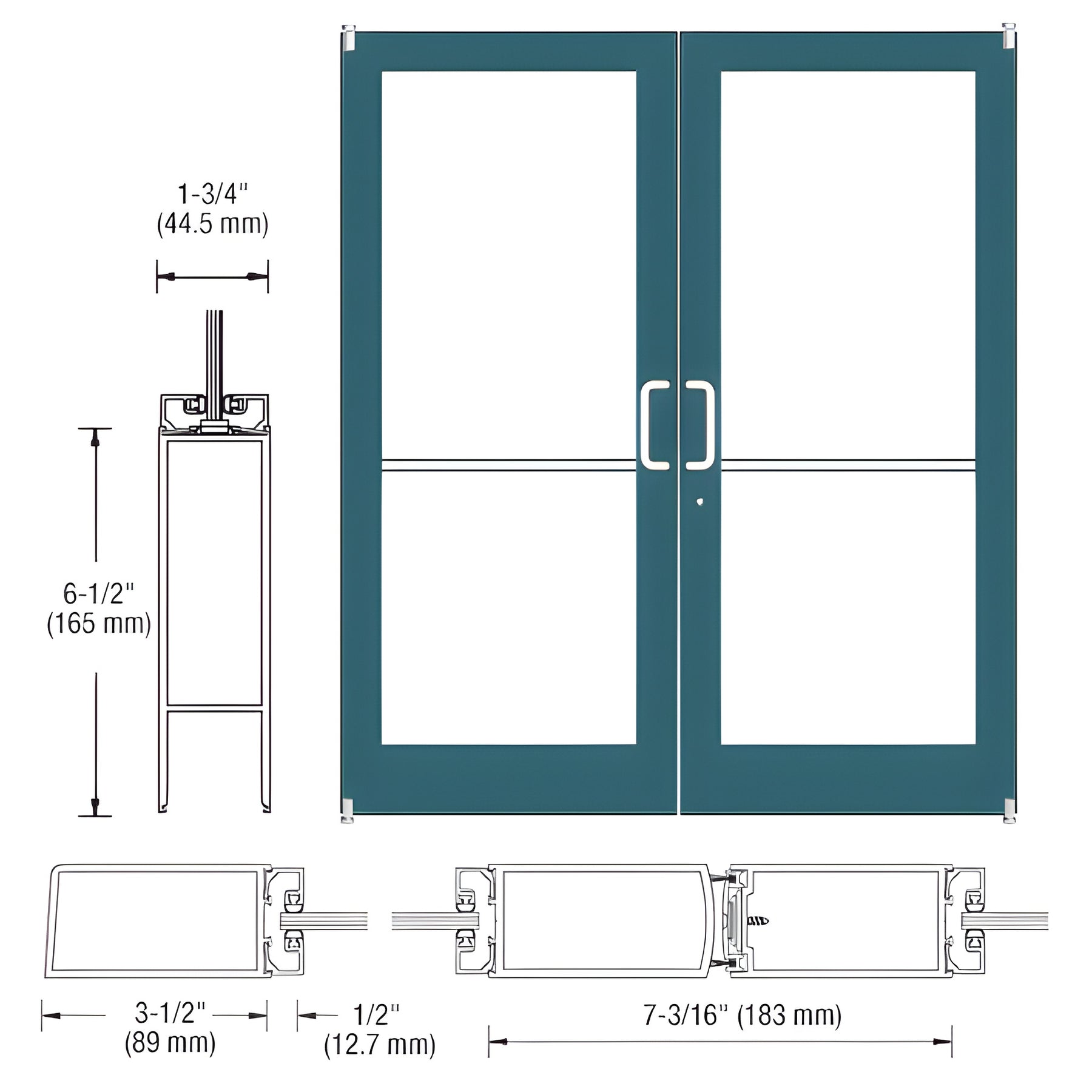

Custom Medium Stile Entrance Door built with 3-1/2" (89 mm) stiles, 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard features include stiles sized for offset pivot hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Door ships with protruding hardware boxed separately to prevent transit damage; customer must install handles, pivots, and similar items onsite.
SKU: DC42271
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before placing your order. Product images are representative; actual colors may vary by monitor settings.
Built for commercial storefronts and custom entrances—order SKU DC42271 or contact us for custom hardware options and lead times.
BIM Objects - rvt
