CRL-U.S. Aluminum Series 400 Pair Butt-Hinged Doors, Concealed Closer
CRL-U.S. Aluminum Series 400 Pair Butt-Hinged Doors, Concealed Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE42471
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accommodates 1/4" (6 mm) tempered glass or optional 1" (25 mm) tempered insulating glass unit (glass not included)
- Includes active and inactive leaf with all standard hardware
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications

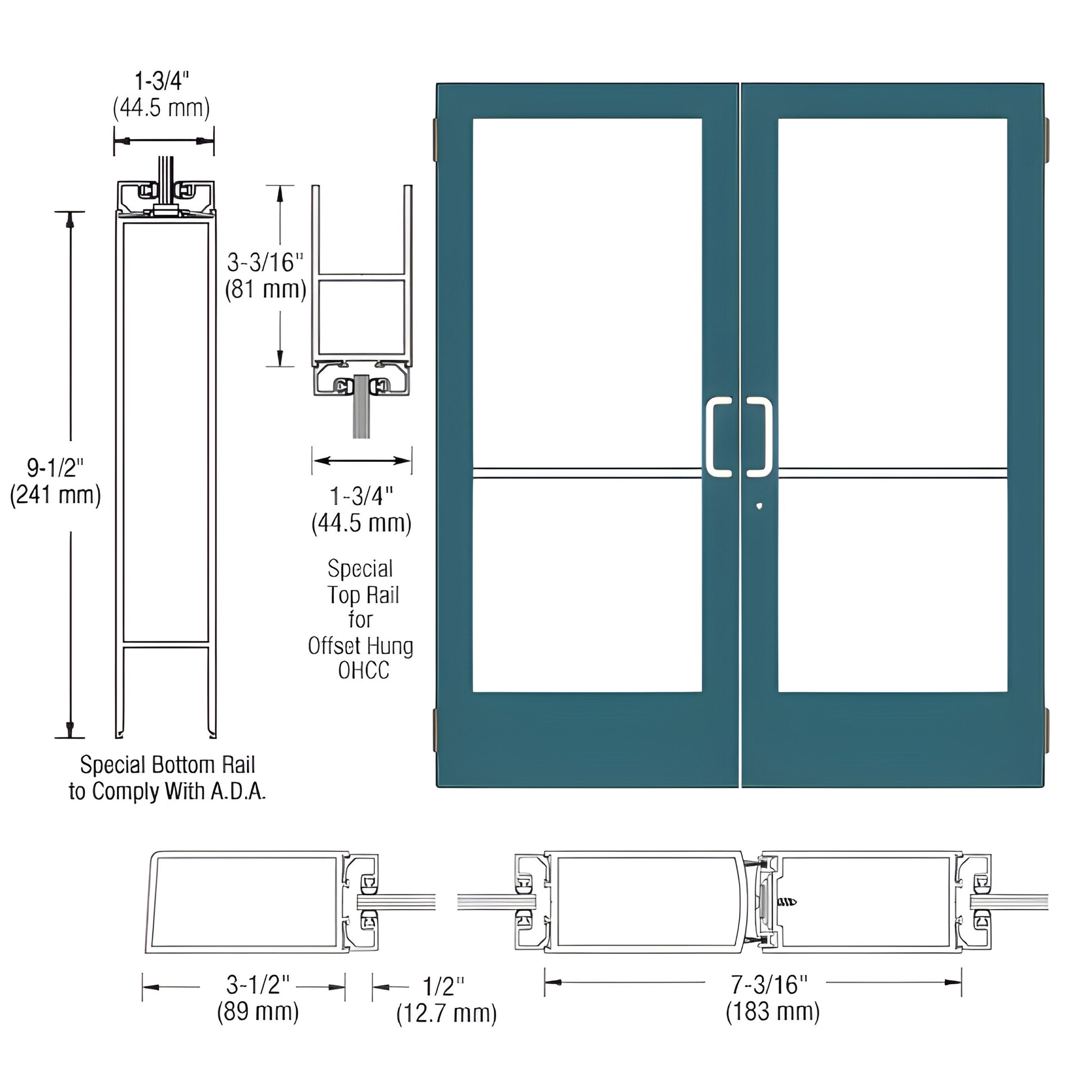

This Custom Medium Stile Entrance Door (SKU: DE42471) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Standard design includes stiles for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass. The door is ready for custom fabrication to accommodate optional hardware applications and specialty commercial door configurations.
Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent damage in transit.
Order this custom medium stile entrance door (DE42471) today to get an ADA-compliant, hardware-ready commercial door built for custom applications.
Specifications
BIM Objects - rvt
