CRL-U.S. Aluminum Series 400 White KYNAR® Geared-Hinge Entrance Doors
Item# DC42952
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
White Kynar
- Includes Active and Inactive Leaf with All Standard Hardware
- 6-1/2" (165 mm) Bottom Rail
- Custom Fabricated to Accept Optional Hardware Applications

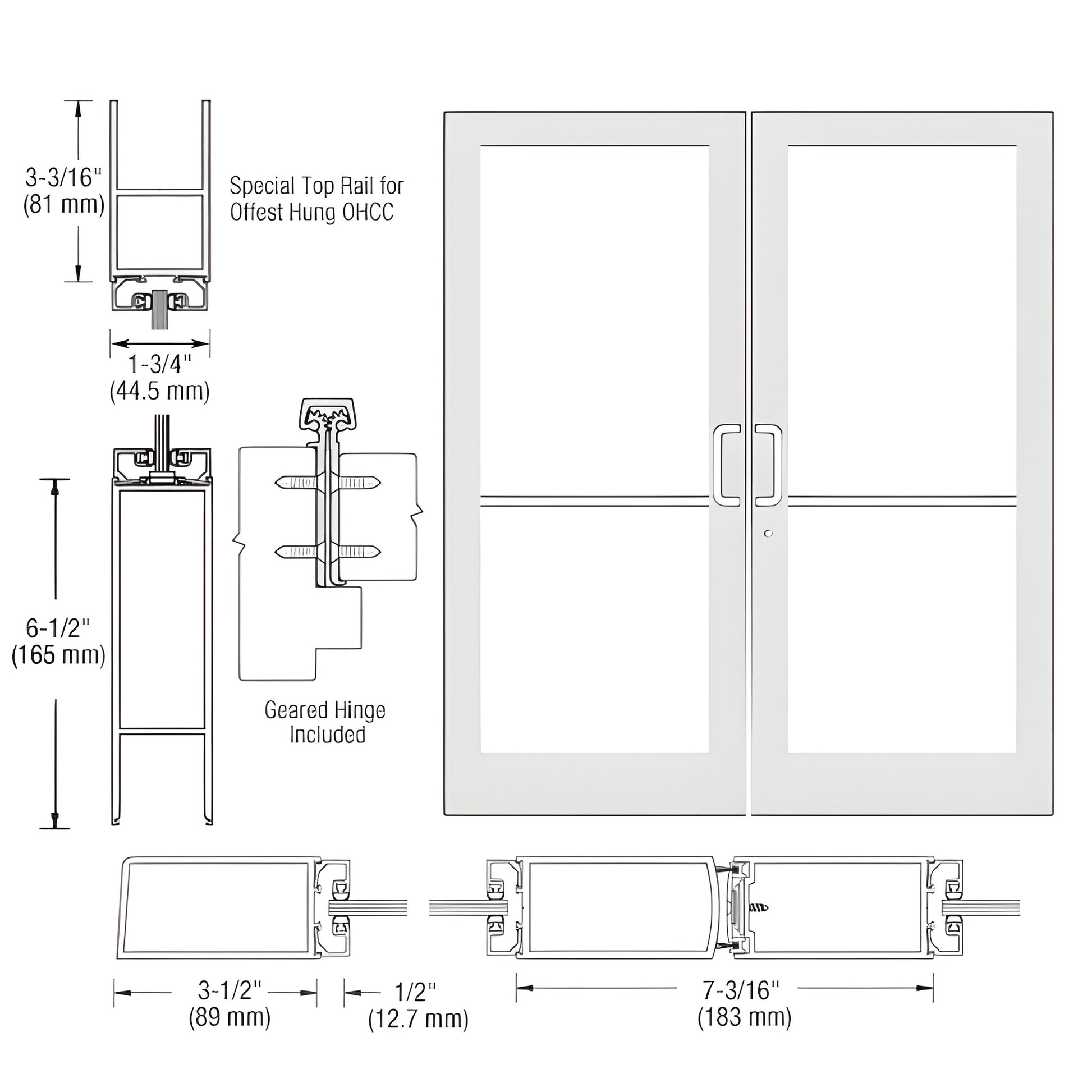

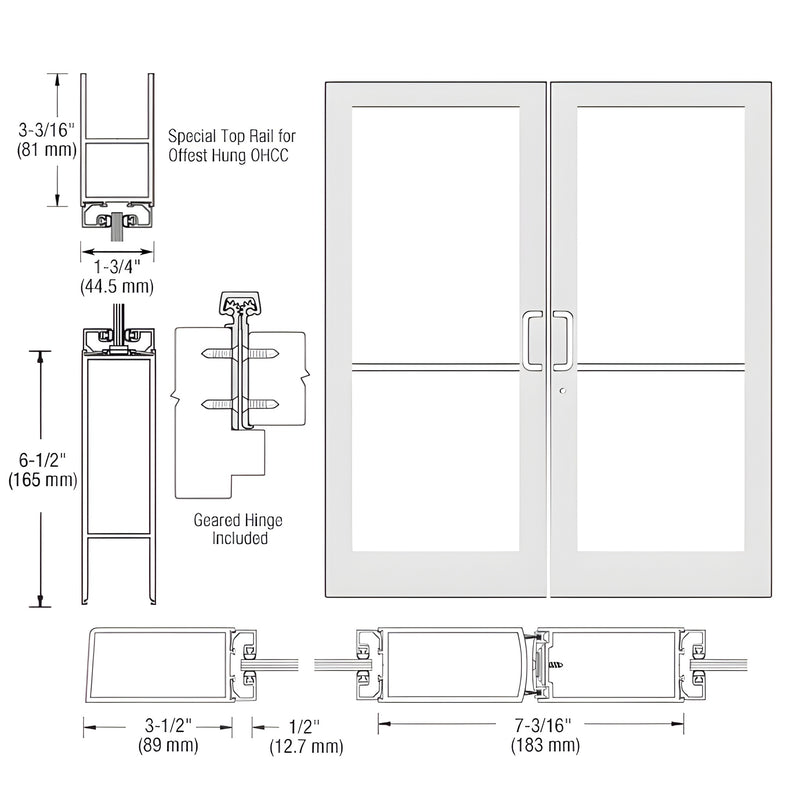

This Custom Medium Stile Entrance Door (SKU DC42952) features 3-1/2" (89 mm) stiles, a 3-3/16" (81 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Built for commercial and architectural applications, the door ships with stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The design is tempered-glass-ready and custom-fabricated to accept a wide range of optional hardware applications, making it ideal for custom commercial entrance door projects.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed on site.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs prior to ordering, please request weight information by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor and settings.
Order SKU DC42952 or contact CRL Customer Service for exact shipping weights and available custom hardware options.
BIM Objects - rvt
