CRL-U.S. Aluminum White KYNAR® Paint Custom Single Series 400 Medium Stile Offset Hung Geared Hinge Entrance Door for Surface Mount Closer

• Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
• Accommodates 1/4” (6 mm) Tempered Glass With the Option for 1” (25 mm) Tempered Insulating Unit (Glass Not Included)
• 9-1/2" (241 mm) Bottom Rail is Installed to Comply With A.D.A.
• Custom Fabricated to Accept Optional Hardware Applications

This

Custom Medium Stile Entrance Door

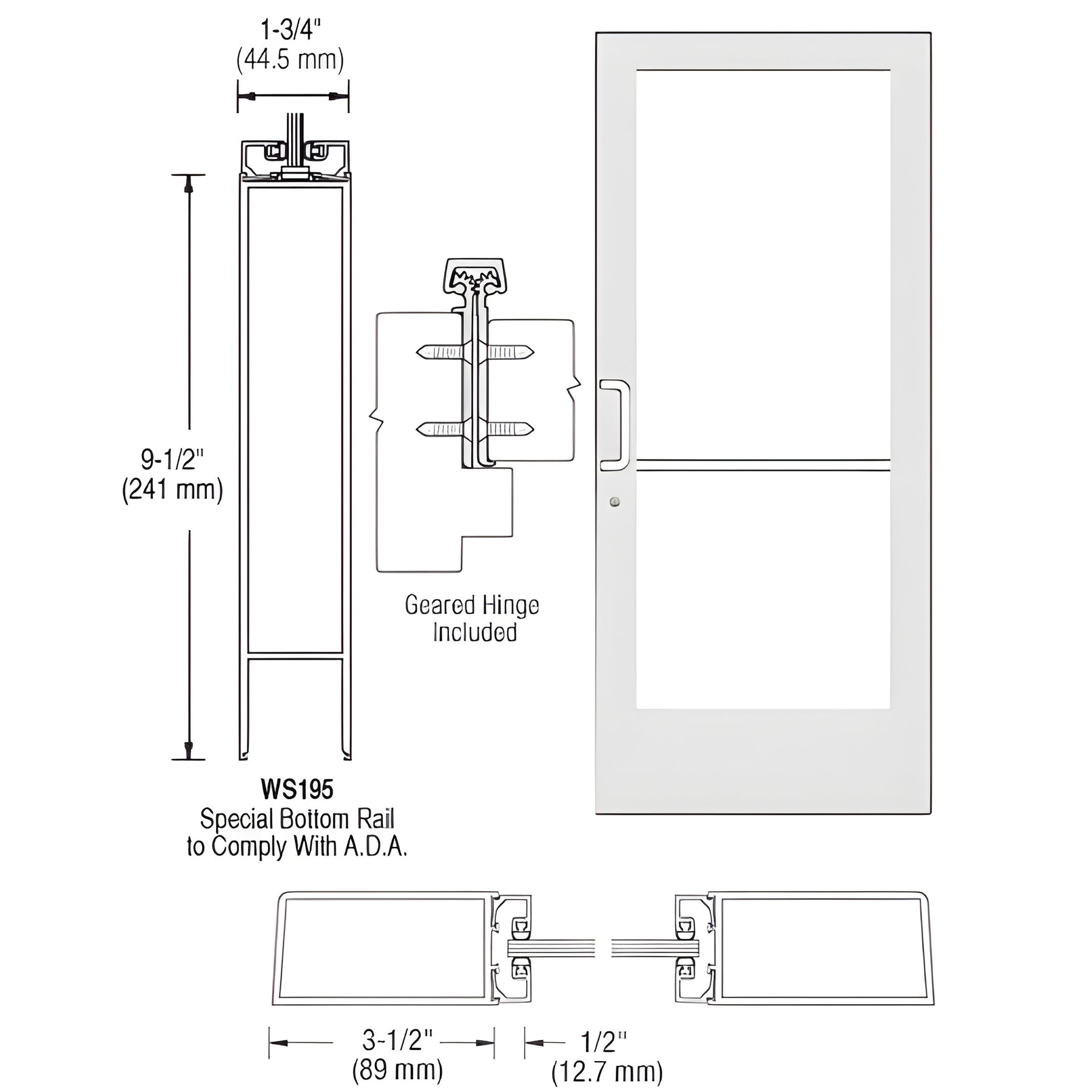

is built with 3-1/2" (89 mm) Stiles, 3-3/16" (81 mm) Top Rail, and 9-1/2" (241 mm) Bottom Rail. Standard features include stiles for Gear Hinge hardware, glass stops for 1/4” (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications.

Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit. Door widths less than 36" (914 mm) may not pass A.D.A. Inspection.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
