CRL-U.S. Aluminum Series 450 2ft Transom Gear Hinge Complete (KYNAR)
CRL-U.S. Aluminum Series 450 2ft Transom Gear Hinge Complete (KYNAR)
Regular price
$1,383.55 CAD
Regular price
Sale price
$1,383.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FR62871
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview

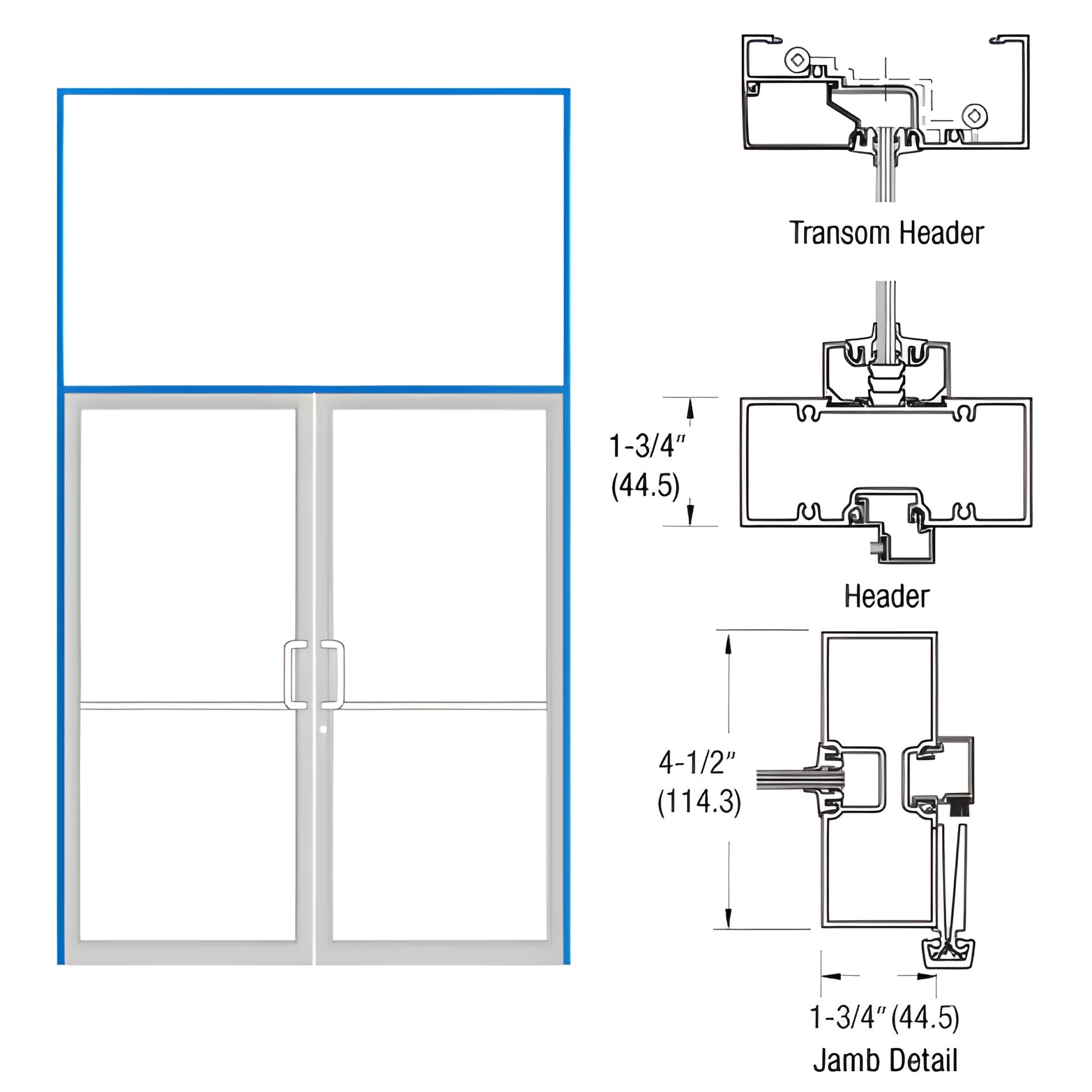

- 1-3/4" x 4-1/2" (44.5 x 114.3 mm) Gear Hinge Transom Frame with Tubular Jambs (SKU: FR62871)
- Includes standard flushbolts for inactive leaf security
- Custom size — factory-built to fit your opening
- Aluminum threshold included for weather protection and smooth door operation
Complete Frame — Built to accommodate a base 72" x 84" gear hinge door with provisions for a surface mount closer. Constructed using JS455 tubular jambs and JS467 header. Door stops, weatherstrip, standard hardware, and hardware preparations are included for straightforward installation.
All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to attach the frame to the opening. Ideal for commercial exterior entries needing a durable gear hinge transom frame and aluminum threshold combination.
Order FR62871 today — contact us for lead times, custom sizing, or installation questions.
