CRL-U.S. Aluminum Series 451 1 ft Tubular Gear Hinge, Clear Anodized
CRL-U.S. Aluminum Series 451 1 ft Tubular Gear Hinge, Clear Anodized
Regular price
$1,137.37 CAD
Regular price
Sale price
$1,137.37 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FR91811
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview

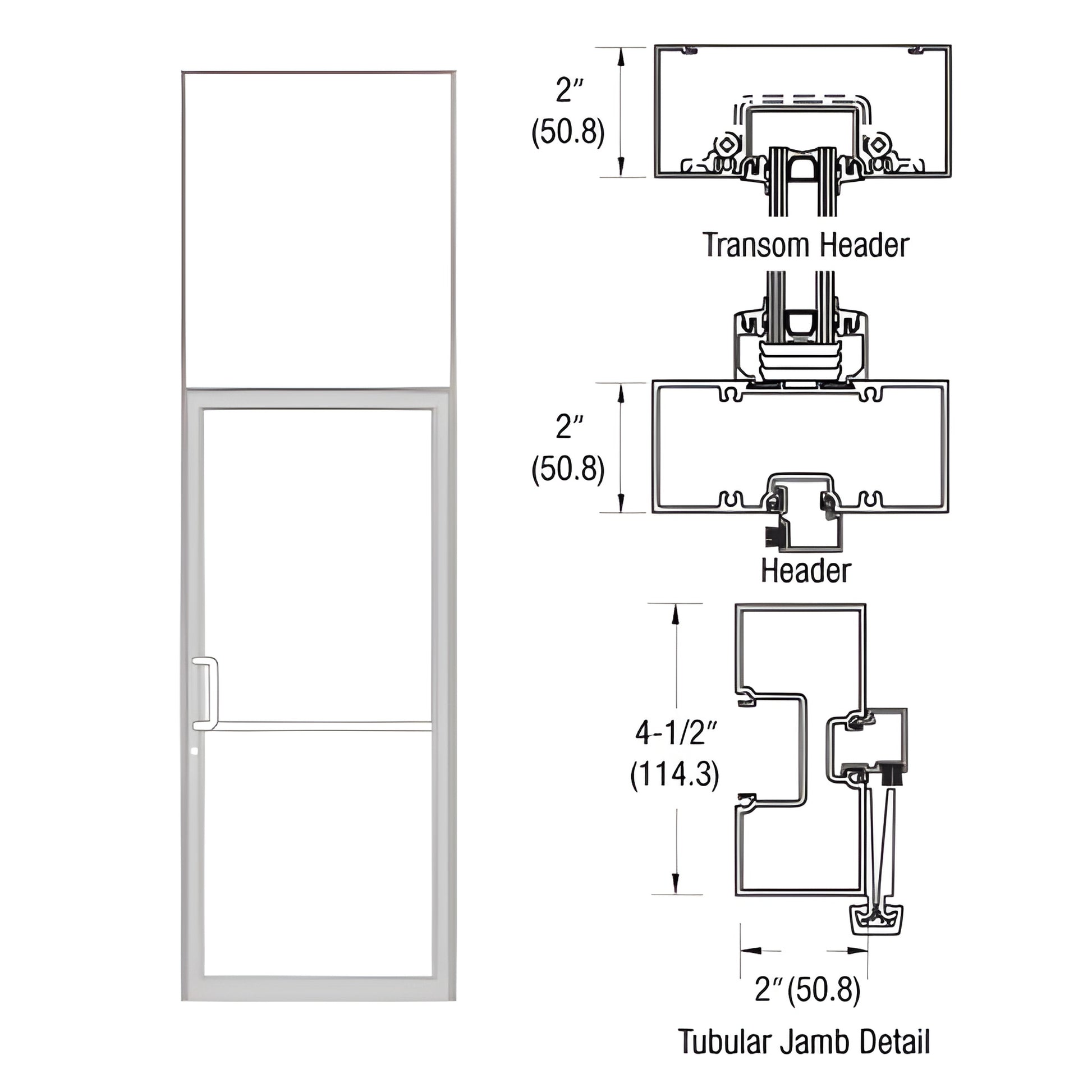

- 2" x 4-1/2" (50.8 x 114.3 mm) Gear Hinge Transom Frame with Tubular Jambs
- With Standard Hookbolts
- Custom Size
- Aluminum Threshold is Included
Complete Frame — Built to accommodate a base 36" x 84" gear-hinge door for a surface mount closer. Constructed with 1S456 tubular jambs and 1S467 header. Includes door stops, weatherstrip, standard hardware, and hardware preparations for quick installation.
All fasteners, standard hardware, and hardware fabrication for frame assembly are included; customer supplies fasteners to secure the frame to the opening. Note: frame widths less than 40" (1.0 m) may not pass A.D.A. inspection.
SKU: FR91811 — Gear hinge transom frame, aluminum threshold included, ideal for commercial entry doors and retrofit projects requiring a surface-mount closer.
Order SKU FR91811 or contact CRL Customer Service for a quote and exact shipping weight.
