CRL-U.S. Aluminum Series 550 Black Anodized Wide-Stile Butt Hinge
CRL-U.S. Aluminum Series 550 Black Anodized Wide-Stile Butt Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE51422
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept optional hardware applications
- Includes standard push/pull hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
- Accommodates 1/4" (6 mm) tempered glass (by others); optional 1" (25 mm) tempered insulating unit available (glass not included)

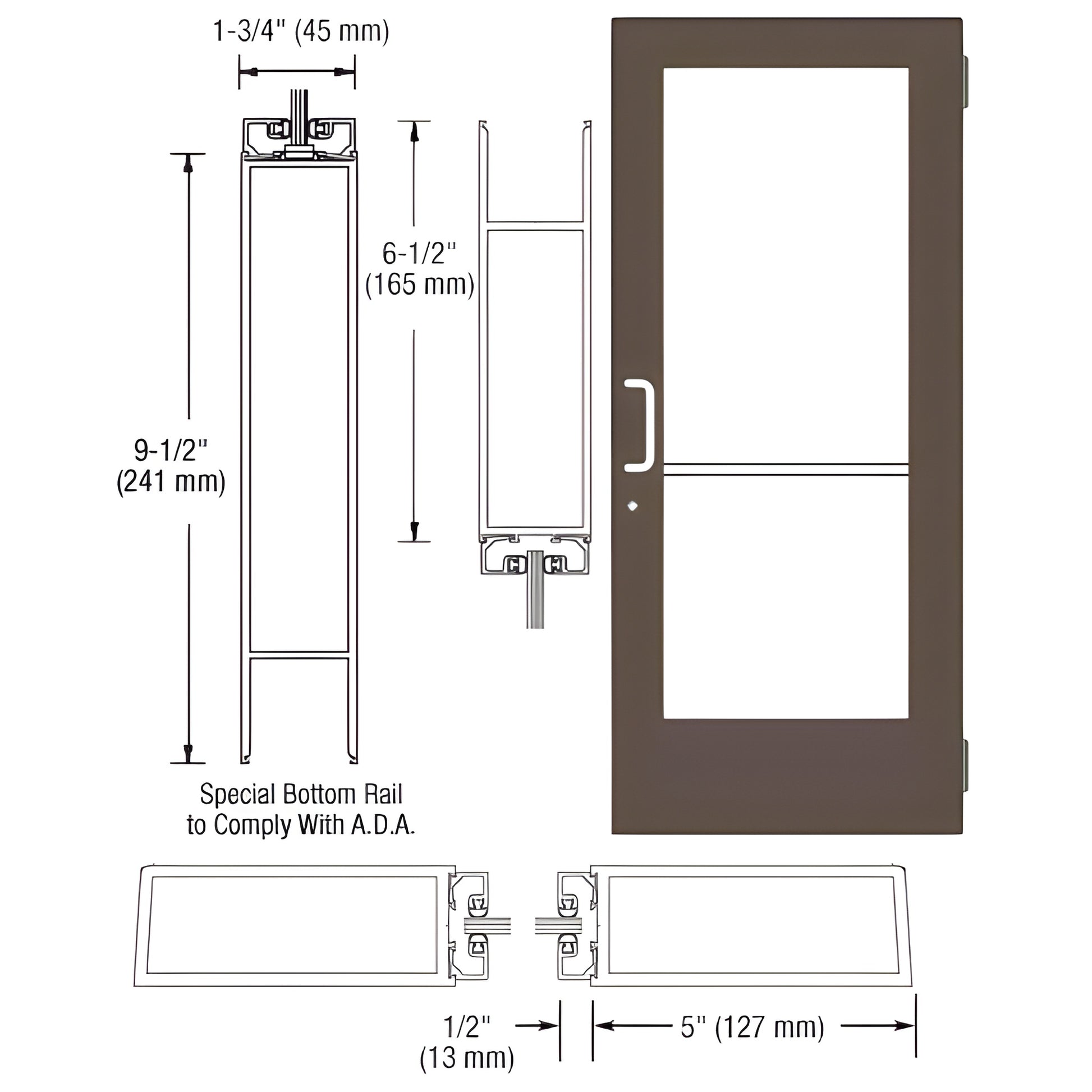

This Custom Wide Stile Entrance Door (SKU: DE51422) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Designed for commercial entrances, the wide stile construction and prepared glass stops support 1/4" tempered panels and can be custom fabricated to accommodate a wide range of optional hardware — ideal for storefront, office, and institutional applications.
Note: Protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to prevent transit damage. Door widths under 36" (914 mm) may not meet ADA inspection requirements.
Order SKU DE51422 or contact CRL Customer Service for custom hardware options and lead times.
Specifications
BIM Objects - rvt
