Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor settings.
CRL
CRL-U.S. Aluminum Series 550 Black Anodized Wide-Stile Butt Hinge Pair
CRL-U.S. Aluminum Series 550 Black Anodized Wide-Stile Butt Hinge Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DZ52422
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Selected panic hardware and one cylinder ordered and added separately
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be used (glass not included)
- 9-1/2" (241 mm) bottom rail option available to meet A.D.A. and Title 24 applications
- Custom fabricated to accept a wide range of optional hardware applications
- Includes standard panic pull and hanging hardware; protruding hardware (handles, pivots, etc.) shipped boxed separately for customer installation

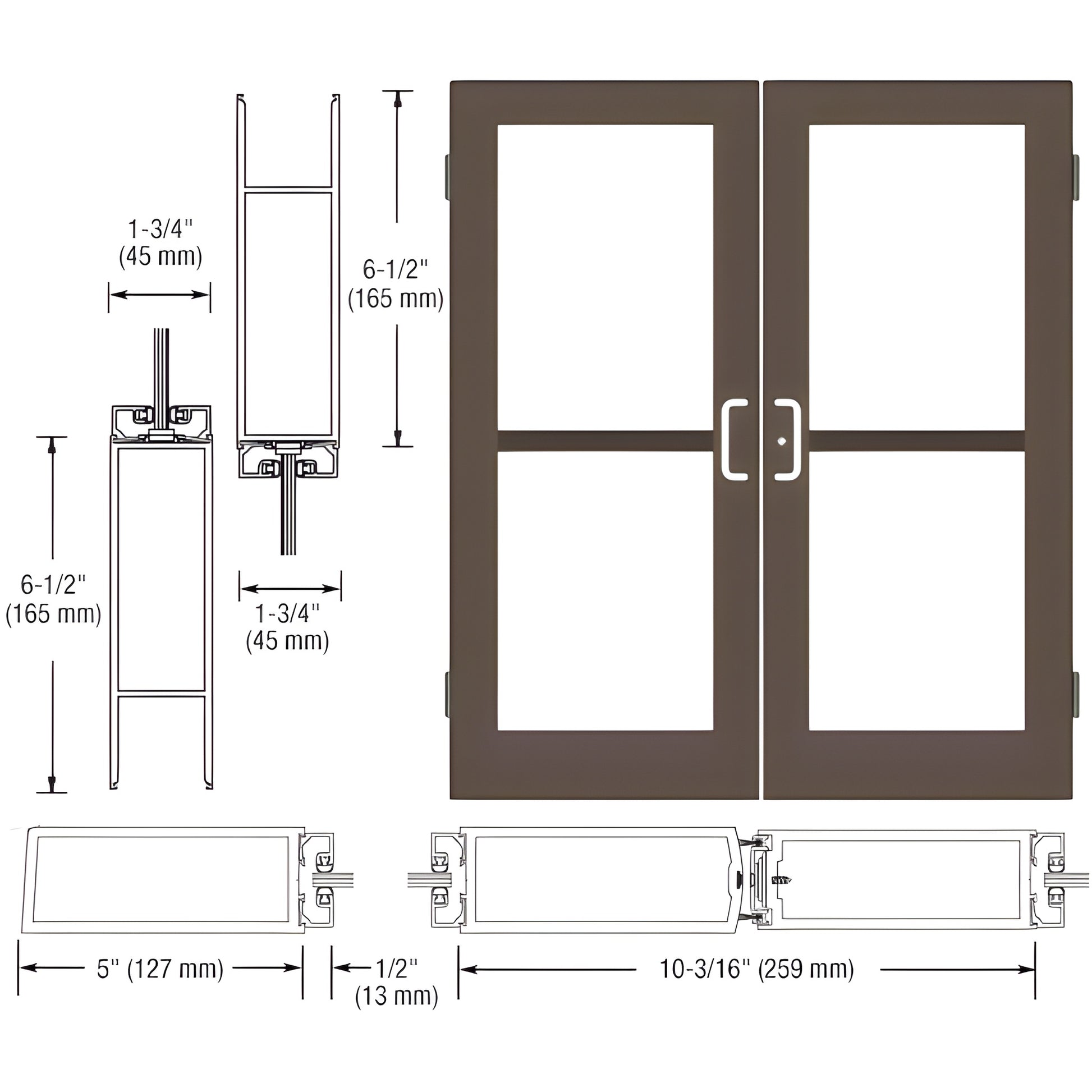

This Custom Wide Stile Entrance Door (SKU: DZ52422) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard construction includes stiles prepped for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (provided by others). Built for commercial applications, the door is ready for custom fabrication to accept optional hardware for high-traffic entrances, ADA-compliant entries, and Title 24 installations.
Customer must install included protruding hardware that is boxed separately to prevent transit damage.
Order SKU DZ52422 or contact CRL for custom hardware options and lead times.
Specifications
BIM Objects - rvt
