CRL-U.S. Aluminum Series 550 Clear Anodized Geared Hinge Panic Door
CRL-U.S. Aluminum Series 550 Clear Anodized Geared Hinge Panic Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CZ51911
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A.
- Custom fabricated to accept a wide range of optional hardware applications
- Includes standard panic pull, hanging hardware, concealed vertical-rod panic hardware, and one cylinder
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)

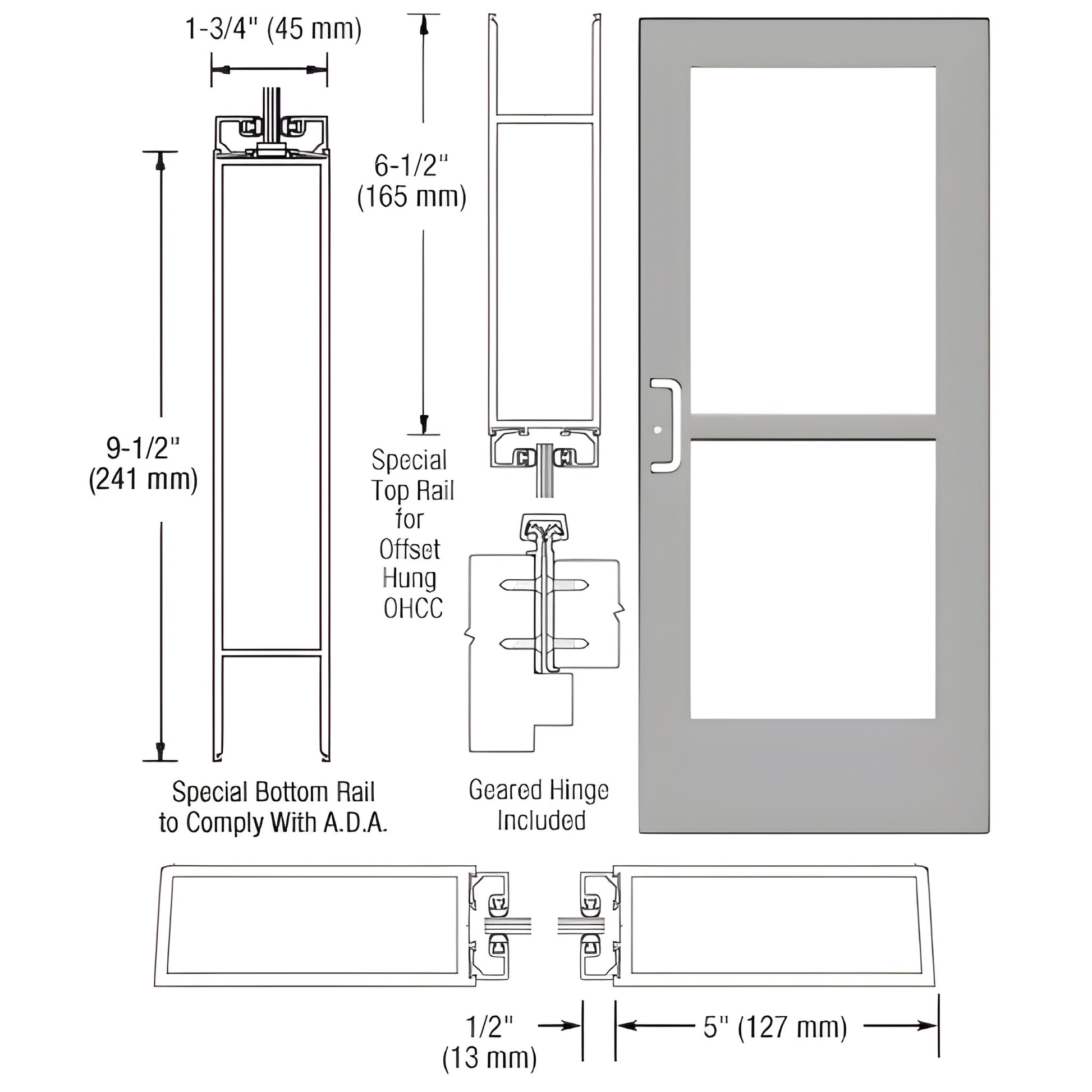

This CRL Custom Wide Stile Entrance Door (SKU: CZ51911) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) ADA-compliant bottom rail. Built for commercial applications, it ships with stiles prepped for Gear Hinge hardware and glass stops for 1/4" tempered glass (by others). Custom fabrication accommodates optional commercial-grade hardware such as concealed vertical-rod panic devices and a variety of pull/lever configurations—ideal for storefronts, retail entrances, and accessible commercial doors.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order CZ51911 today or contact CRL for custom hardware options and shipping details.
Specifications
BIM Objects - rvt
