CRL-U.S. Aluminum Series 550 Clear Anodized Wide Stile Butt Hinge Pair
CRL-U.S. Aluminum Series 550 Clear Anodized Wide Stile Butt Hinge Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SR52511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit available (glass not included)
- Custom fabricated
- Typically used in auto and boat dealerships

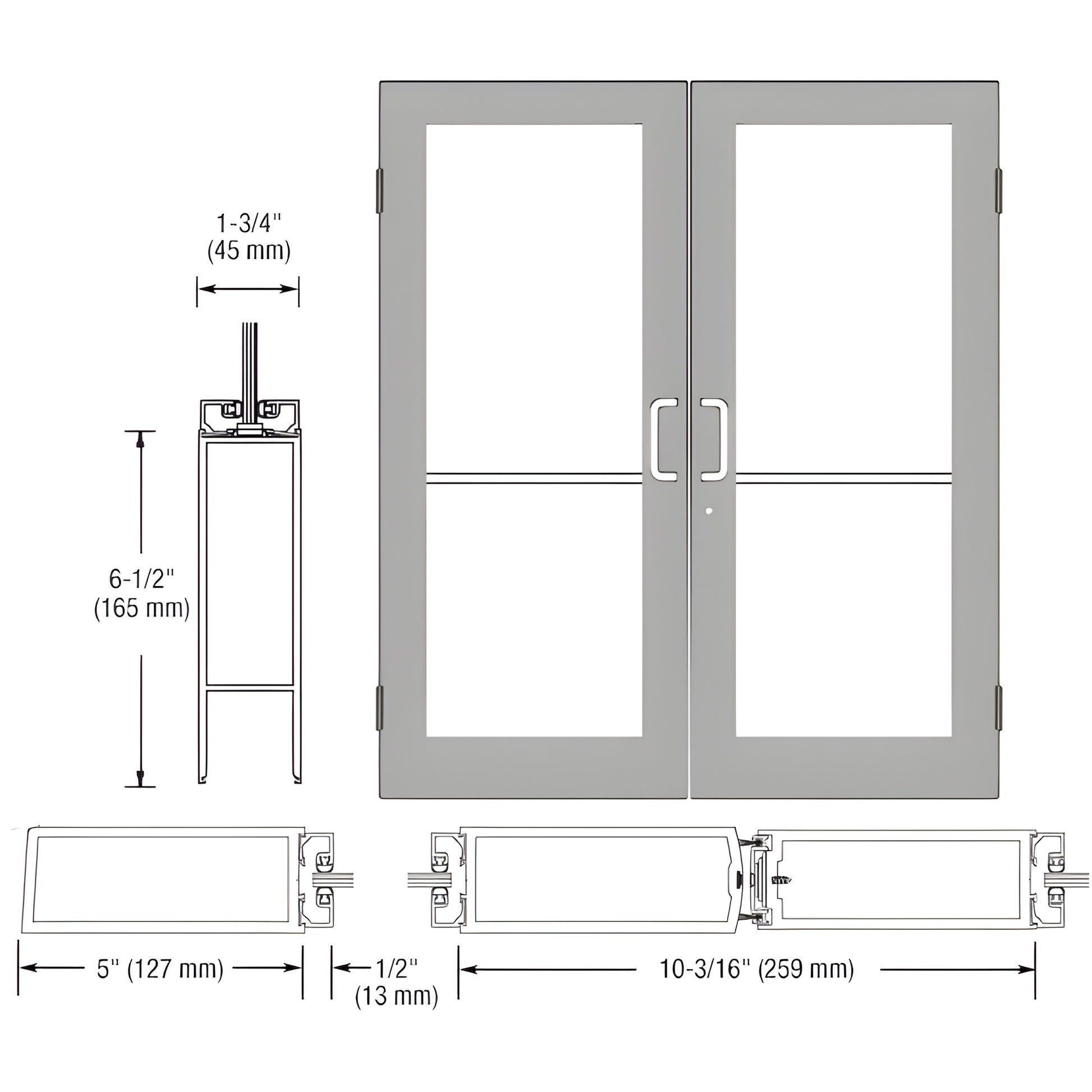

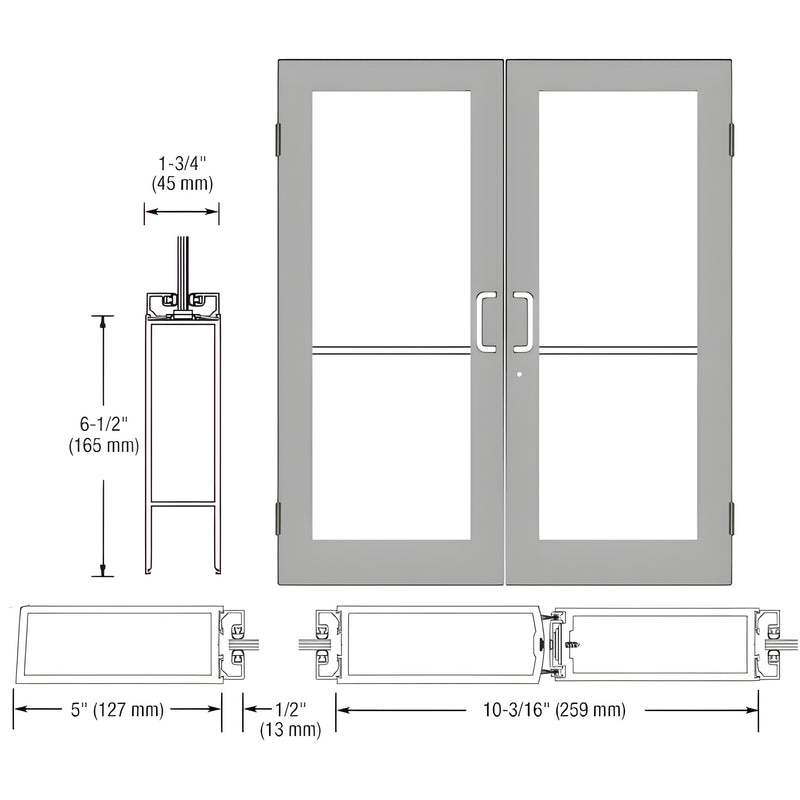

This Custom Wide Stile Showroom Door (SKU: SR52511) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard design includes stiles prepared for butt-hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass. Built for custom hardware applications and storefront or showroom installations where a durable, wide-stile appearance is desired. Glass and insulating glass units are sold separately.
Customer-installed protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed after delivery.
Specifications
BIM Objects - rvt
