CRL-U.S. Aluminum Series 550 Entrance Door Butt Hinge - Bronze/Black
CRL-U.S. Aluminum Series 550 Entrance Door Butt Hinge - Bronze/Black
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE51522
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders — ideal for commercial entry security
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be accommodated (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements
- Custom fabricated to accept a wide range of optional hardware applications for tailored commercial installations

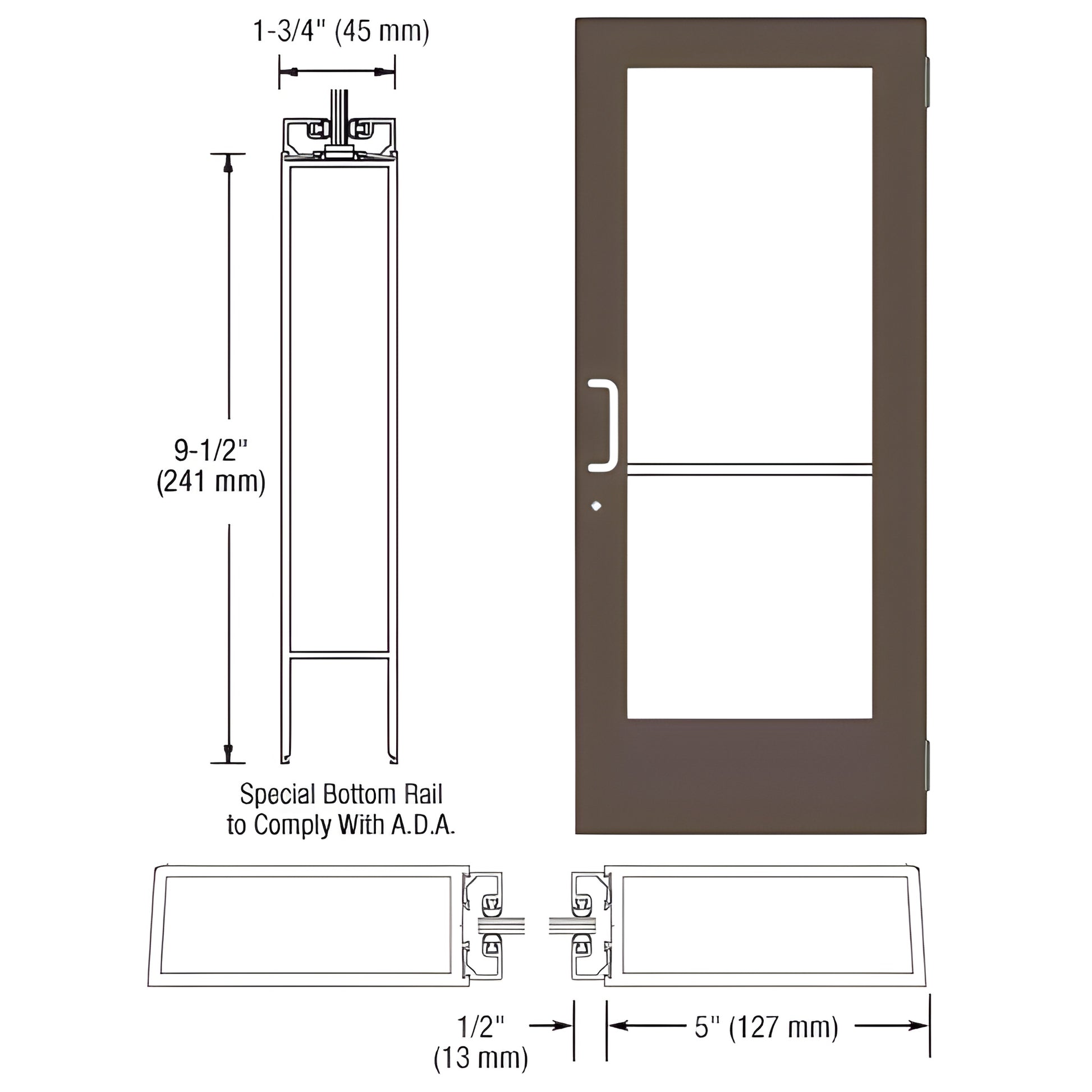

This Custom Wide Stile Entrance Door (SKU: DE51522) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard fabrication includes stiles for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). The door is supplied ready for custom hardware installation and is suited for high-traffic commercial and storefront use.
Note: Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection criteria. Glass is not included.
Specifications
BIM Objects - rvt
