CRL-U.S. Aluminum Series 550 Offset Pivot Door - Surface Mount Closer
CRL-U.S. Aluminum Series 550 Offset Pivot Door - Surface Mount Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE51211
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1
Overview
- Includes standard push/pull, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders
- Accepts 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating glass unit can be accommodated (glass not included)
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements
- Custom fabricated to accept a wide range of optional hardware applications

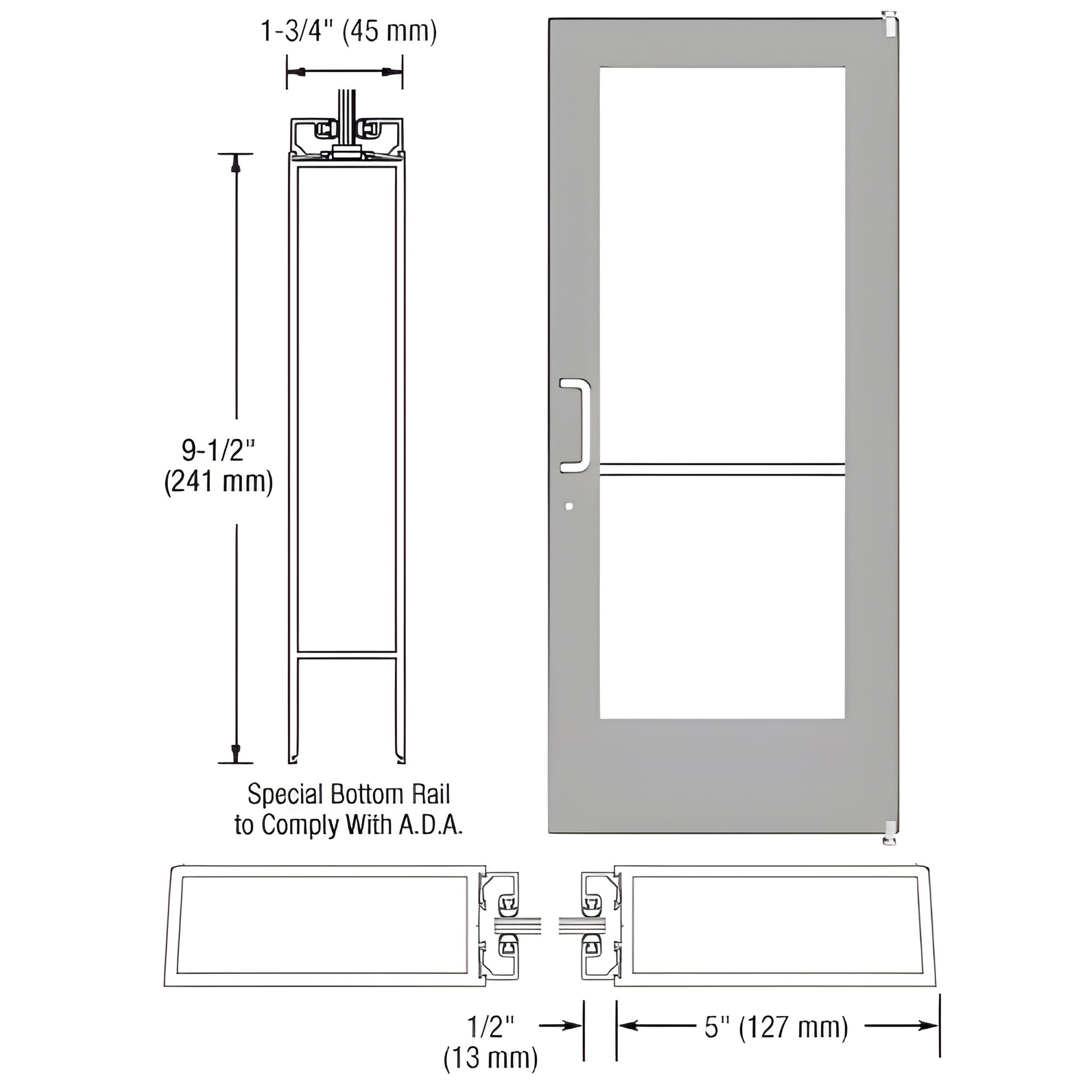

This Custom Wide Stile Entrance Door (SKU: DE51211) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Built for commercial storefronts and accessible-entry applications, it includes stiles for offset pivot hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The unit ships with protruding hardware boxed separately—customers must install handles, pivots, and similar items after delivery. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection criteria.
Order SKU DE51211 for a customizable, ADA-ready commercial entrance solution—contact us to confirm options and lead times.
Specifications
BIM Objects - rvt
