CRL-U.S. Aluminum Series 550 White Kynar® Wide Stile Butt Hinge Pair
CRL-U.S. Aluminum Series 550 White Kynar® Wide Stile Butt Hinge Pair
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE52552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 9-1/2" (241 mm) bottom rail is ADA-compliant for accessible entries
- Custom fabricated to accept a wide range of optional hardware applications
- Includes active and inactive leaf with all standard hardware
- Accommodates 1/4" (6 mm) tempered glass (by others) with an option for 1" (25 mm) tempered insulating unit; glass not included

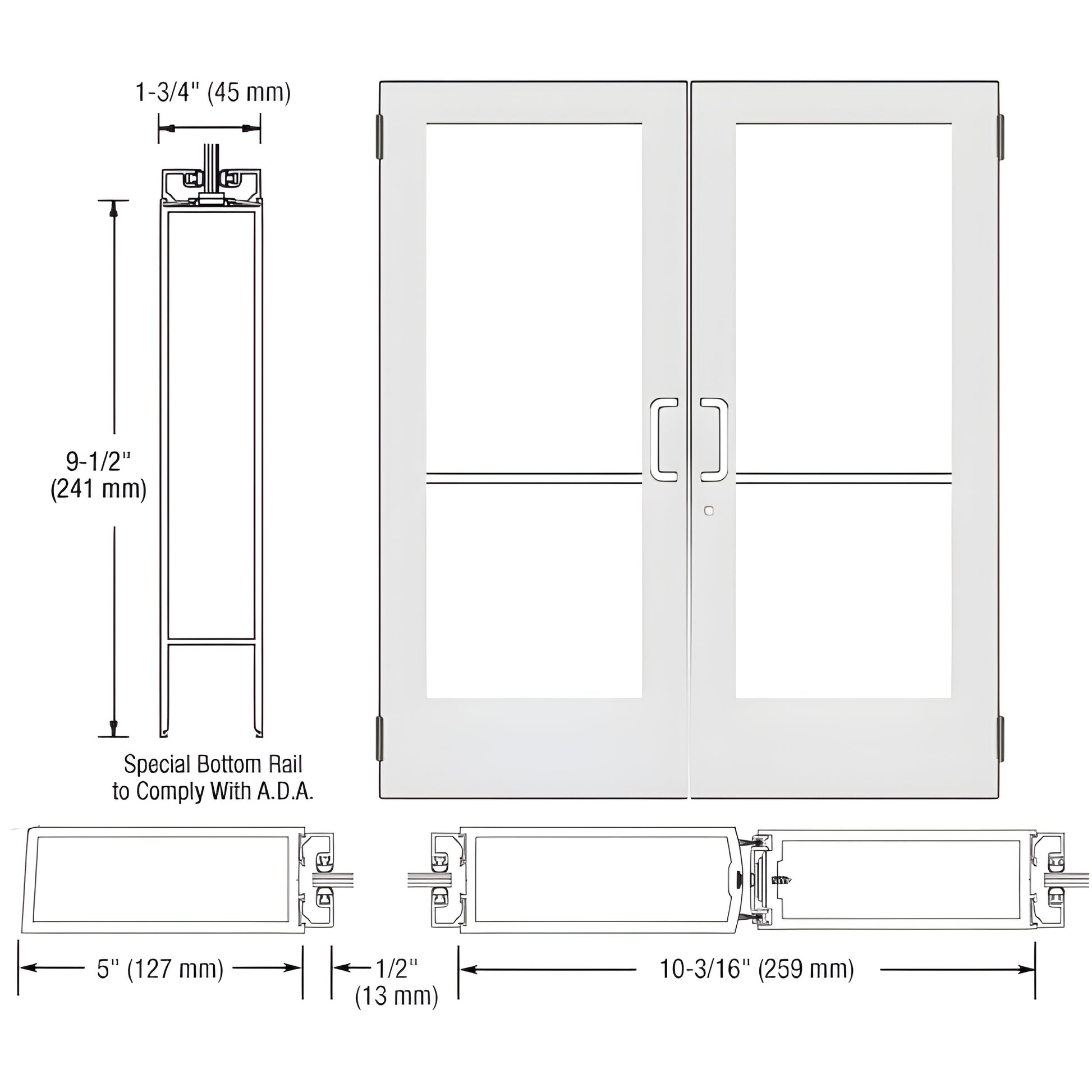

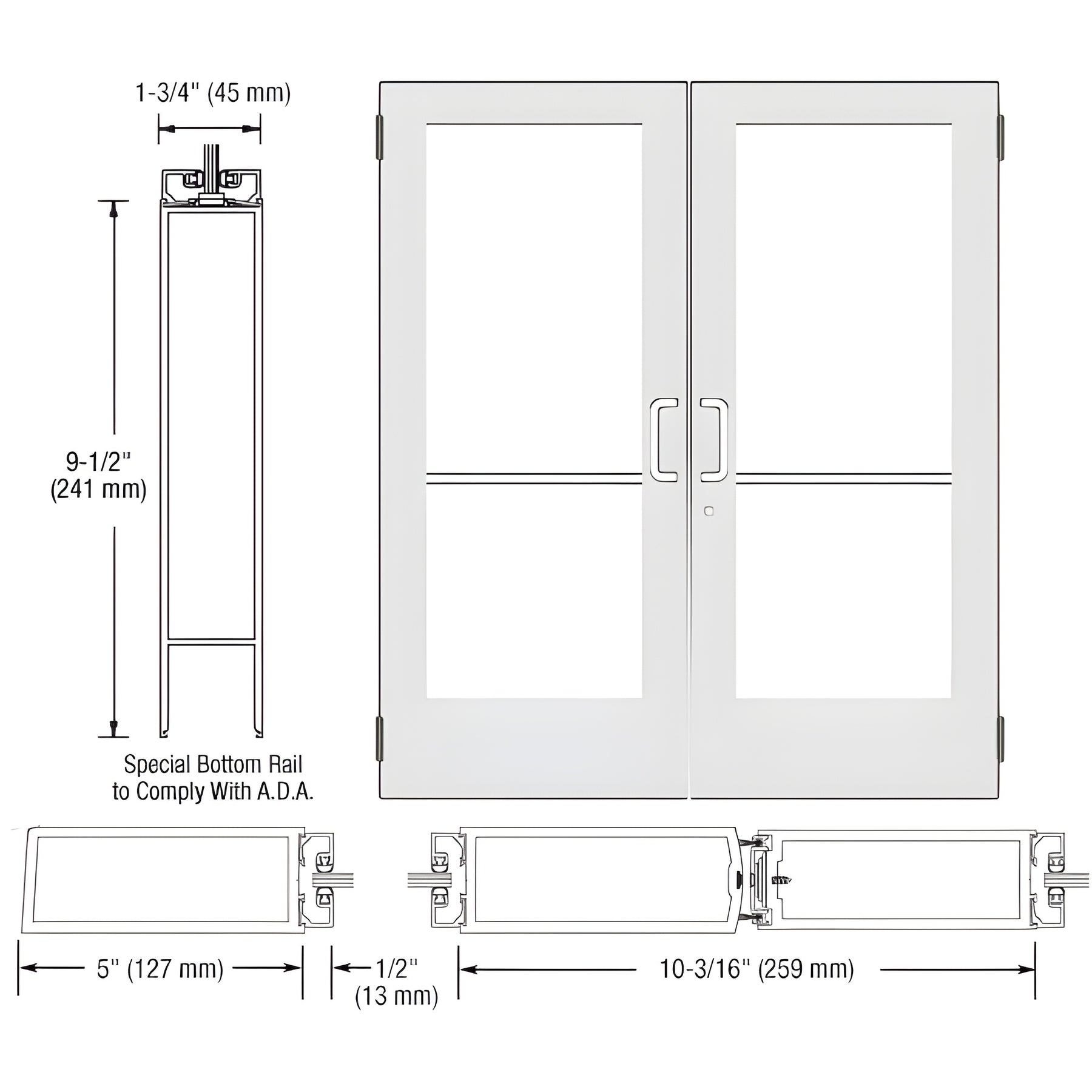

This Custom Wide Stile Entrance Door (SKU: DE52552) is a commercial-grade glass entrance solution built with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard features include stiles prepped for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass. The door is ready for custom fabrication to support optional hardware applications, making it ideal for commercial storefronts, office entrances, and ADA-compliant building entryways.
Note: Protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer.
Order SKU DE52552 for a customizable, ADA-compliant commercial wide stile entrance door—contact us to get started.
Specifications
BIM Objects - rvt
