CRL-U.S. Aluminum Series 550 Wide-Stile Butt Hinge, Entrance Door

• Includes standard panic pull, hanging hardware, concealed vertical rod panic hardware, and one cylinder (SKU: CZ51522)
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating glass unit available (glass not included)
• 9-1/2" (241 mm) bottom rail installed to meet A.D.A. requirements
• Custom fabricated to accept a wide range of optional hardware applications

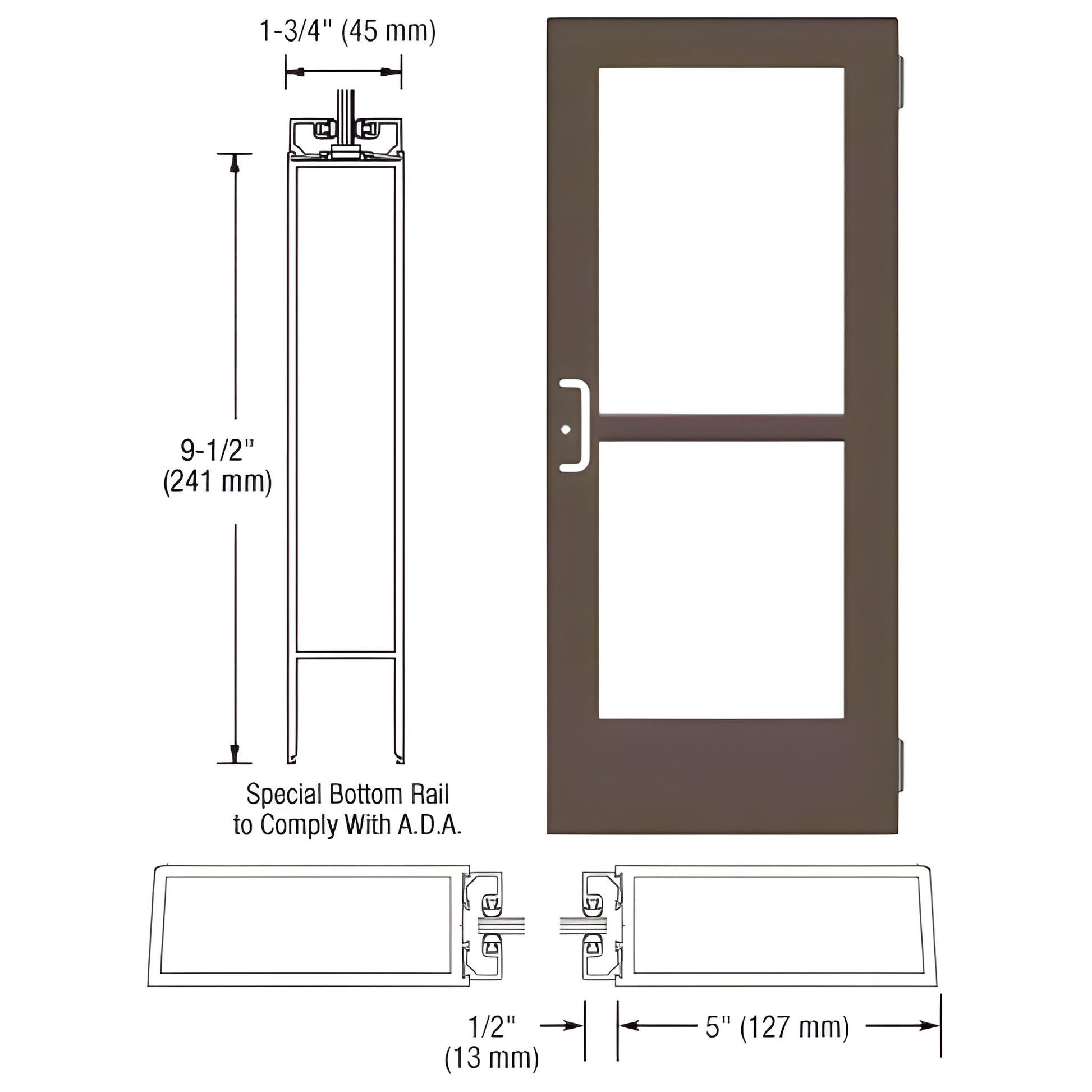

This CRL Custom Wide Stile Entrance Door is engineered for commercial and retail storefronts with 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard features include stile reinforcement for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The door ships with protruding hardware (handles, pivots, etc.) boxed separately to prevent transit damage—customer must install these items. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection criteria.

Ideal for commercial glass entrances requiring concealed vertical rod panic hardware and ADA-compliant bottom rails. Order SKU CZ51522 or contact us for fabrications and hardware options.
