CRL-U.S. Aluminum Series 550 Wide Stile Door - Single, Geared Hinge
CRL-U.S. Aluminum Series 550 Wide Stile Door - Single, Geared Hinge
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DC51952
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
White Kynar
Overview
- 6-1/2" (165 mm) Bottom Rail
- Includes Standard Push/Pull, Hanging Hardware, MS Hookbolt Lock, and Two Keyed-Alike Cylinders
- Custom Fabricated to Accept Optional Hardware Applications

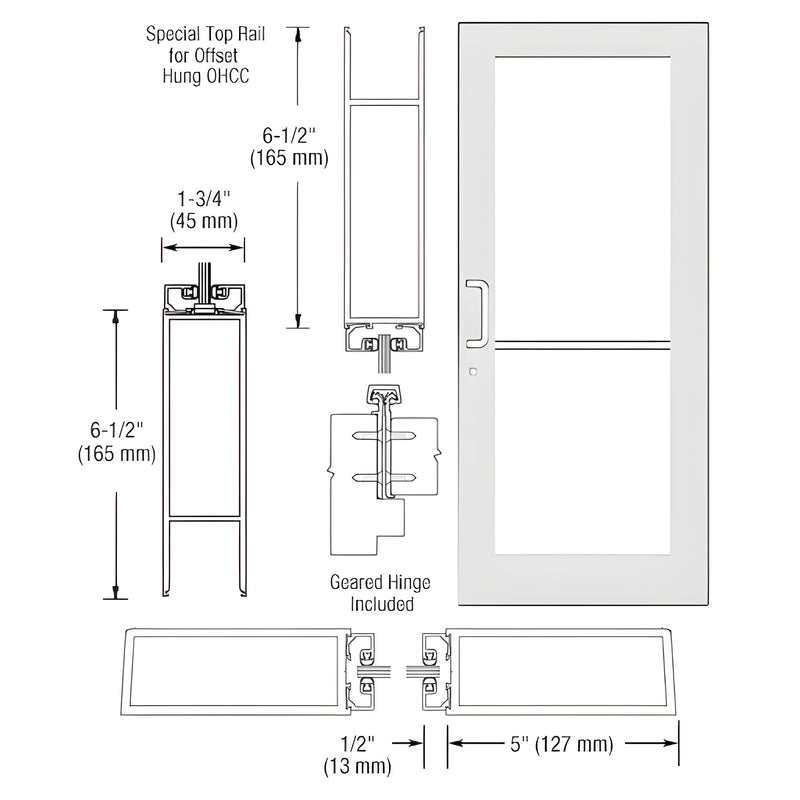

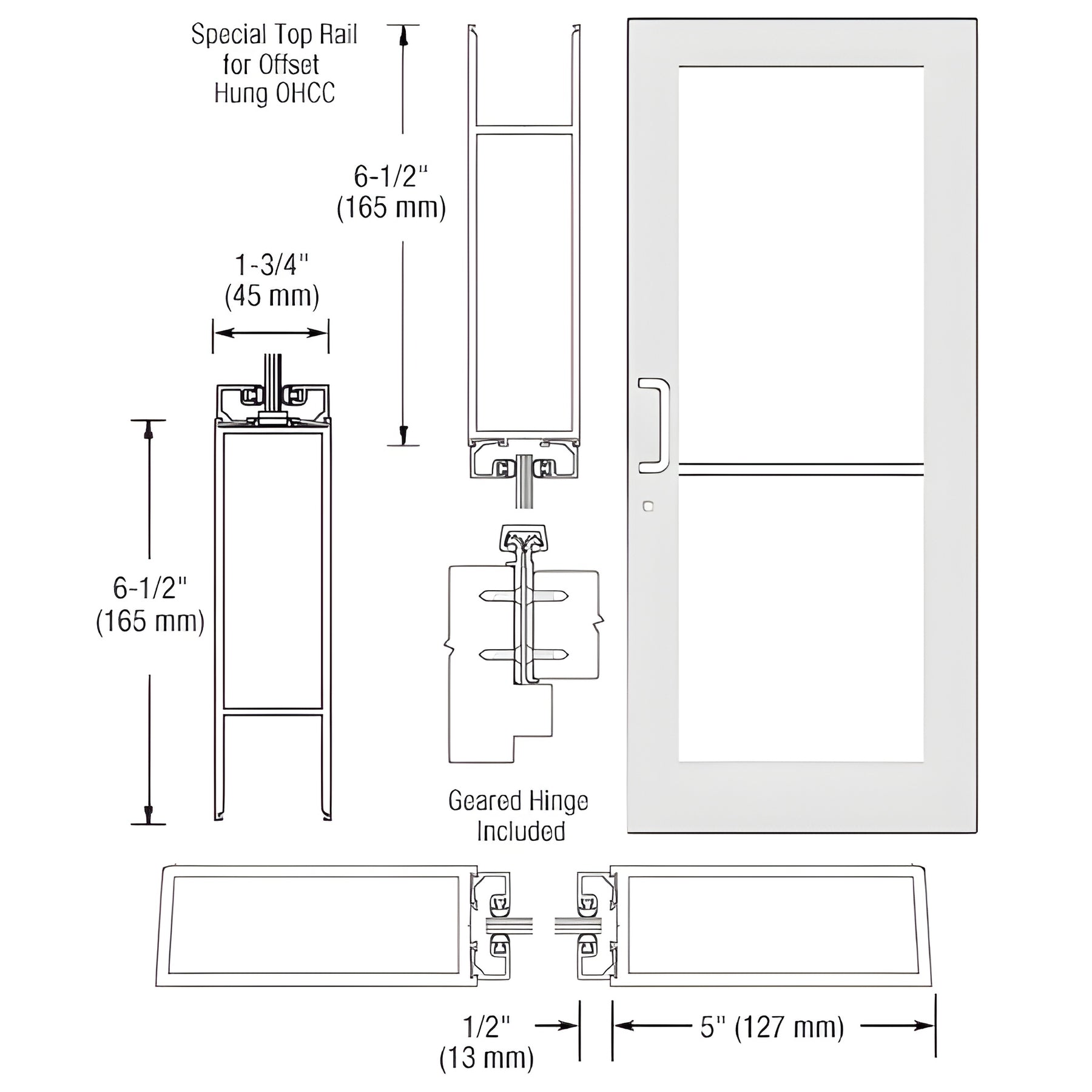

This Custom Wide Stile Entrance Door (SKU: DC51952) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail for commercial entrance applications. Standard preparation includes stiles for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The door is custom-fabricated to accept a wide range of optional hardware, making it ideal for retrofit and new-construction storefronts where custom hardware solutions are required.
Included hardware: push/pull set, hanging hardware, MS Hookbolt lock, and two keyed-alike cylinders. Note: protruding hardware (handles, pivots, etc.) is boxed separately and must be installed by the customer to avoid transit damage. Door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.
Order SKU DC51952 or contact us for pricing and custom hardware options.
Specifications
BIM Objects - rvt
