CRL-U.S. Aluminum Series 550 Wide-Stile Geared Hinge Entrance Door
CRL-U.S. Aluminum Series 550 Wide-Stile Geared Hinge Entrance Door
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DE51922
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be installed (glass not included)
- Includes standard push/pull hardware, hanging hardware, MS hookbolt lock, and two keyed‑alike cylinders for convenient master-key setups
- 9-1/2" (241 mm) bottom rail installed to comply with A.D.A. requirements for reduced thresholds
- Custom fabricated to accept a wide range of optional hardware applications for commercial storefronts and high-traffic entrances

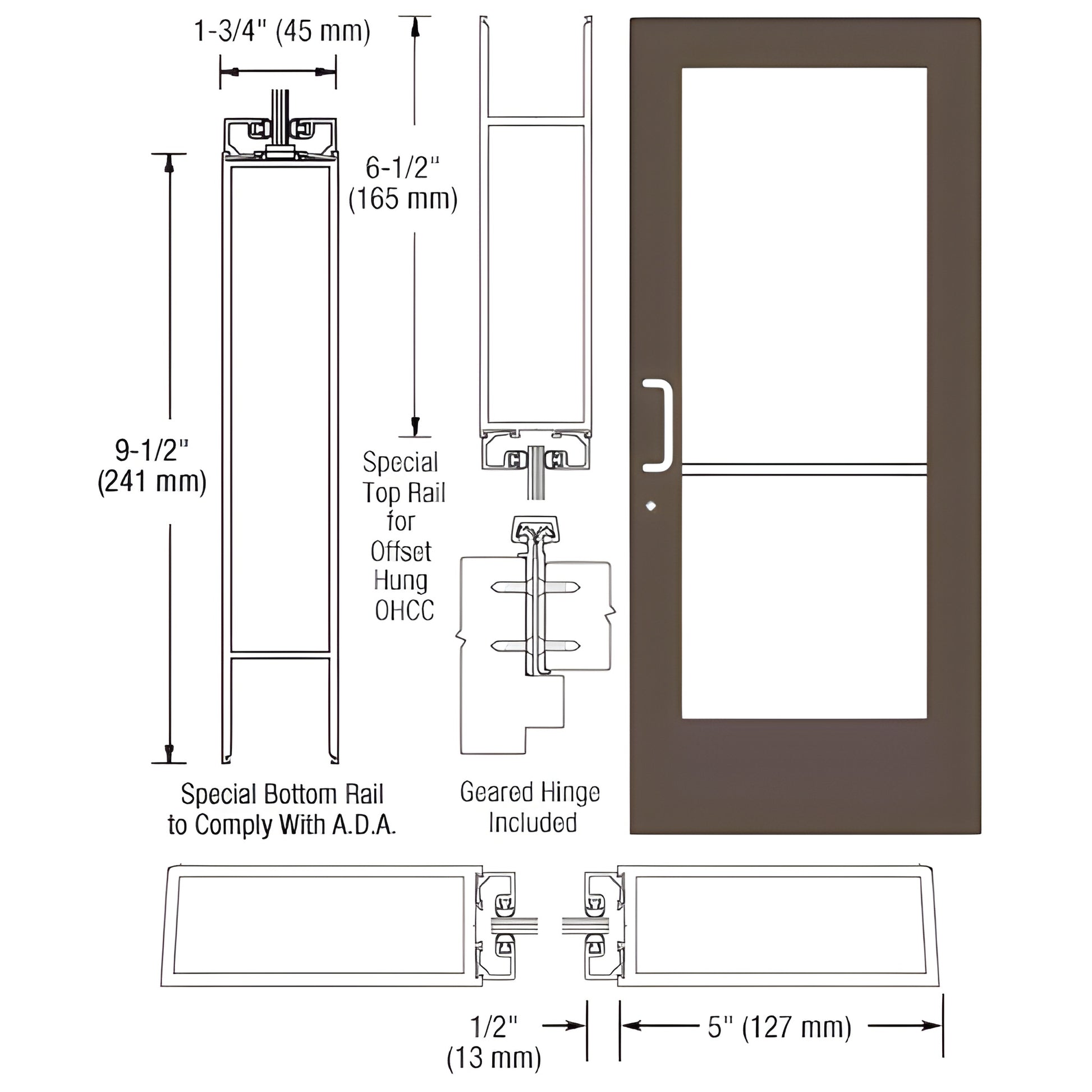

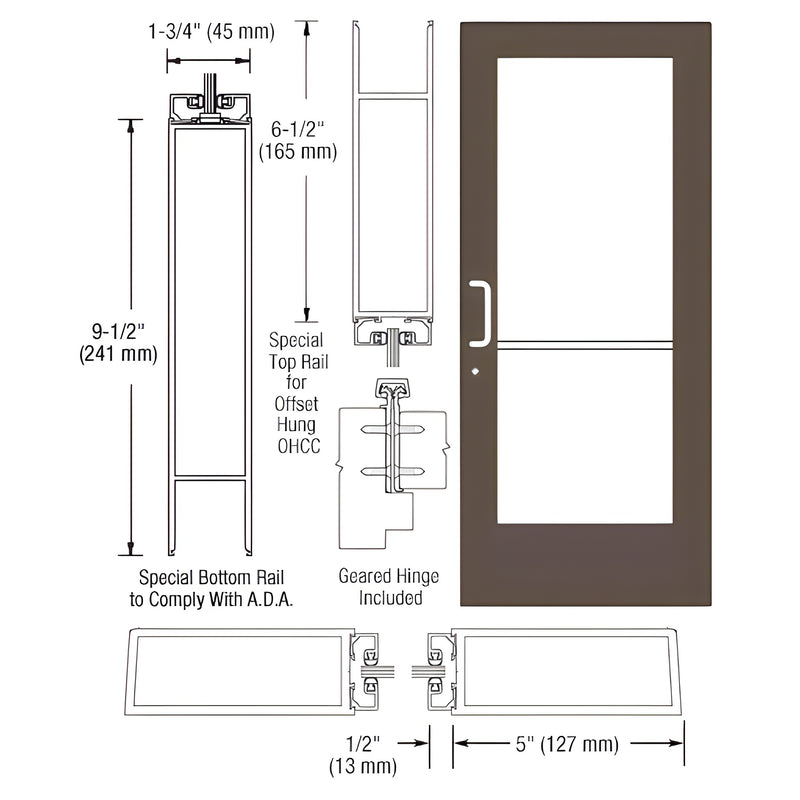

This Custom Wide Stile Entrance Door features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 9-1/2" (241 mm) bottom rail. Standard stiles are configured for Gear Hinge hardware and include glass stops for 1/4" (6 mm) tempered glass (provided by others). The door is ready for custom fabrication to accommodate optional commercial hardware and specialty glazing.
Note: Included protruding hardware (handles, pivots, etc.) ships boxed separately to prevent transit damage and must be installed by the customer. Door widths under 36" (914 mm) may not meet A.D.A. inspection criteria.
SKU: DE51922
Order this durable, ADA‑ready custom wide‑stile entrance door for commercial storefronts today or contact us for custom hardware and glazing options.
Specifications
BIM Objects - rvt
