Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Accommodates 1/4" (6 mm) tempered glass; optionally accepts 1" (25 mm) tempered insulating glass unit (glass not included)
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept optional hardware applications for commercial and storefront use
- Includes standard panic pull and hanging hardware
- Selected panic hardware and one cylinder ordered and added separately

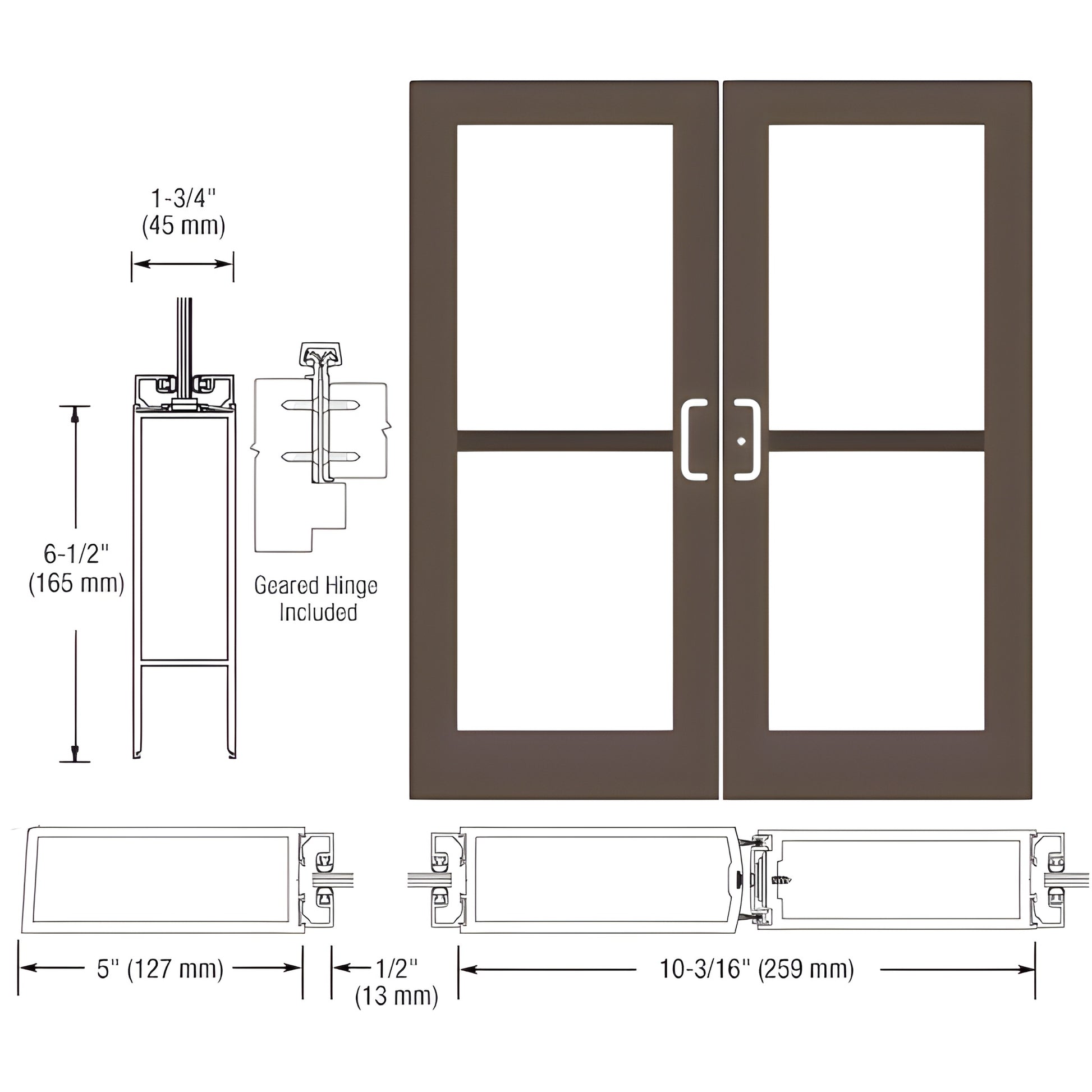

This Custom Wide Stile Entrance Door (SKU: DZ52822) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for storefront and commercial entrances, it includes stiles for Gear Hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). Built for custom fabrication, it supports a wide range of optional hardware applications and is ideal when you need a heavy-duty, tempered-glass-compatible entrance door.
Customer must install included protruding hardware (handles, pivots, etc.) boxed separately to prevent transit damage.
Order DZ52822 for a custom wide stile entrance door ready for commercial hardware installation — contact us to confirm options and lead times.
