CRL
CRL-U.S. Aluminum Series 550 Wide Stile Geared Hinge - Panic Hardware
CRL-U.S. Aluminum Series 550 Wide Stile Geared Hinge - Panic Hardware
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DZ52922
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Black Bronze Anodized Class 1
Overview
- Selected panic hardware and one cylinder ordered and added separately
- Includes standard panic pull and hanging hardware
- Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit can be used (glass not included)
- 6-1/2" (165 mm) bottom rail
- Custom fabricated to accept a wide range of optional hardware applications (ready for commercial-grade hardware)

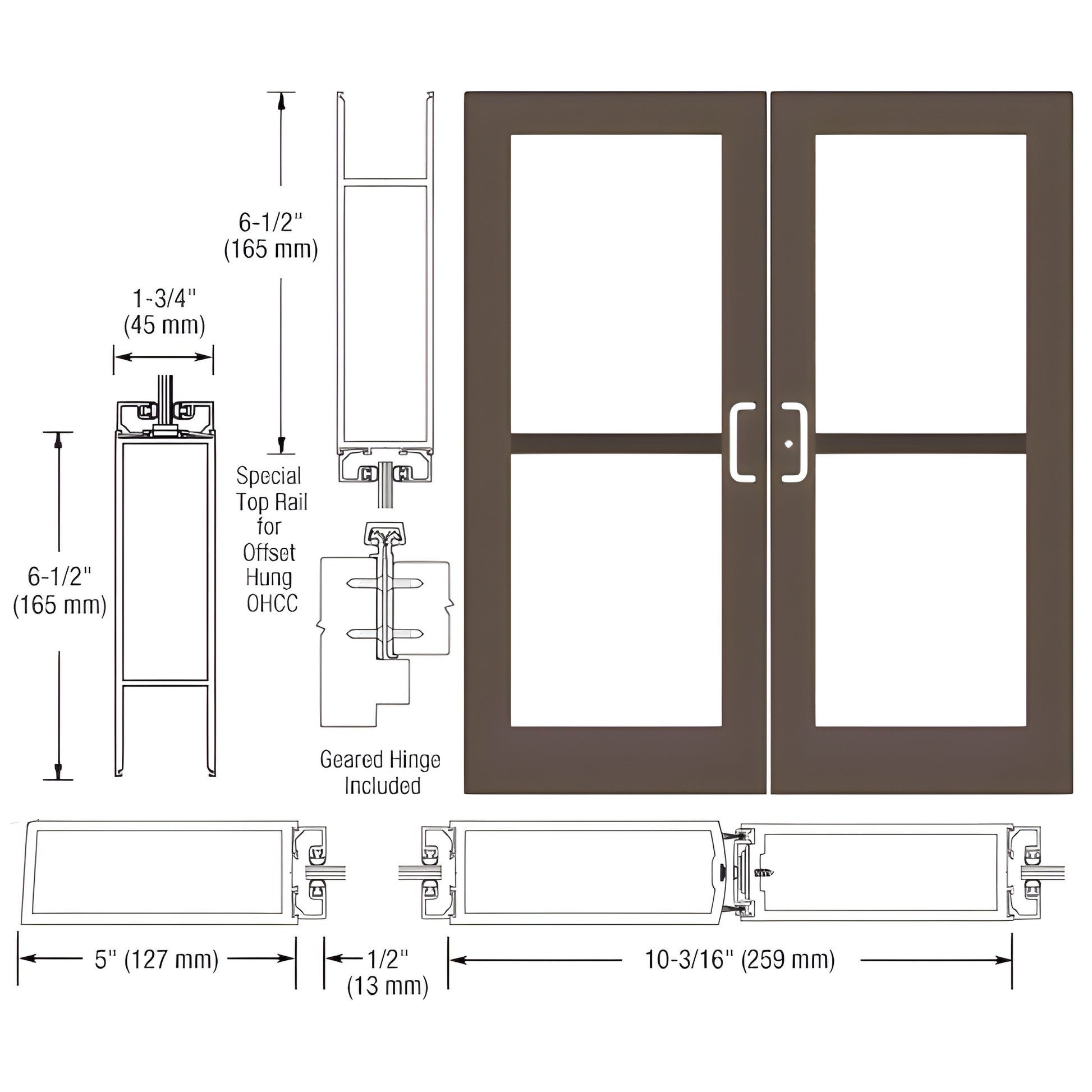

This Custom Wide Stile Entrance Door (SKU: DZ52922) features 5" (127 mm) stiles, a 5-1/2" (140 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard construction includes stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (by others). The door is custom-fabricated to accept optional commercial and ADA-compliant hardware, making it ideal for commercial entries, storefronts, and high-traffic installations.
Note: Customer must install included protruding hardware (handles, pivots, etc.), which is boxed separately to prevent transit damage.
Specifications
BIM Objects - rvt
