CRL-U.S. Aluminum Series 800 Clear Anodized Butt Hinge, Panic Door

• Selected panic hardware and one cylinder ordered and added separately
• Includes standard panic pull and hanging hardware
• Accommodates 1/4" (6 mm) tempered glass; optional 1" (25 mm) tempered insulating unit compatible (glass not included)
• 6-1/2" (165 mm) bottom rail
• Custom fabricated to accept optional hardware applications

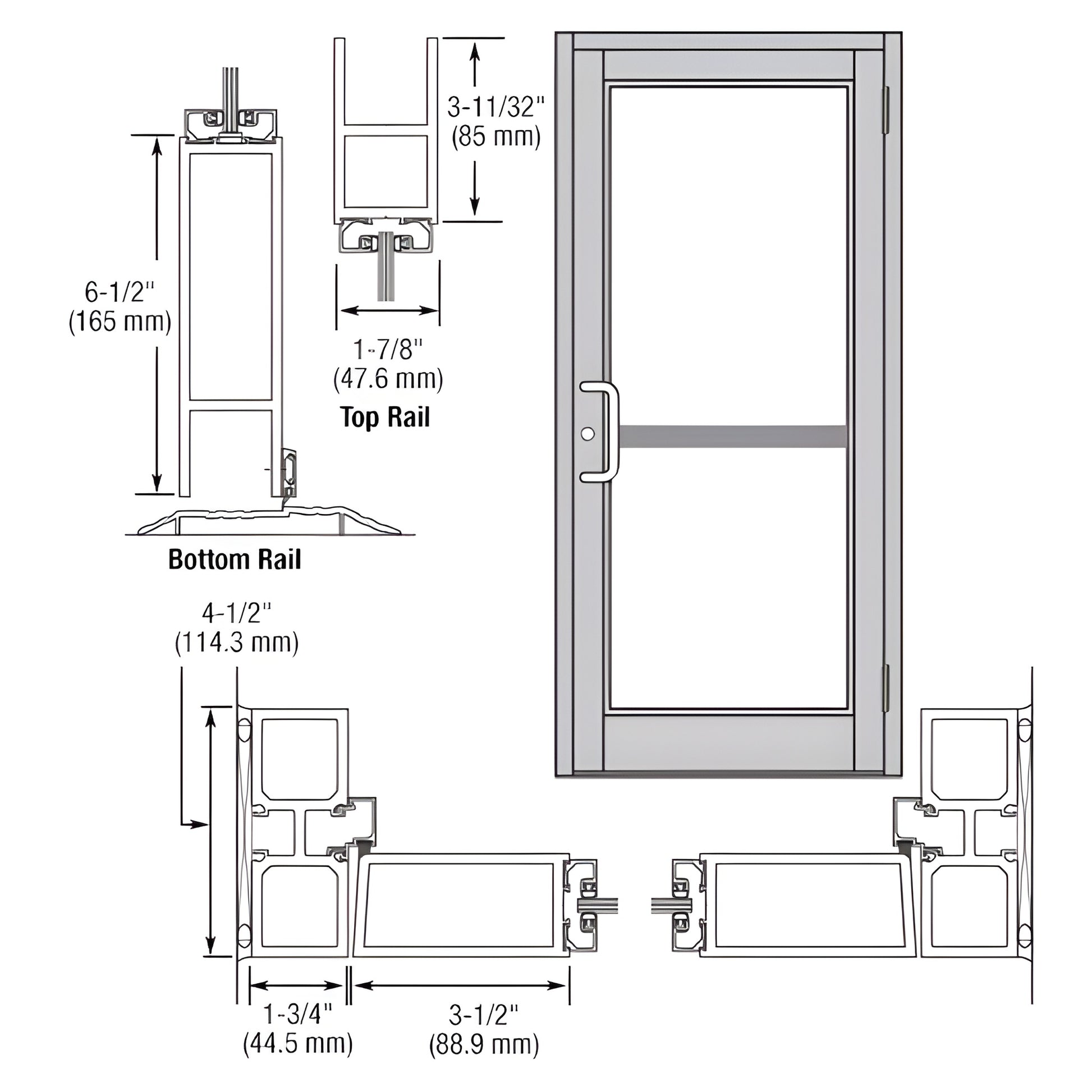

This Custom Durafront MS Entrance Door (SKU: DZ81511) features 3-1/2" (89 mm) stiles, a 3-11/32" (85 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Standard construction includes stiles configured for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (glass supplied by others). Engineered for custom fabrication, this door adapts to a wide range of optional commercial hardware applications and storefront configurations.

Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths less than 36" (914 mm) may not meet A.D.A. inspection requirements.

Durable, customizable Durafront MS entrance door for commercial storefronts—order SKU DZ81511 or contact us for custom hardware options and lead times.
