CRL-U.S. Aluminum Series 800 Durafront Geared Entrance Hinge, Black Anodized

• Custom fabricated to accept optional hardware applications
• Includes standard push/pull, hanging hardware, MS hookbolt lock, and two keyed-alike cylinders
• 6-1/2" (165 mm) bottom rail

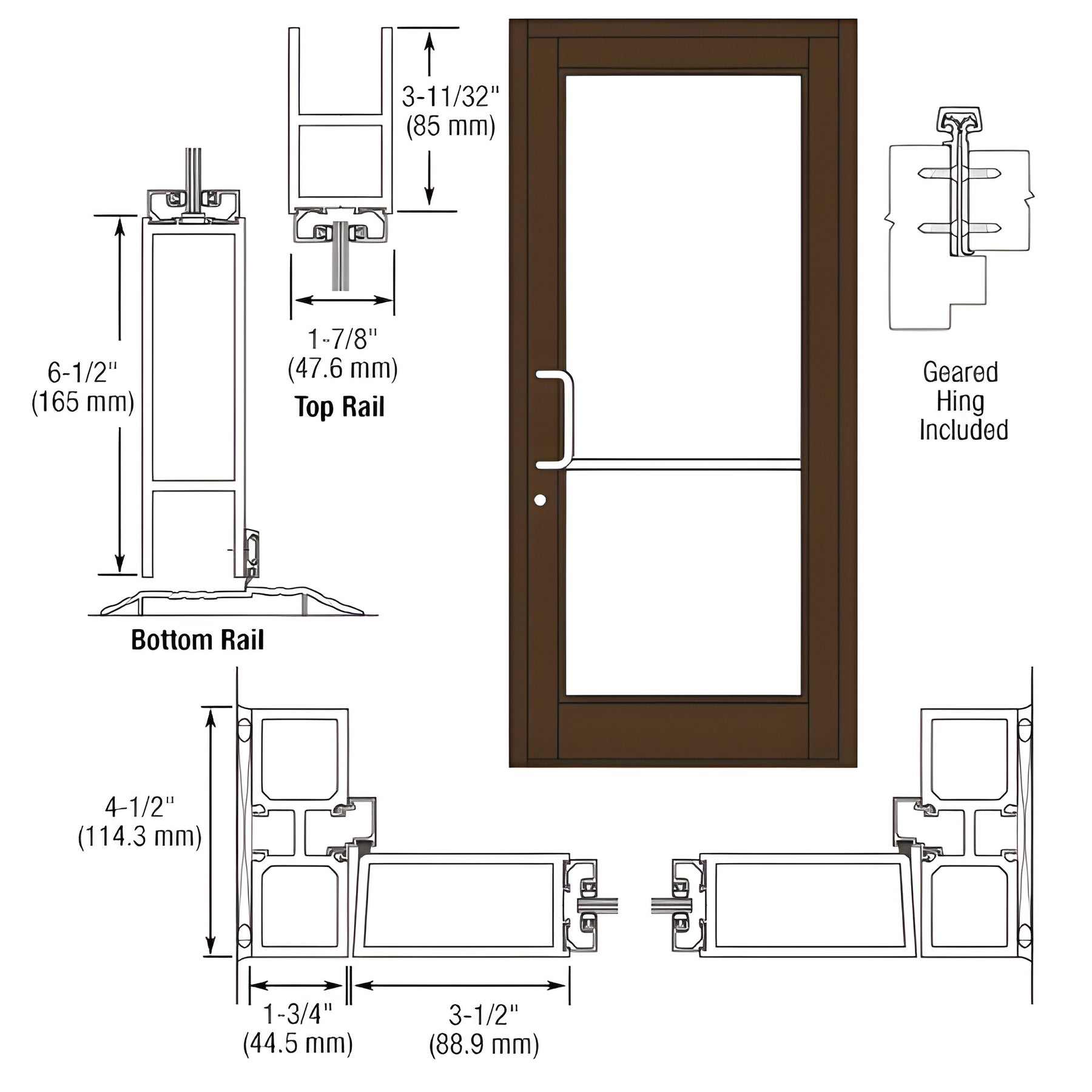

This Custom Durafront MS Entrance Door (SKU: DC81822) features 3-1/2" (89 mm) stiles, a 3-11/32" (85 mm) top rail, and a 6-1/2" (165 mm) bottom rail. Designed for commercial entrance use, the door ships with stiles prepared for Gear Hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass (glass supplied by others). The assembly is ready for custom fabrication to accommodate a wide range of optional entrance door hardware and commercial storefront applications.

Included protruding hardware (handles, pivots, etc.) is boxed separately to prevent transit damage and must be installed by the customer. Note: door widths under 36" (914 mm) may not meet A.D.A. inspection requirements.

Key differentiators: commercial-grade Durafront construction, prepped for Gear Hinge hardware, includes keyed-alike cylinders and MS hookbolt lock for streamlined installation and security.

Order SKU DC81822 or contact sales for a quote and lead time.
