CRL-U.S. Aluminum Series 900 Butt-Hinged Terrace Door - Custom Paint
CRL-U.S. Aluminum Series 900 Butt-Hinged Terrace Door - Custom Paint
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# TD91588
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Paint
Overview

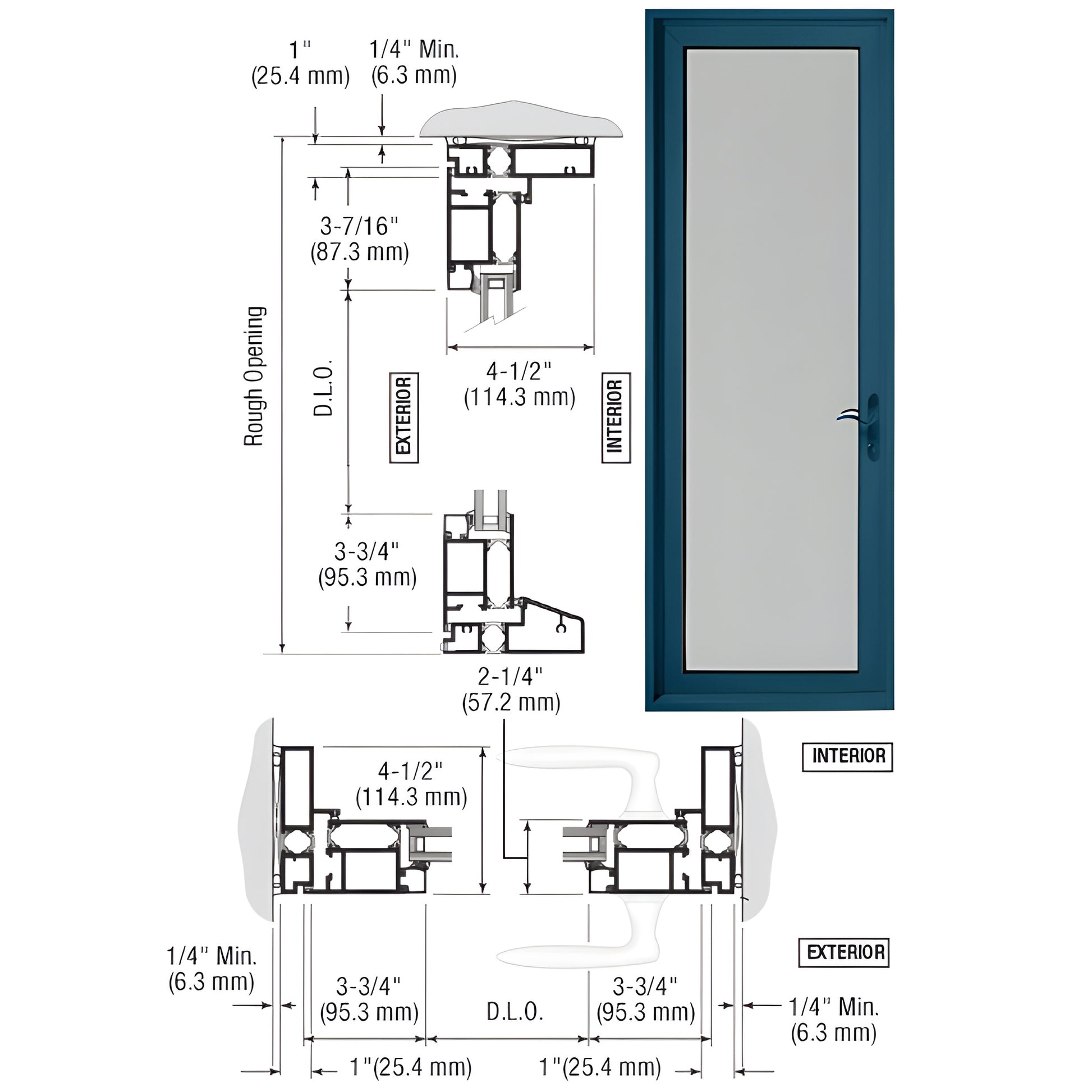

- Includes interior and exterior lever handles, hanging hardware, door holder, five-point lock, and two keyed-alike cylinders
- Accepts 1" (25 mm) tempered insulating unit (glass not included)
- 3-3/4" (95 mm) bottom rail
- 2-1/4" (57 mm) thick thermally broken door with 1" (25 mm) x 4-1/2" (114 mm) thermally broken frame
- Door and frame are assembled together as a single unit for faster installation
This Custom Medium Stile Entrance Door (SKU: TD91588) features 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, and 3.75" (95 mm) bottom rail. Standard construction includes stiles for butt hinge hardware and glass stops sized for 1/4" (6 mm) tempered glass supplied by others. Key differentiators: thermally broken door and frame for improved thermal performance, pre-assembled unit for easier installation, and security-enhancing five-point lock with keyed-alike cylinders.
Contact U.S. Aluminum Technical Sales for custom hardware requirements. Note: door widths under 36" (0.9 m) may not meet A.D.A. inspection requirements.
Ready to specify this thermally broken custom entrance door? Contact U.S. Aluminum Technical Sales to get started.
Specifications
BIM Objects - rvt
