CRL-U.S. Aluminum Series 900 Butt-Hinged Terrace Door w/ Surface Closer
CRL-U.S. Aluminum Series 900 Butt-Hinged Terrace Door w/ Surface Closer
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# TD91511
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Clear Anodized Class 1

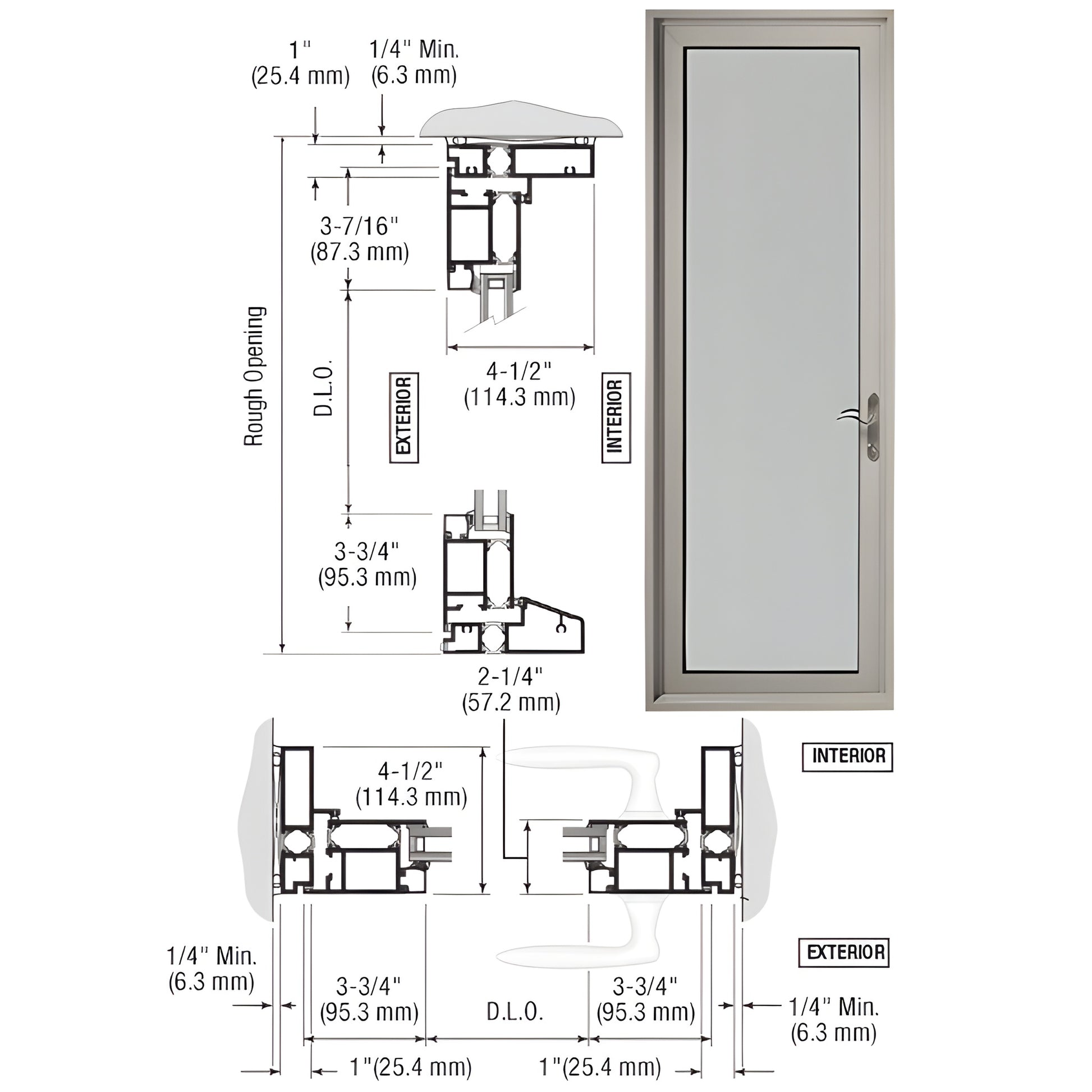

Overview
- Includes interior and exterior lever handles, hanging hardware, door holder, five-point lock, and two keyed-alike cylinders
- Accepts 1" (25 mm) tempered insulating unit (glass not included)
- 3-3/4" (95 mm) bottom rail
- 2-1/4" (57 mm) thick thermally broken door with 1" (25 mm) x 4-1/2" (114 mm) thermally broken frame
- Door and frame are assembled together as a single unit for faster installation
This CRL Custom Medium Stile Entrance Door (SKU: TD91511) is a thermally broken commercial entrance door built with 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, and 3.75" (95 mm) bottom rail. Standard features include stiles for butt hinge hardware, glass stops sized for 1" (25 mm) tempered insulating glass (by others), and all standard hardware and fabrication. Key differentiators: thermally broken door and frame, five-point lock, two keyed-alike cylinders, and pre-assembled door/frame unit—ideal for commercial storefronts and energy-conscious retrofit projects.
Contact U.S. Aluminum Technical Sales for custom hardware requirements. Note: door widths less than 36" (0.9 m) may not pass A.D.A. inspection.
Specifications
BIM Objects - rvt
