CRL-U.S. Aluminum Series 900 Butt-Hinged Terrace Doors, Kynar Finish
CRL-U.S. Aluminum Series 900 Butt-Hinged Terrace Doors, Kynar Finish
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# TD92571
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pair
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Custom Kynar
Overview
- Accepts 1" (25 mm) tempered insulating unit (glass not included)
- Includes active and inactive leaf with all standard hardware (handles/pivots boxed separately)
- 3-3/4" (95 mm) bottom rail

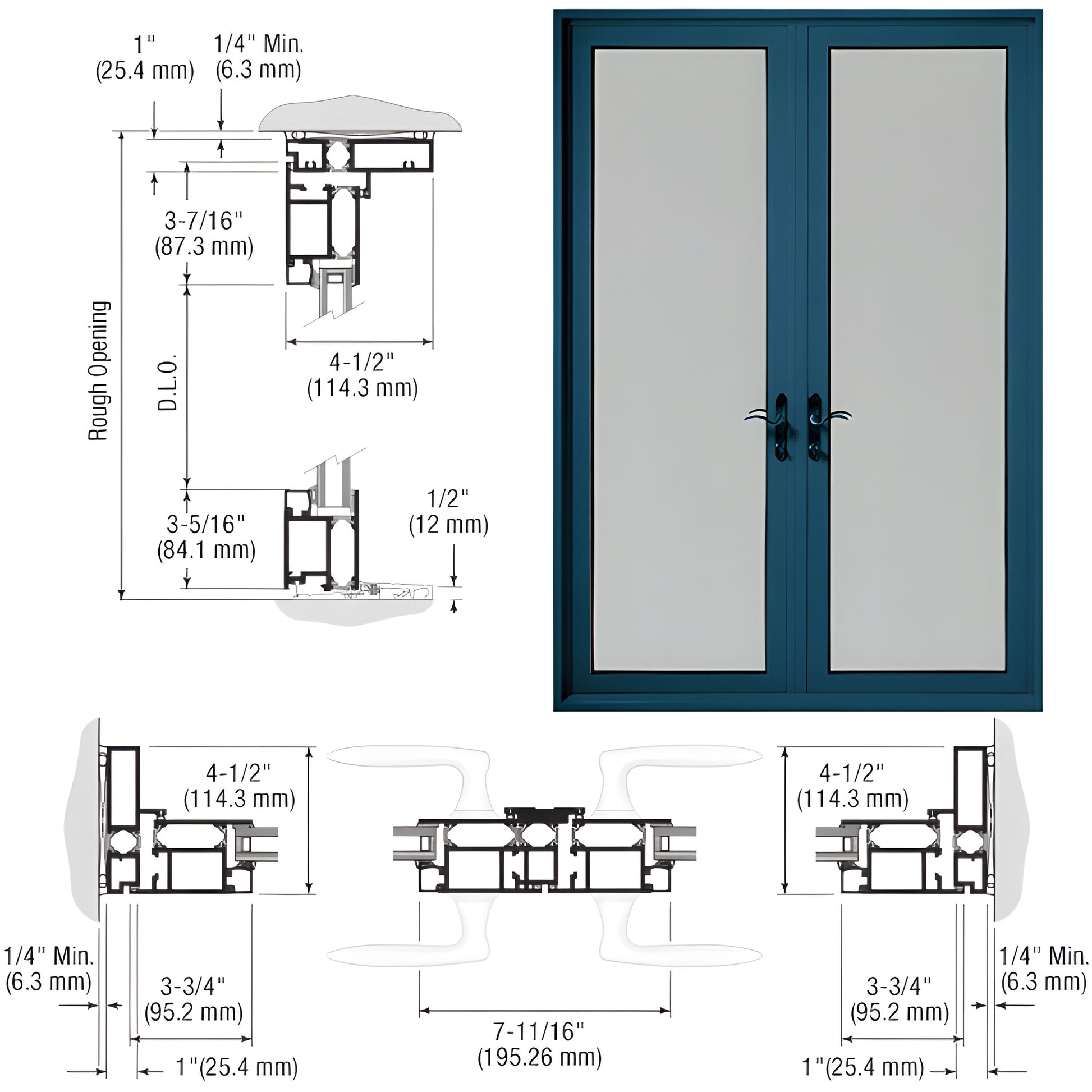

- 2-1/4" (57 mm) thick thermally broken door; 1" (25 mm) x 4-1/2" (114 mm) thermally broken frame
Custom Medium Stile Entrance Door (SKU: TD92571) — Thermally broken aluminum construction for improved energy performance. Built with 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, and 3.75" (95 mm) bottom rail. Standard preparations include stiles for butt hinge hardware and glass stops to accept 1" (25 mm) insulated glass units (glass by others). Designed for easy custom fabrication and a wide range of optional hardware applications.
Hardware such as handles and pivots are shipped boxed separately to prevent transit damage and must be installed by the customer.
Order the TD92571 custom thermally broken entrance door today—contact CRL Customer Service to confirm glass options and shipping details.
Specifications
BIM Objects - rvt
