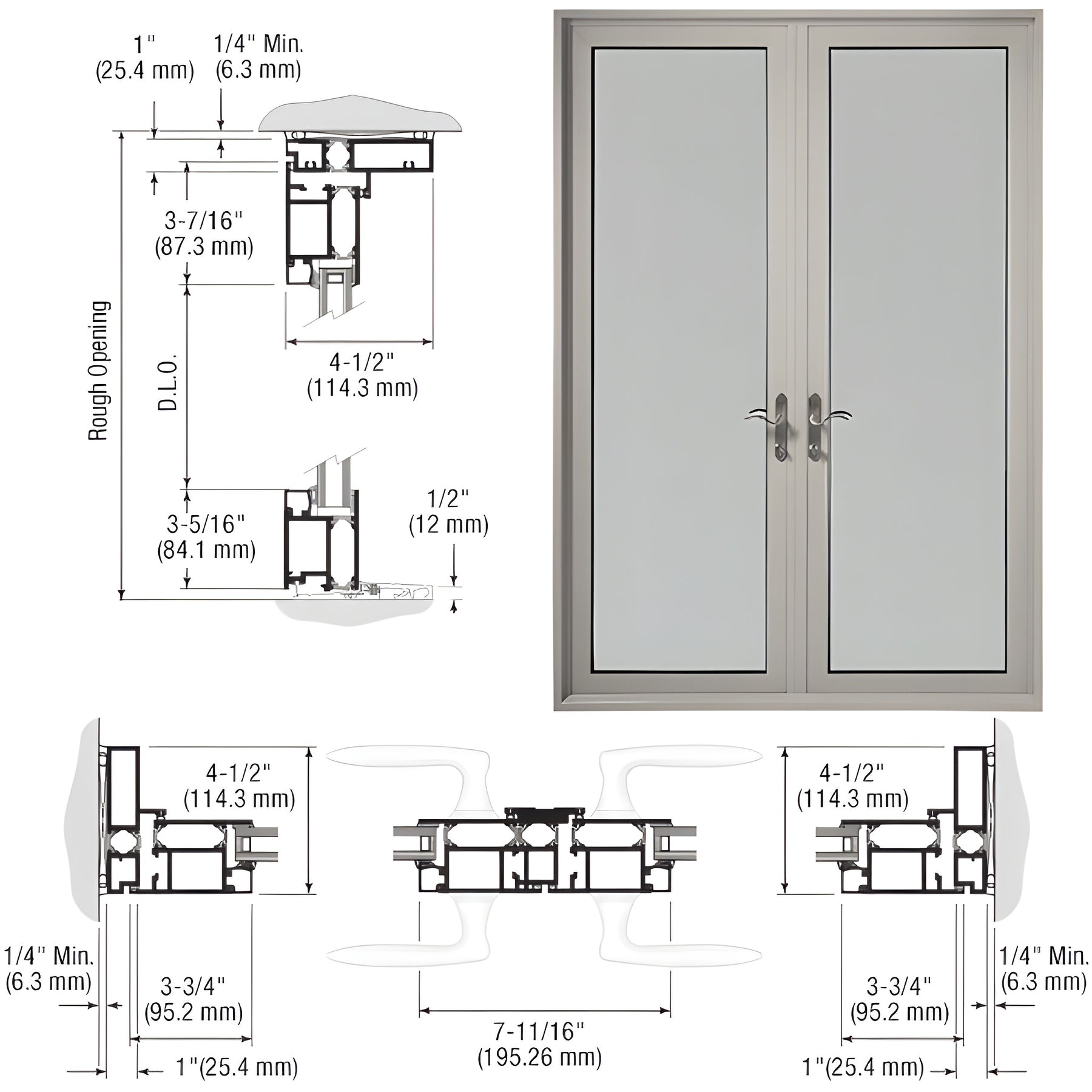

CRL-U.S. Aluminum Clear Anodized Custom Pair Series 900 Butt Hinged Terrace Doors for Surface Mount Door Closers

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUTD92511
Pack Size1
Finish/Color:Clear Anodized Class 1

Description

Product Details

  • Includes Active and Inactive Leaf with All Standard Hardware
  • Accepts 1" (25 mm) Tempered Insulating Unit (Glass Not Included)
  • 3-3/4" (95 mm) Bottom Rail
  • 2-1/4" (57 mm) Thick Thermally Broken Door 1" (25 mm) x 4-1/2" (114 mm) Thermally Broken Frame

This Custom Medium Stile Entrance Door is built with 3.75" (95 mm) Stiles, 3.75" (95 mm) Top Rail, and 3.75" (95 mm) Bottom Rail. Standard features include stiles for Butt Hinge hardware, glass stops for 1/4" (6 mm) tempered glass (by others), ready for custom fabrication for a wide range of optional hardware applications.

Customer must install included protruding hardware (handles, pivots, etc.) that is boxed separately to prevent damage in transit.

Specifications

Technical Resources

Brochures & Literature

Installation Instructions

BIM Objects - rvt

BIM Objects - pdf

Quote Request Forms

Specifications

CAD Drawings - pdf

CAD Drawings - dwg

Engineering & Test Reports

Glazing Charts

Numbering Keys
