Description
Finish/Color
Custom Kynar
Overview
- 1" x 4-1/2" transom frame
- Accepts 1" (25 mm) insulating glass
- Thermally broken door and transom frame for improved energy efficiency
- Five-point locking device for enhanced security
- Standard bottom rail and threshold for swing-out applications

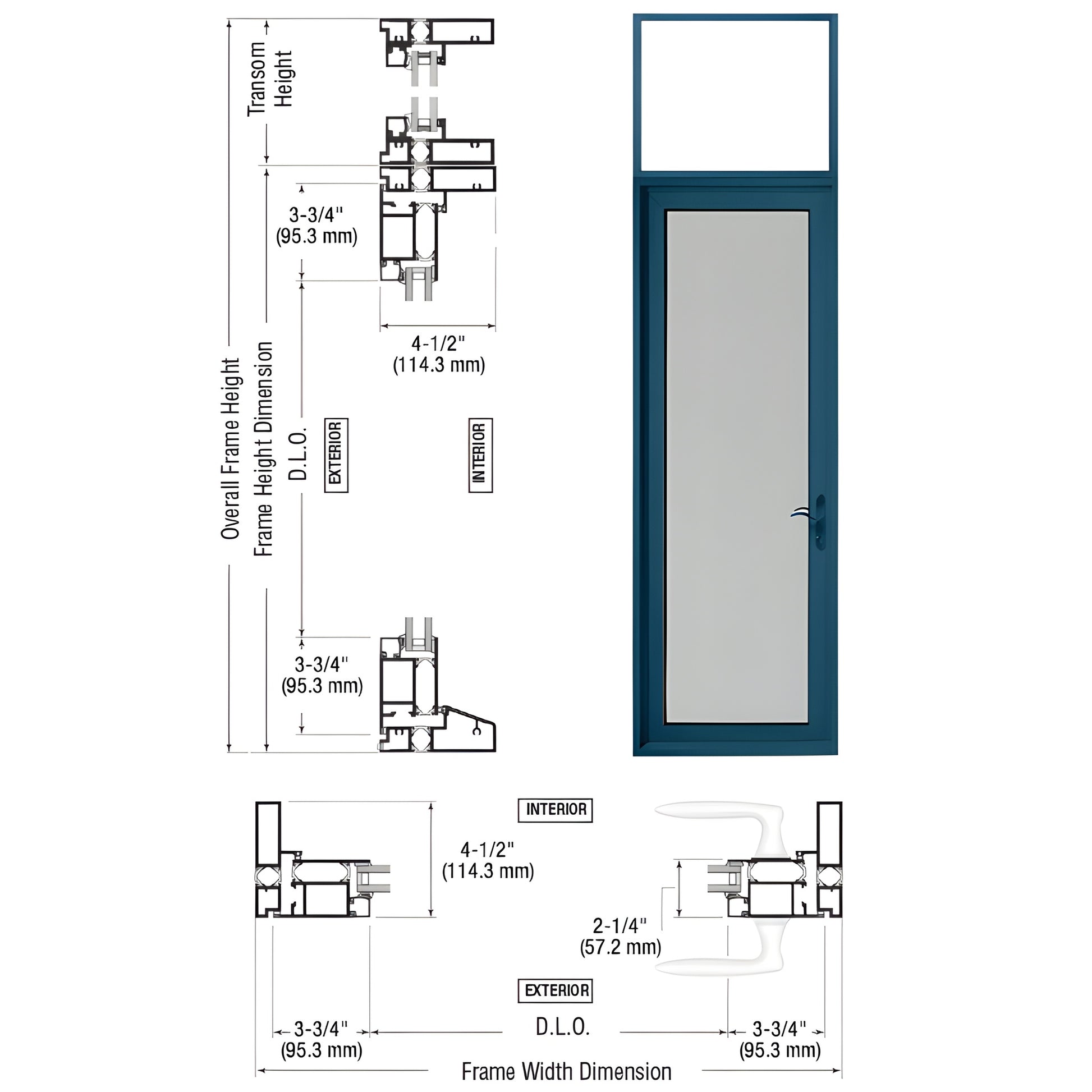

This CRL Series 900 Terrace Door Single Hinge Right Swing Out Transom features a 1" x 4-1/2" frame, 2-1/4" thick door, 3.75" stiles, 3.75" top rail, 3-3/4" bottom rail, and a standard threshold. Designed for swing-out right-hand applications, it includes stiles for butt-hinge hardware and glass stops that accept 1" tempered insulating glass (glass supplied by others), plus five-point locking hardware for commercial-grade security. SKU: TND91571R0.
Specifications
BIM Objects - rvt
