CRL-U.S. Aluminum Series 900 White KYNAR® Butt-Hinged Terrace Door

CRL-U.S. Aluminum Series 900 White KYNAR® Butt-Hinged Terrace Door

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# TD91552
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

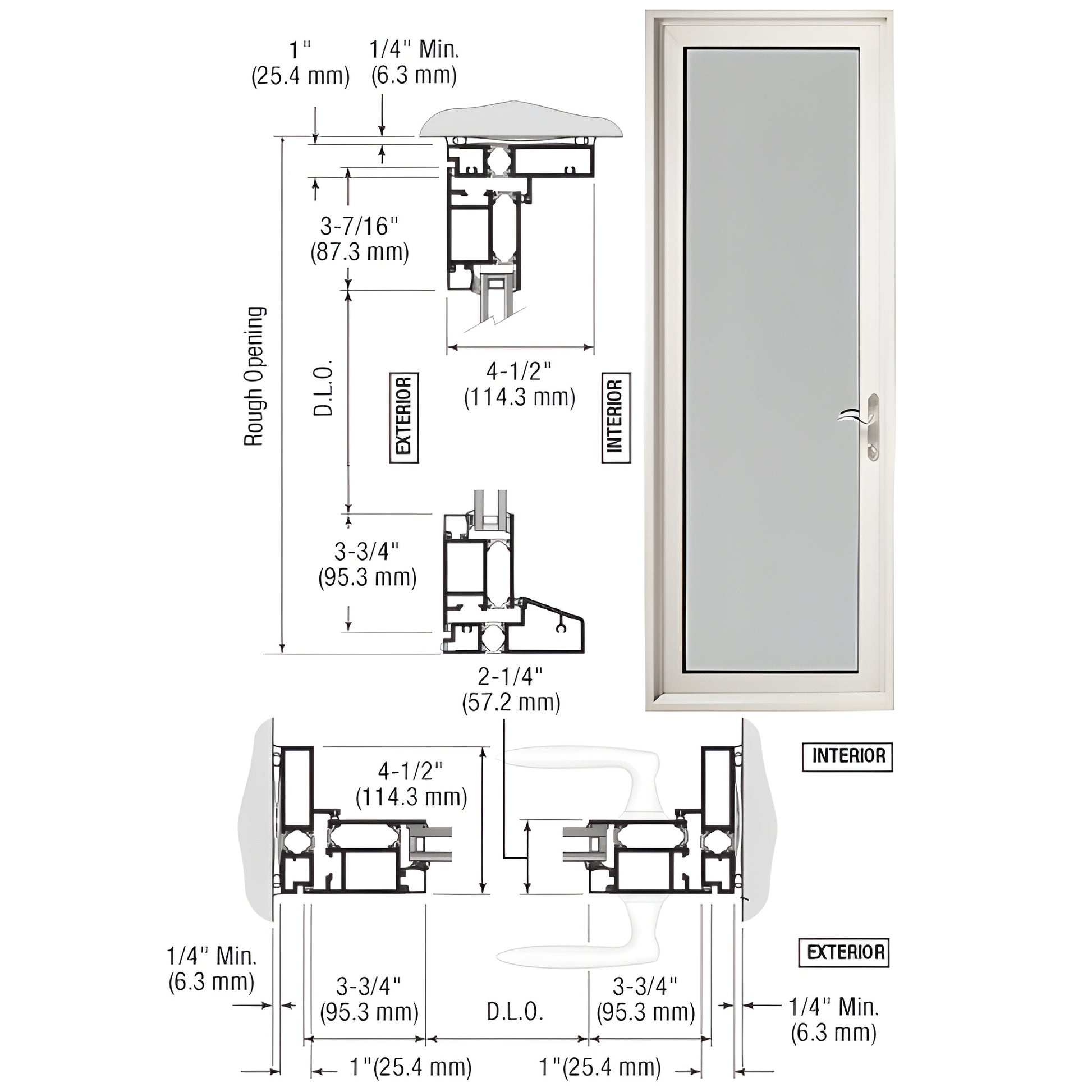

  • Includes interior and exterior lever handles, hanging hardware, door holder, five-point lock, and two keyed-alike cylinders
  • Accepts 1" (25 mm) tempered insulating unit (glass not included)
  • 3-3/4" (95 mm) bottom rail
  • 2-1/4" (57 mm) thick thermally broken door with 1" (25 mm) x 4-1/2" (114 mm) thermally broken frame
  • Door and frame are assembled together as a single unit for simplified install

Custom Medium Stile Entrance Door (SKU: TD91552) — Built with 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, and 3.75" (95 mm) bottom rail. Standard features include stiles for butt hinge hardware and glass stops for 1/4" (6 mm) tempered glass (by others). This thermally broken commercial entrance door combines energy-efficient framing with heavy-duty hardware for storefronts and institutional applications.

Contact U.S. Aluminum Technical Sales for custom hardware requirements. Note: door widths less than 36" (0.9 m) may not pass A.D.A. inspection.

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor.

For pricing, lead times, or to specify custom options for this thermally broken medium stile entrance door (TD91552), contact our sales team today.

Specifications

BIM Objects - rvt
Series 900 Terrace BIM.rvt
