CRL-U.S. Aluminum Series 900 White KYNAR® Transom Hinge Right-Swing

CRL-U.S. Aluminum Series 900 White KYNAR® Transom Hinge Right-Swing

$4,804.91 CAD
$4,804.91 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# TND91552R0
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • 1" x 4-1/2" (25 x 144 mm) Transom Frame
  • Accepts 1" (25 mm) insulating glass
  • Thermally broken door and transom frame for improved thermal performance
  • Five-point locking device for enhanced security
  • Standard bottom rail and threshold for right swing-out terrace applications

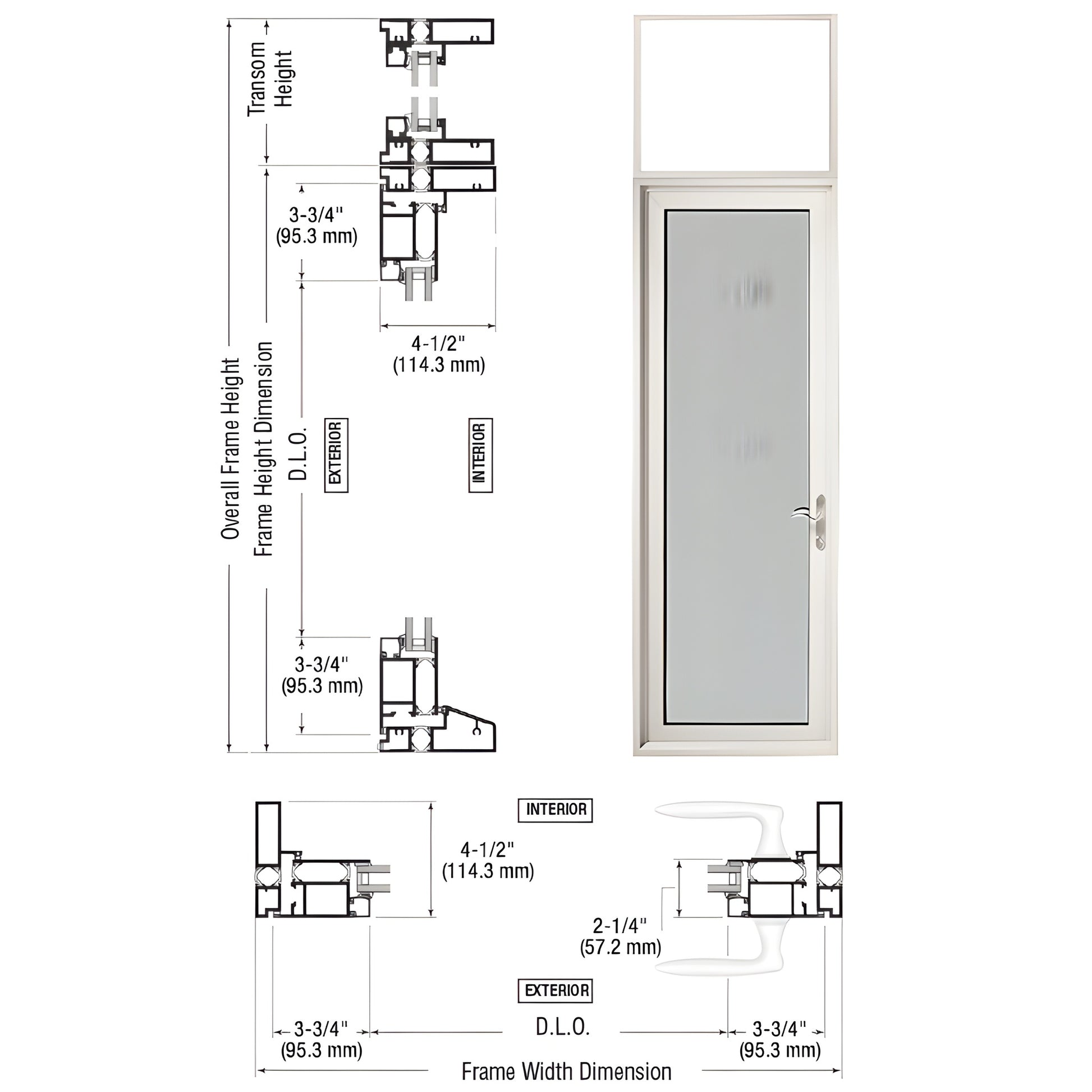

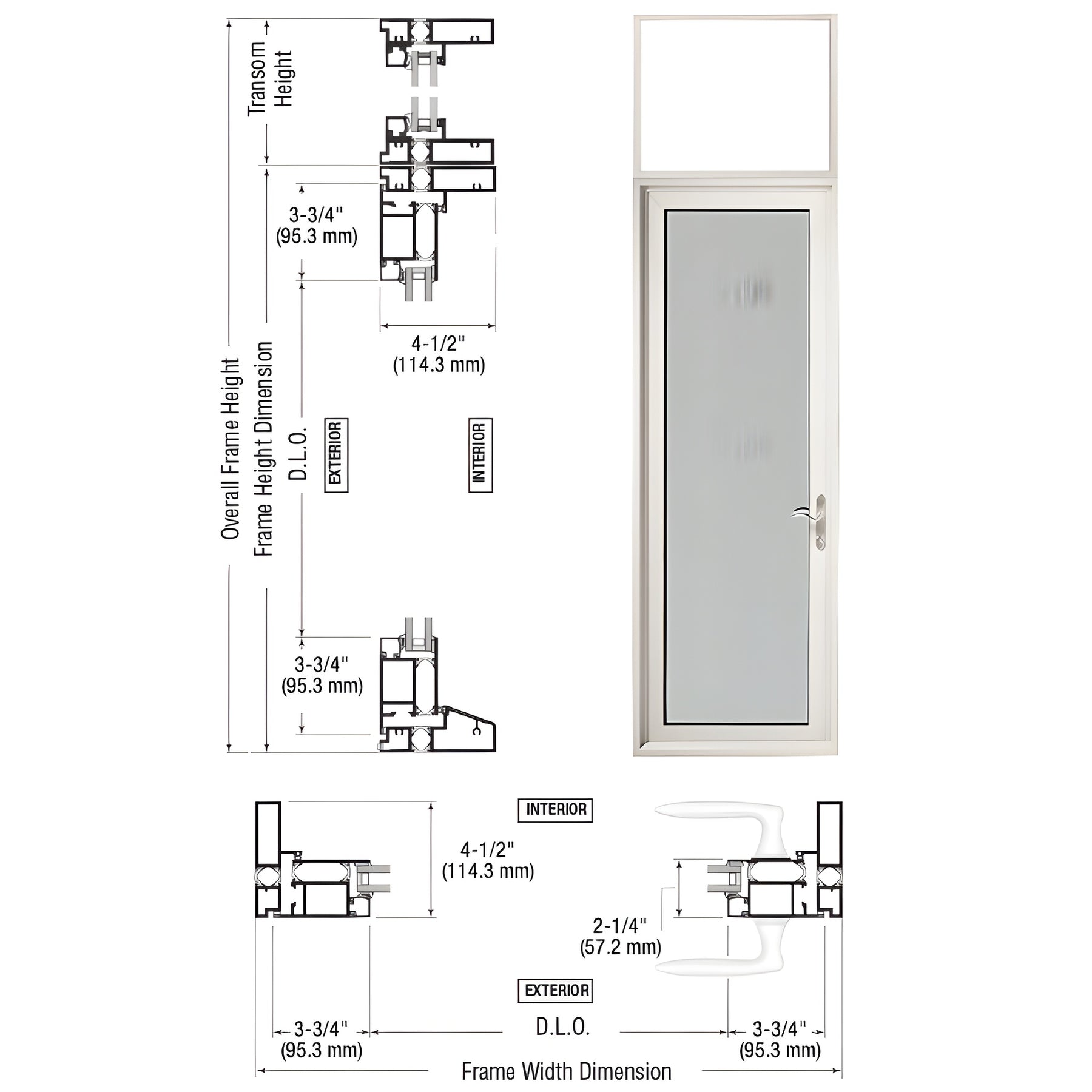

This CRL Series 900 Terrace Door Single Hinge Right Swing Out Transom (SKU: TND91552R0) features a 1" x 4-1/2" (25 x 114.3 mm) frame, 2-1/4" (57.2 mm) thick door, 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, 3-3/4" (95 mm) bottom rail, and a standard threshold. Standard details include stiles for butt hinge hardware, glass stops sized for 1" (25 mm) tempered or insulating glass (by others), and five-point locking hardware—ideal for energy-efficient, secure terrace door installations.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.


Order or request a quote for SKU TND91552R0 today.

Specifications

BIM Objects - rvt
Series 900 Terrace BIM.rvt
