• White Kynar outswing patio door with transom, 1" insulating glass, thermally broken frame, five point lock - SKU PNA91552R0
1 1

CRL

CRL-U.S. Aluminum Series 925 White KYNAR® Single Transom Patio Door Hinge Right

CRL-U.S. Aluminum Series 925 White KYNAR® Single Transom Patio Door Hinge Right

$5,050.54 CAD
$5,050.54 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PNA91552R0
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
White Kynar

Overview

  • 1" x 4-1/2" (25 x 144 mm) Butt Hinge Frame
  • Accepts 1" (25 mm) insulating glass
  • Thermally broken door and frame for improved energy efficiency
  • Five-point locking device for enhanced security
  • 10" bottom rail and low-profile threshold for outswing applications

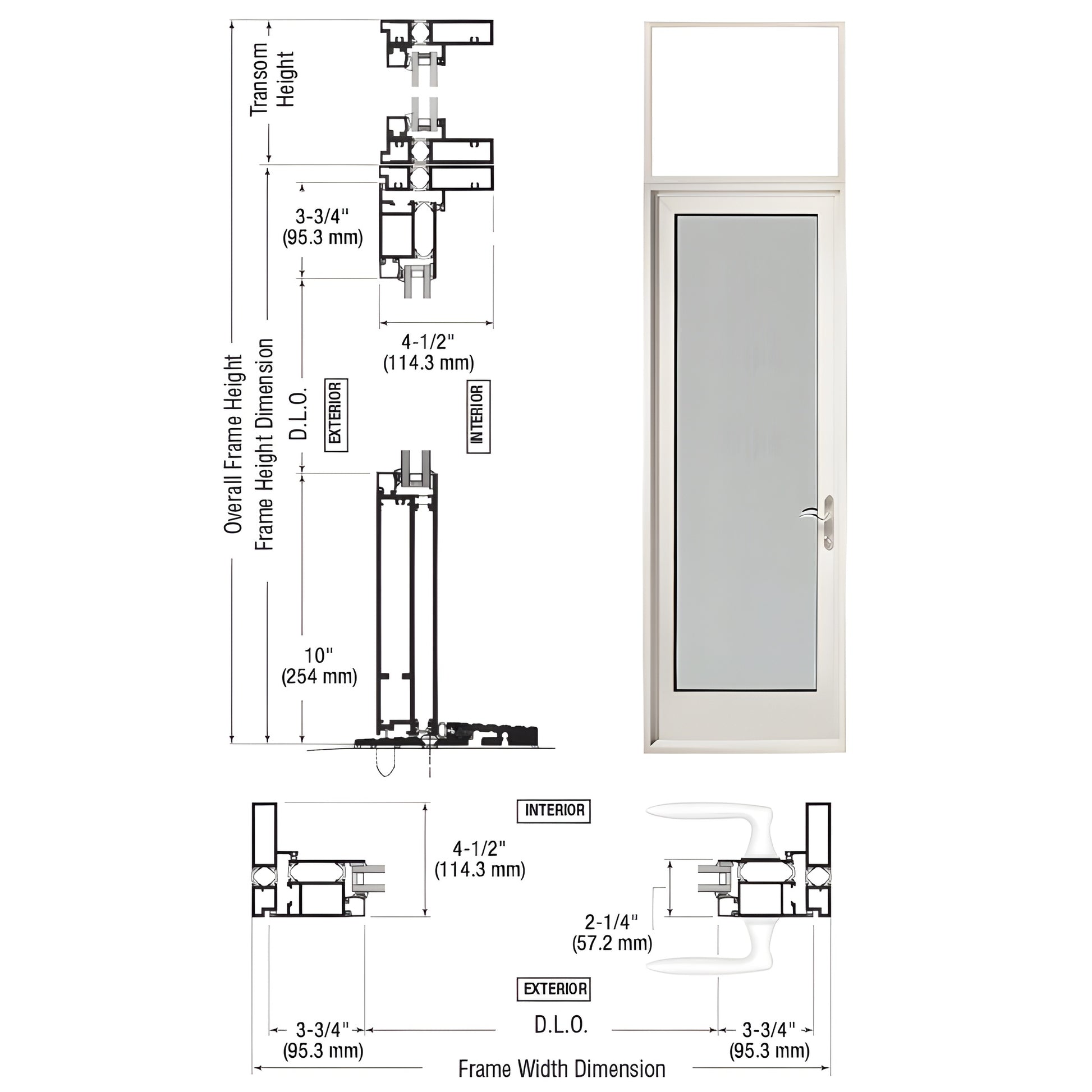

This CRL Series 925 Single Patio Entrance features a 1" x 4-1/2" (25 x 114.3 mm) transom frame, 2-1/4" (57.2 mm) thick door, 3.75" (95 mm) stiles, 3.75" (95 mm) top rail, 10" (254 mm) bottom rail, and a low-profile threshold. Standard inclusions: stiles prepped for butt hinge hardware, glass stops accepting 1" (25 mm) tempered insulating glass (by others), and five-point locking hardware. Ideal for commercial and high-performance residential applications requiring thermally broken patio entrance doors with insulating glass and secure multi-point locking.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

SKU: PNA91552R0 — Order the CRL Series 925 Single Patio Entrance for a thermally broken, secure outswing patio door with low-profile threshold. Contact CRL to confirm glass and hardware requirements.
