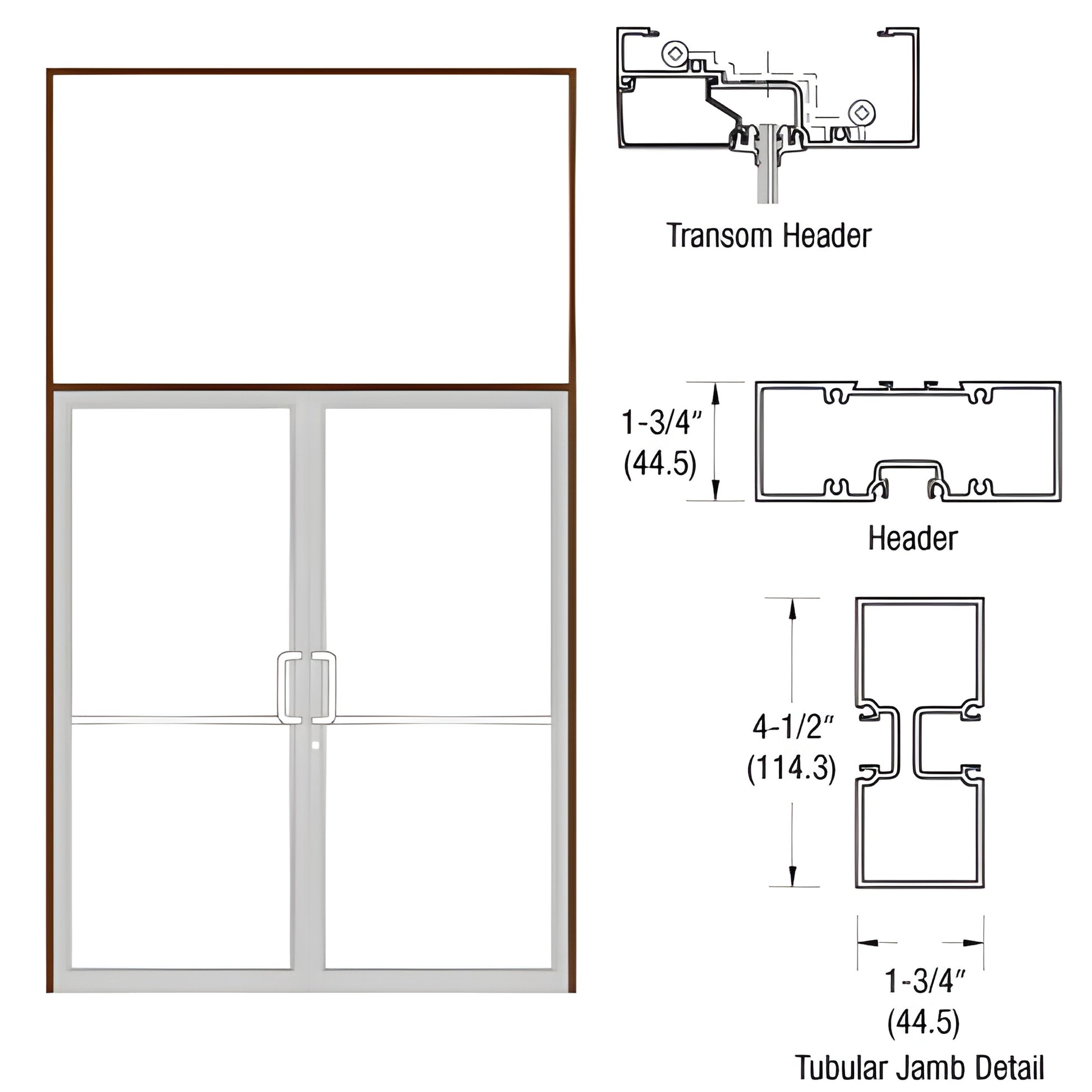

• Double-door aluminum frame with transom, black bronze anodized finish, 75-1/2" x 126" overall; SKU FZ6252272
1 1

CRL

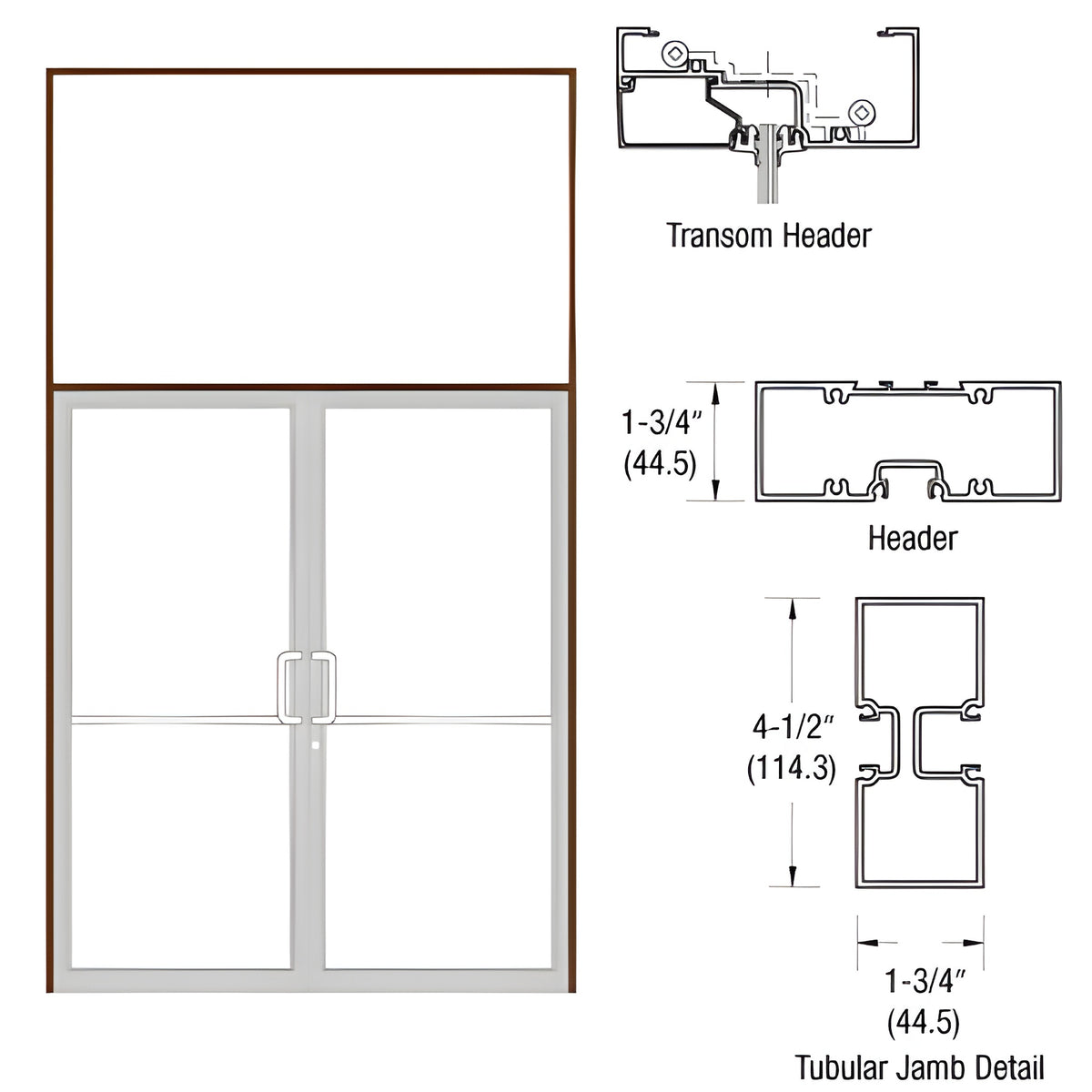

CRL-U.S. Aluminum Series450 Tubular Butt Hinge 75.5x126 Black Anodized

CRL-U.S. Aluminum Series450 Tubular Butt Hinge 75.5x126 Black Anodized

$947.94 CAD
$947.94 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# FZ6252272
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Black Bronze Anodized Class 1

Overview

  • 75-1/2" x 126" (1.9 x 3.2 m) base frame size (outside dimensions)
  • 72" x 84" (1.8 x 2.1 m) door opening
  • Aluminum threshold is included

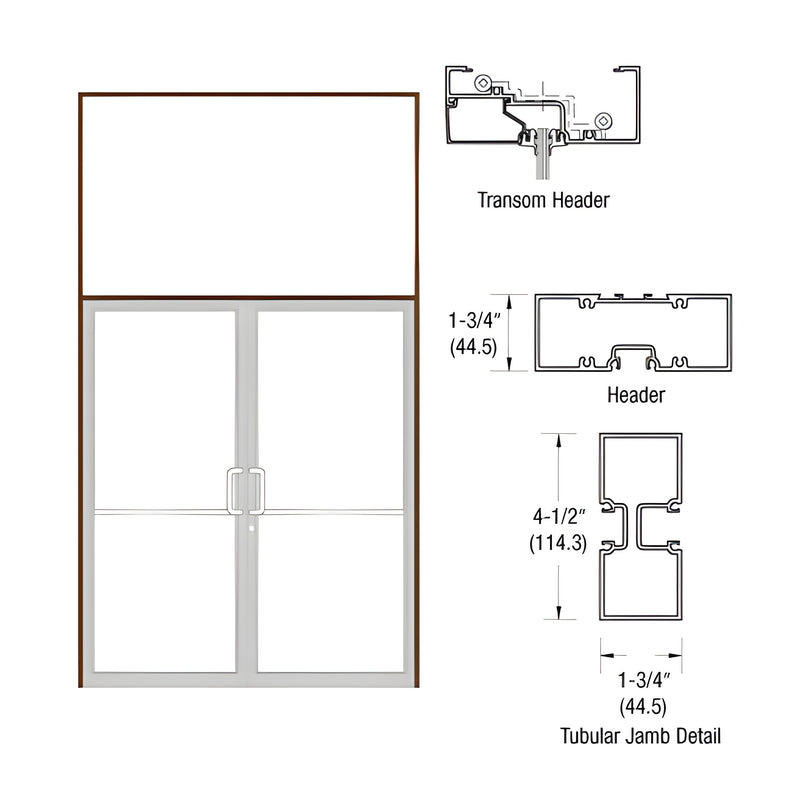

  • 1-3/4" x 4-1/2" (44.5 x 114.3 mm) butt hinge transom frame with tubular jambs

Complete Frame — Engineered for a 72" x 84" butt hinge concealed vertical rod panic door with surface mount closer. Constructed using 1S456 tubular jambs and 1S467 header; includes all associated extrusions, weatherstrip, standard hardware, and hardware preparations for easy installation.

All assembly fasteners, standard hardware, and hardware fabrication are included. Customer supplies fasteners to anchor the frame to the opening. No modifications are offered on standard frames. SKU: FZ6252272.

Shipping weights are approximate. If you require an exact shipping weight to calculate freight, contact CRL Customer Service before ordering. Product images represent the actual product or a close representation; colors may vary by monitor settings.


Order SKU FZ6252272 today to secure this heavy-duty butt hinge concealed vertical rod panic door frame with included aluminum threshold.
