CRL-U.S. Aluminum StormWall XL Mill Finish Left Shear Block Used with Stacked Horizontal Corner Mullion

CRL-U.S. Aluminum StormWall XL Mill Finish Left Shear Block Used with Stacked Horizontal Corner Mullion

Buy More, Save More!

Product quantity	Discount
Buy 3	2% off
Buy 5	4% off
Buy 10	6% off
Buy 15	8% off
Buy 20	10% off

Overview

SKU	XLB18003
Pack Size	1
Finish/Color:	Mill

Description

Product Details

Packed 20 Per Box
Mill Finish
Used with XL53611 Stacked Horizontal Corner Mullion

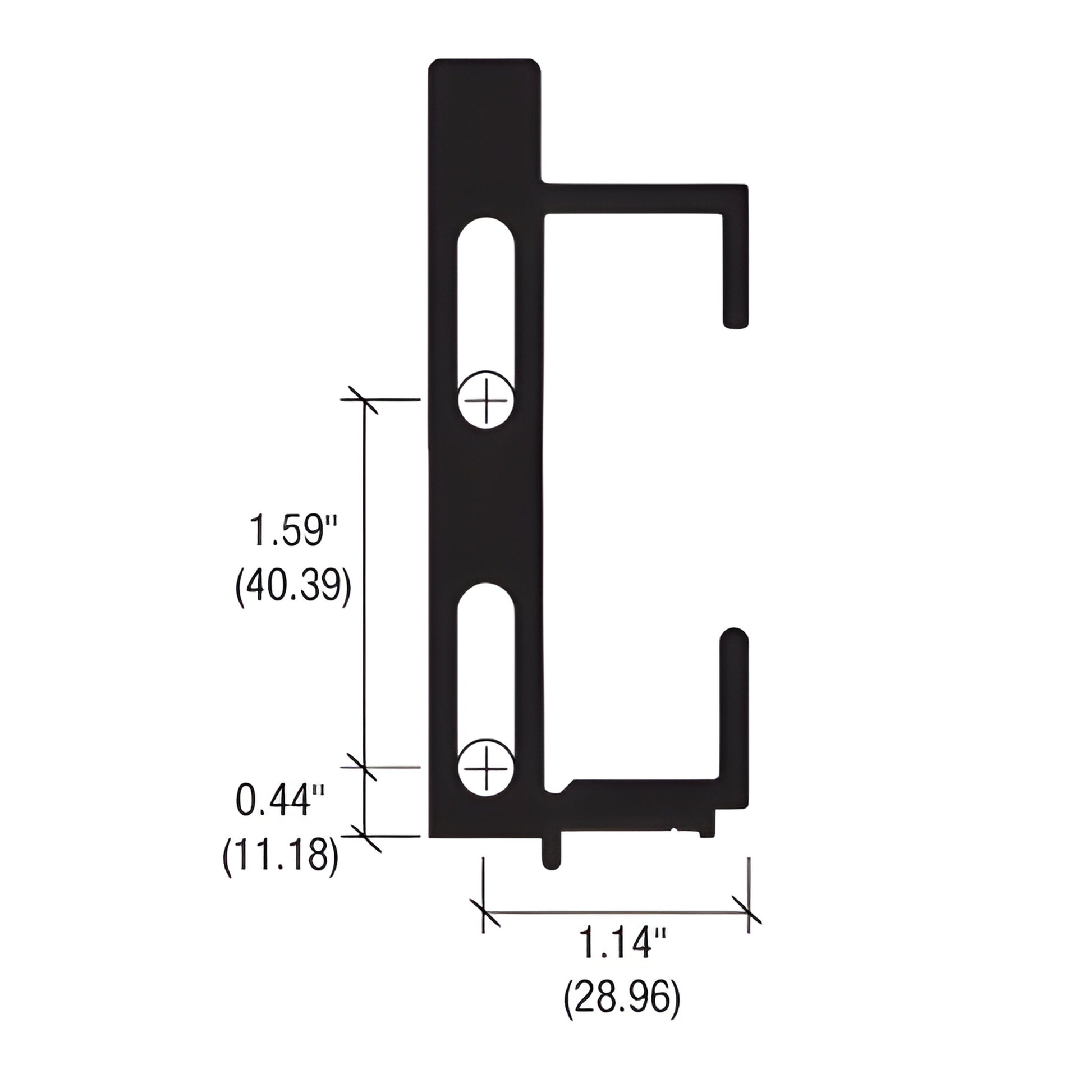

Left Shear Block is used for 90º Stacked Horizontal Corner Mullions to attach horizontal to vertical joinery. Mill finish Shear Blocks are sold 20 per box.

Specifications

Technical Resources

Brochures & Literature

Institutional Project Case StudiesOpen PDF ↗

StormWall XL Product InformationOpen PDF ↗

USAL14 The Storefront Store CatalogOpen PDF ↗

USAL15 Curtain Walls CatalogOpen PDF ↗

Installation Instructions

StormWall XL Installation InstructionsOpen PDF ↗

Specifications

StormWall XL Hurricane-Resistant Curtain Wall System 3 Part-SpecOpen PDF ↗

CAD Drawings - pdf

StormWall XL Hurricane-Resistant Curtain Wall System CAD Drawings.pdfOpen PDF ↗

CAD Drawings - dwg

StormWall XL Hurricane-Resistant Curtain Wall System CAD Drawings.dwgOpen DWG ↗

Engineering & Test Reports

StormWall XL - SSG Twin Span - Air Water Structural Impact - CCLI 11-238Open PDF ↗

StormWall XL - Single Span - Air Water Structural Impact - A8744.04-801-18Open PDF ↗

StormWall XL - Thermal Performance - AAMA 1503 - Clear - C2681.02-116-46Open PDF ↗

StormWall XL - Thermal Performance - AAMA 1503 - Low E - C2682.04-116-46Open PDF ↗

StormWall XL - Thermal Performance - AAMA 507 - C2680.05-116-45Open PDF ↗

StormWall XL - Thermal Performance - NFRC 102 - C2682.03-116-46Open PDF ↗

StormWall XL - Thermal Performance - NFRC Simulations - C2680.06-116-45Open PDF ↗

StormWall XL - Twin Span - Air Water Structural Impact - CCLI 11-226Open PDF ↗
